629-17W Series
Manufacturer: EDAC Inc.
Beta
⌘K

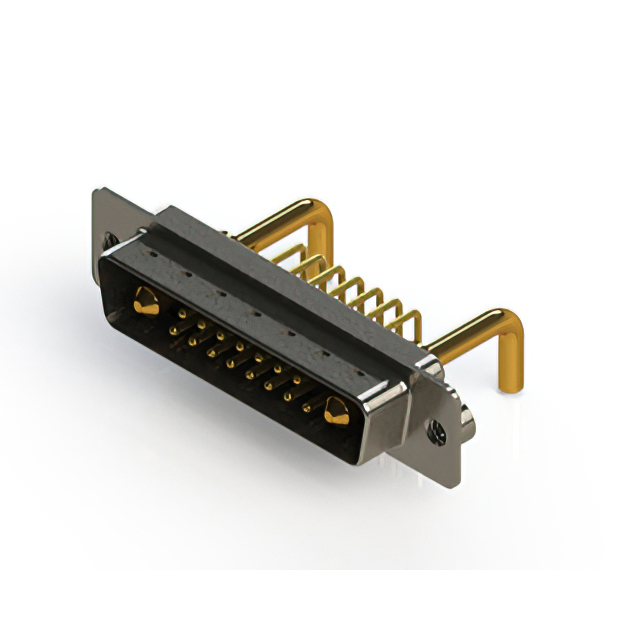

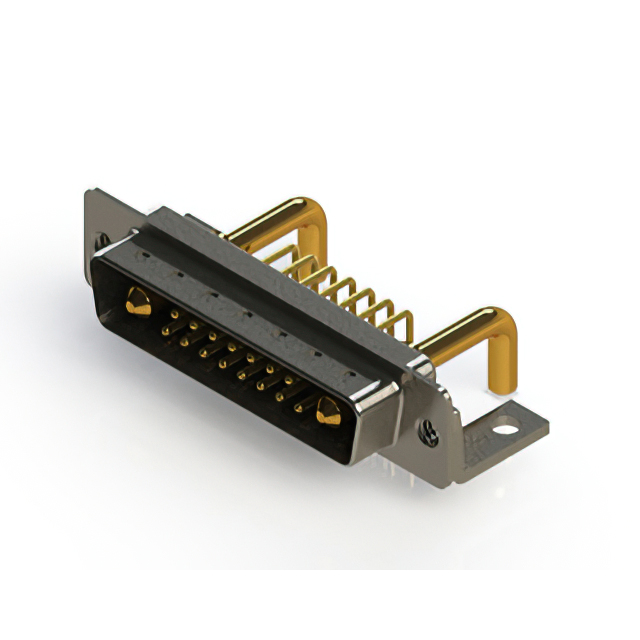

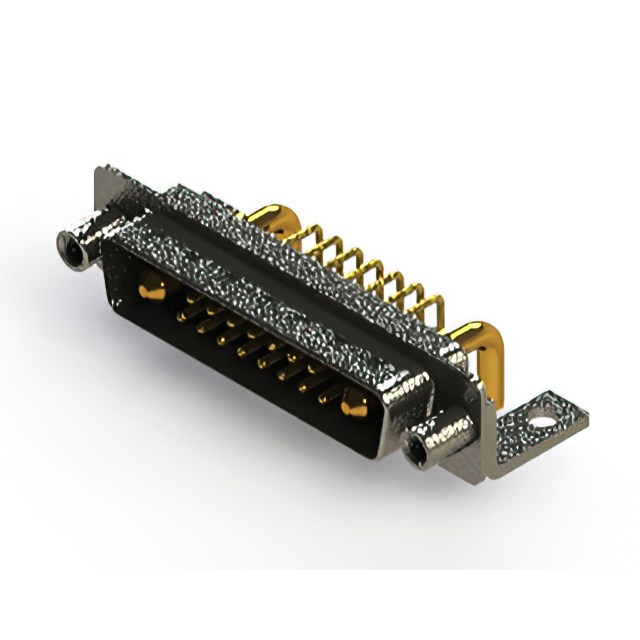

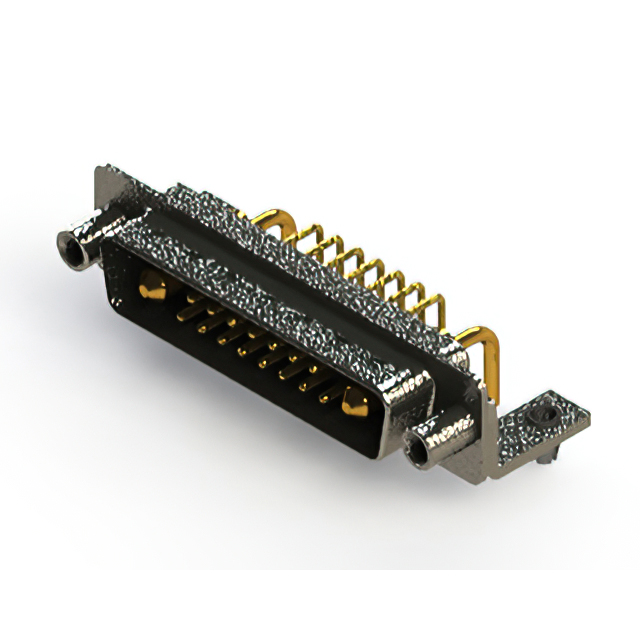

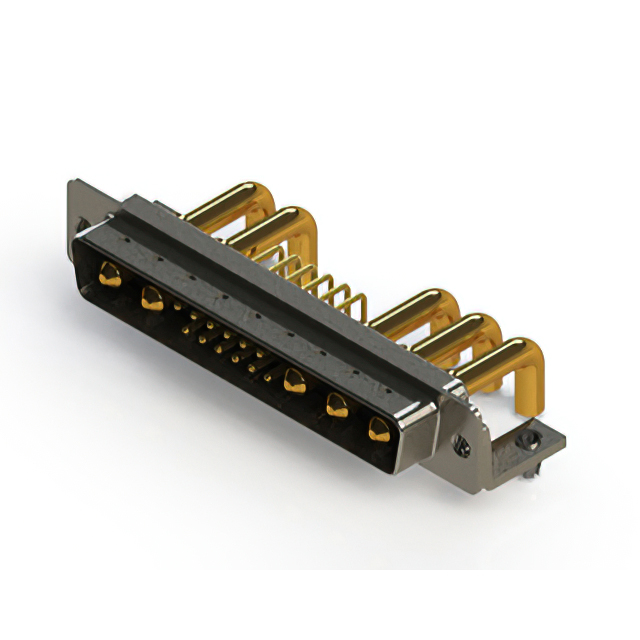

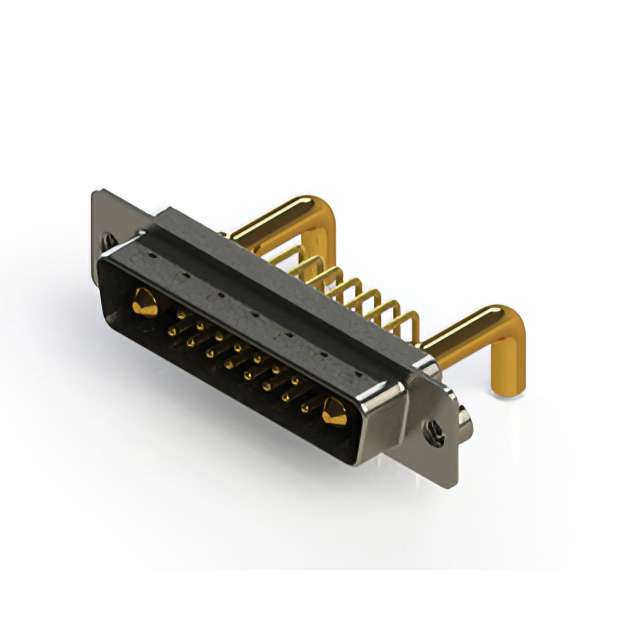

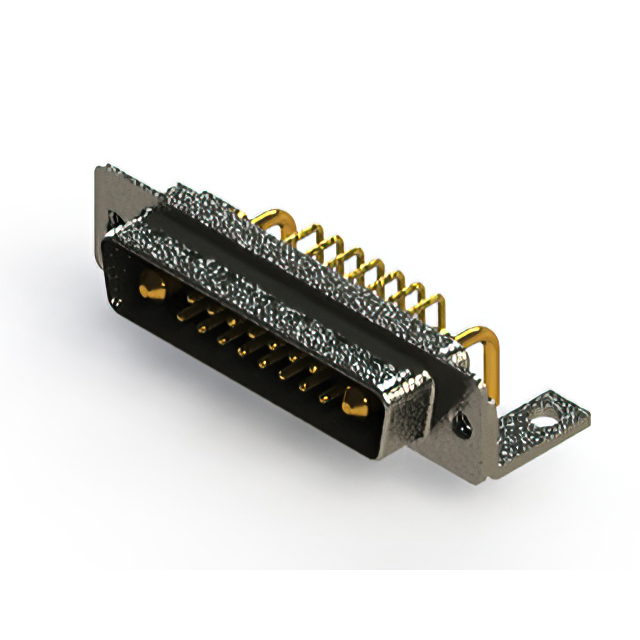

CONN D-SUB PLUG 17POS R/A SLDR
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Connector Type | Contact Type | Shell Material, Finish | Number of Positions | Material Flammability Rating | Features | Contact Finish Thickness | Contact Finish Thickness | Backset Spacing | Backset Spacing | Mounting Type | Connector Style | Current Rating (Amps) | Termination | Contact Finish | Flange Feature | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 4-40 | B DB | 17W2 | 3 | 2 | Plug Male Pins | Signal and Power | Nickel Plated Steel | 17 | UL94 V-0 | Board Lock Grounding Indents | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | Right Angle Through Hole | Combo D-Sub | 20A 5A | Solder | Gold | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Housing/Shell | B DB | 17W2 | 3 | 2 | Plug Male Pins | Signal and Power | 17 | UL94 V-0 | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | Right Angle Through Hole | Combo D-Sub | 20A 5A | Solder | Gold | 4-40 | ||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Housing/Shell | B DB | 17W2 | 3 | 2 | Plug Male Pins | Signal and Power | Nickel Plated Steel | 17 | UL94 V-0 | Grounding Indents Mounting Brackets | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | Right Angle Through Hole | Combo D-Sub | Solder | Gold | 4-40 | 5 A 40 A | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | M3 | B DB | 17W2 | 3 | 2 | Plug Male Pins | Signal and Power | Nickel Plated Steel | 17 | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | Right Angle Through Hole | Combo D-Sub | 10A 5A | Solder | Gold | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Housing/Shell | DC C - 17W5 | 4 | 2 | Plug Male Pins | Signal and Power | Nickel Plated Steel | 17 | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | Right Angle Through Hole | Combo D-Sub | Solder | Gold | 4-40 | 5 A 40 A | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 4-40 | DC C - 17W5 | 4 | 2 | Plug Male Pins | Signal and Power | 17 | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | 9.4 mm | 0.37 in | Right Angle Through Hole | Combo D-Sub | 10A 5A | Solder | Gold | Flash | ||||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Housing/Shell | B DB | 17W2 | 3 | 2 | Plug Male Pins | Signal and Power | 17 | UL94 V-0 | Grounding Indents Mounting Brackets | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | Right Angle Through Hole | Combo D-Sub | 10A 5A | Solder | Gold | 4-40 | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Housing/Shell (M3) | B DB | 17W2 | 3 | 2 | Plug Male Pins | Signal and Power | Nickel Plated Steel | 17 | UL94 V-0 | Grounding Indents Mounting Brackets | 9.4 mm | 0.37 in | Right Angle Through Hole | Combo D-Sub | Solder | Gold | 5 A 30 A | Flash | ||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | 4-40 | DC C - 17W5 | 4 | 2 | Plug Male Pins | Signal and Power | Nickel Plated Steel | 17 | UL94 V-0 | Board Lock Grounding Indents | 30 Áin | 0.76 Ám | 9.4 mm | 0.37 in | Right Angle Through Hole | Combo D-Sub | Solder | Gold | 5 A 40 A | ||||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 125 VDC | Board Side (M3) | B DB | 17W2 | 3 | 2 | Plug Male Pins | Signal and Power | 17 | UL94 V-0 | Grounding Indents | 9.4 mm | 0.37 in | Right Angle Through Hole | Combo D-Sub | Solder | Gold | 5 A 40 A | Flash |
