09KR105 Series
Manufacturer: Rosenberger
Beta
⌘K
PRECISION 2.40 TESTPORT ADAPTER
| Part | Dielectric Material | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Mating Cycles | Center Contact Material | Adapter Type | Frequency - Max [Max] | Center Contact Plating | Style | Mounting Type | Adapter Series [Min] | Adapter Series [Max] | Convert To (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Conversion Type | Impedance | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

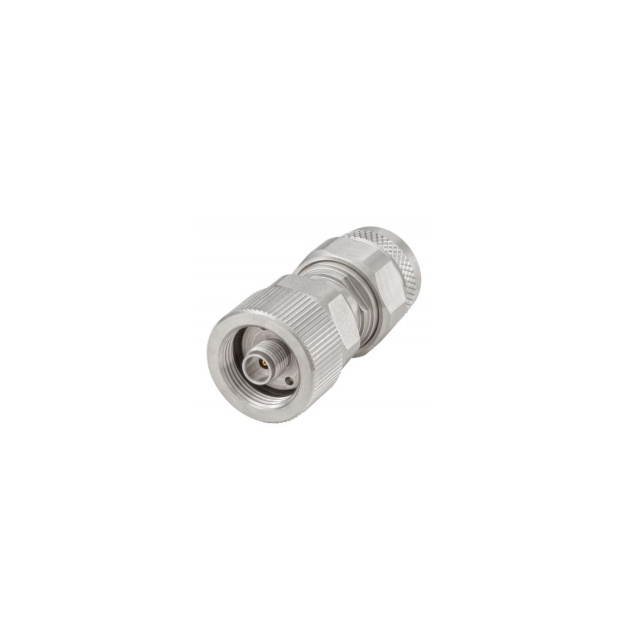

 Rosenberger | Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE) | Stainless Steel | 85 °C | -40 C | 0.21 dB | 500 | Beryllium Copper | Plug to Jack | 18 GHz | Gold | Straight | Free Hanging (In-Line) | RPC-2.40 | RPC-N | N Plug Male Pin | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Between Series | 50 Ohms | |

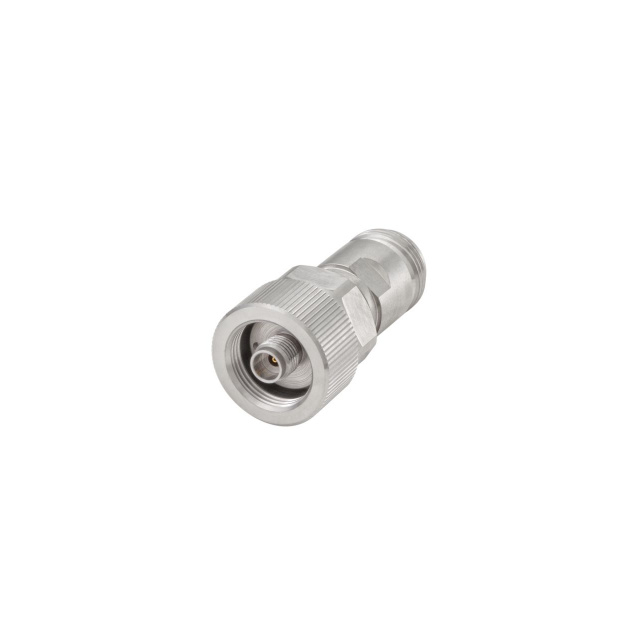

 Rosenberger | Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE) | Stainless Steel | 85 °C | -40 C | 0.21 dB | 500 | Beryllium Copper | Jack to Jack | 18 GHz | Gold | Straight | Free Hanging (In-Line) | RPC-2.40 | RPC-N | N Jack Female Socket | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Between Series | 50 Ohms | Female to Female |
