PRWP1S Series
Manufacturer: Panduit Corp
Beta
⌘K

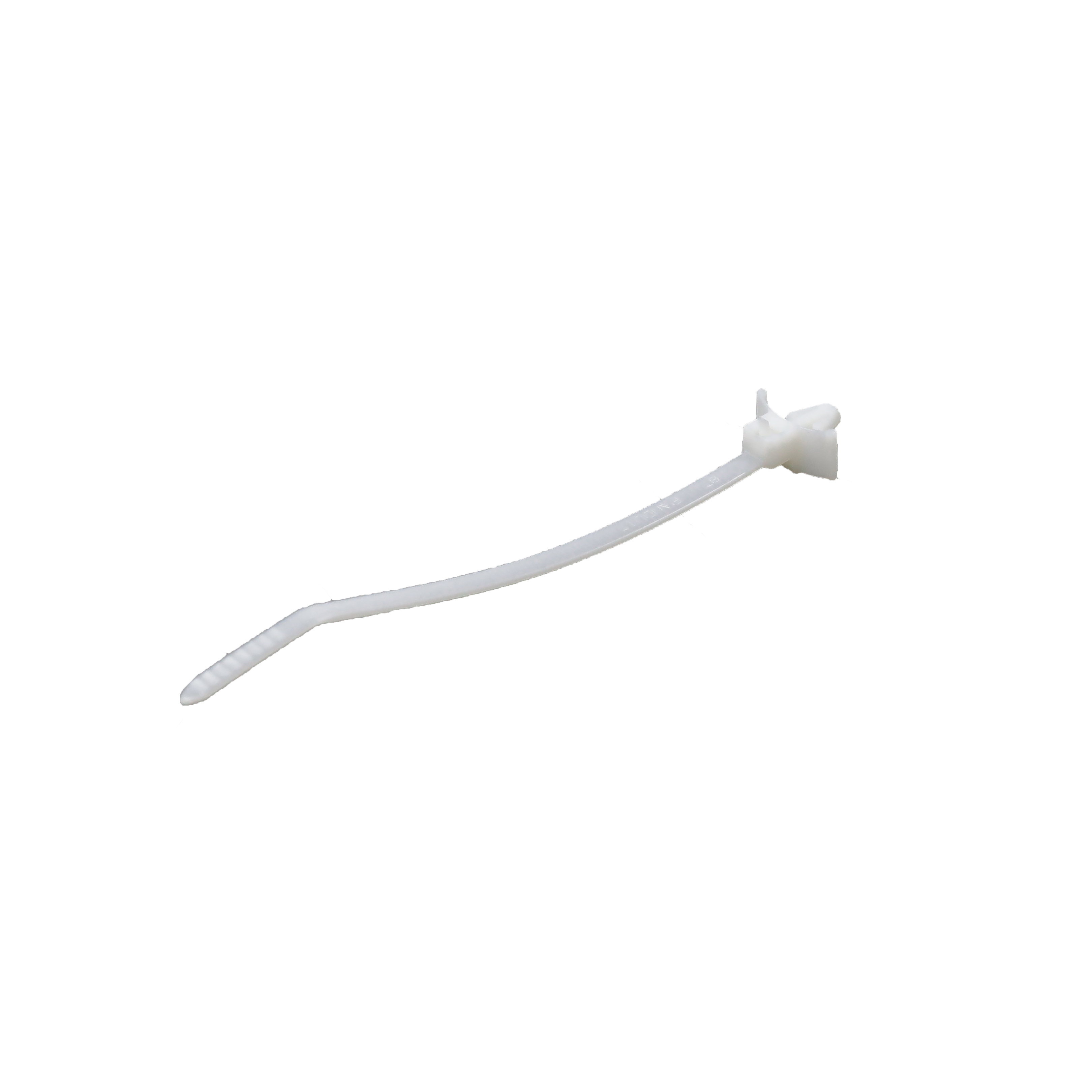

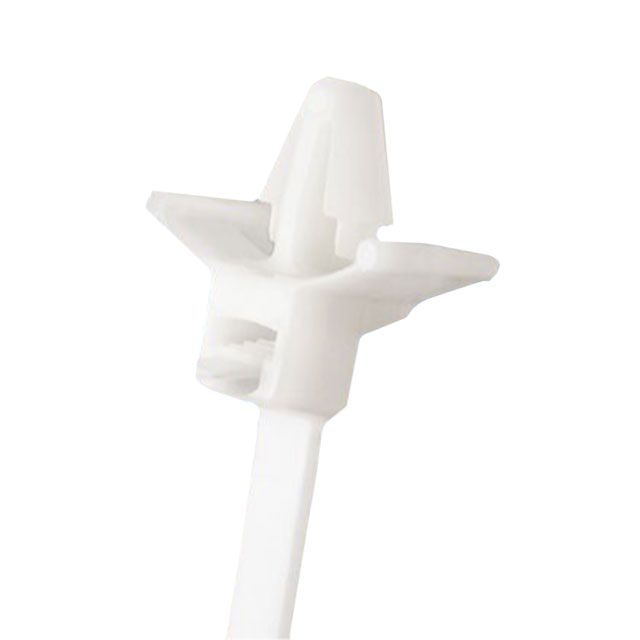

WING PUSH MOUNT TIE, RELEASABLE, 5.2L (1 ROHS COMPLIANT: YES
| Part | Length - Approximate [x] | Bundle Diameter [diameter] | Bundle Diameter [diameter] | Color | Length - Actual [x] | Length - Actual [x] | Length - Actual [x] | Material | Tensile Strength | Tensile Strength | Width | Width [x] | Mounting Type | Wire/Cable Tie Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 5.25 in | 25.4 mm | 1 " | Natural | 5.2 " | 131.98 mm | 0.433 ' | Polyamide (PA66) Nylon 6/6 | 22.68 kg | 50 lbs | 4.83 mm | 0.19 in | Push Mount Winged Arrowhead | Standard Releasable | |
 Panduit Corp | 5.25 in | 25.4 mm | 1 " | Natural | 5.2 " | 131.98 mm | 0.433 ' | Polyamide (PA66) Nylon 6/6 | 22.68 kg | 50 lbs | 4.83 mm | 0.19 in | Push Mount Winged Arrowhead | Standard Releasable | |

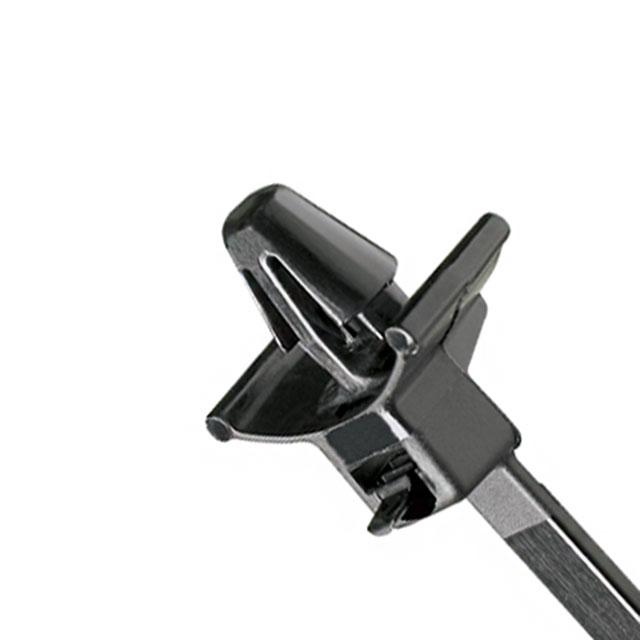

 Panduit Corp | 5.25 in | 25.4 mm | 1 " | Black | 5.2 " | 131.98 mm | 0.433 ' | Polyamide (PA66) Nylon 6/6 | 22.68 kg | 50 lbs | 4.83 mm | 0.19 in | Push Mount Winged Arrowhead | Standard Releasable | Weather Resistant |
