324608 Series

Catalog

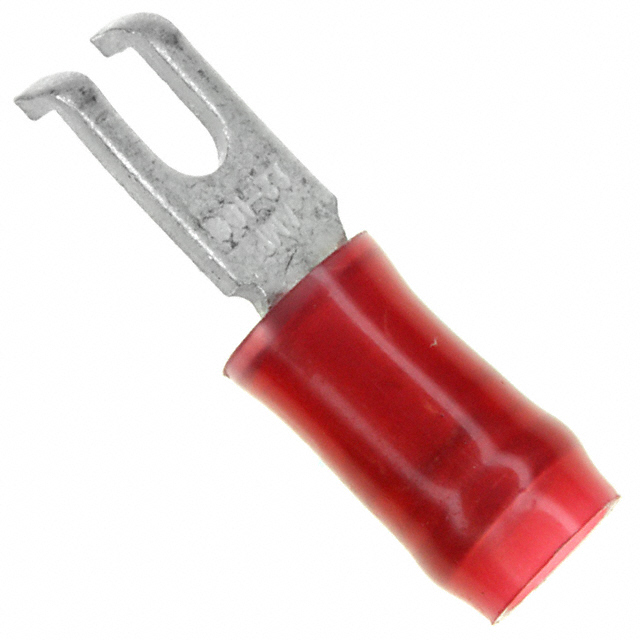

CONN SPADE TERM 16-22AWG #2 RED

Part	Length - Overall [x]	Length - Overall [x]	Insulation	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Contact Material	Mounting Type	Color	Termination	Length - Termination	Length - Termination	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Material - Insulation	Width - Outer Edges	Width - Outer Edges	Features	Tongue Inside Opening [x]	Tongue Inside Opening [x]
TE Connectivity Raychem Cable Protection 8-324608-1	19.25 mm	0.758 in	Insulated	Flanged	22 AWG	16 AWG	Tin	Copper	Free Hanging (In-Line)	Red	Crimp	0.404 "	10.26 mm	2 Stud	0.203 in	5.16 mm	Poly-Vinyl Chloride (PVC)	4.62 mm	0.182 "	Serrated Termination	2.36 mm	0.093 in
