EDNF14250 Series

Catalog

STRONGHOLD MALE DISCONNECT, NYLO

Part	Insulation Diameter [diameter]	Insulation Diameter	Features	Insulation	Gender	Length - Overall	Length - Overall	Terminal Type	Termination	Tab Thickness	Tab Thickness	Mounting Type	Tab Width [x]	Tab Width [x]	Color	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Contact Finish

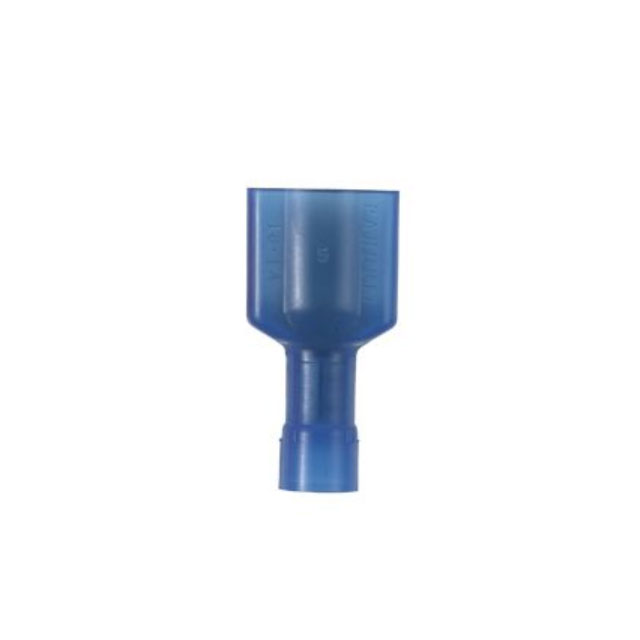

Panduit Corp EDNF14250FIMB-Q	0.16 in	4.06 mm	Butted Seam	Fully Insulated	Male	0.91 in	23.11 mm	Standard	Crimp	0.81 mm	0.032 in	Free Hanging (In-Line)	6.35 mm	0.25 in	Blue	14 AWG	16 AWG	Brass	Nickel

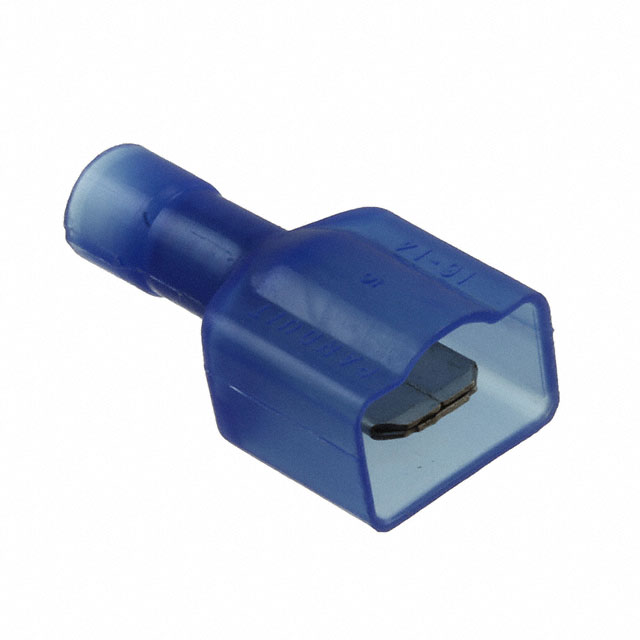

Panduit Corp EDNF14250FIMB-L	0.16 in	4.06 mm	Butted Seam	Fully Insulated	Male	0.91 in	23.11 mm	Standard	Crimp	0.81 mm	0.032 in	Free Hanging (In-Line)	6.35 mm	0.25 in	Blue	14 AWG	16 AWG	Brass	Nickel
