2017-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

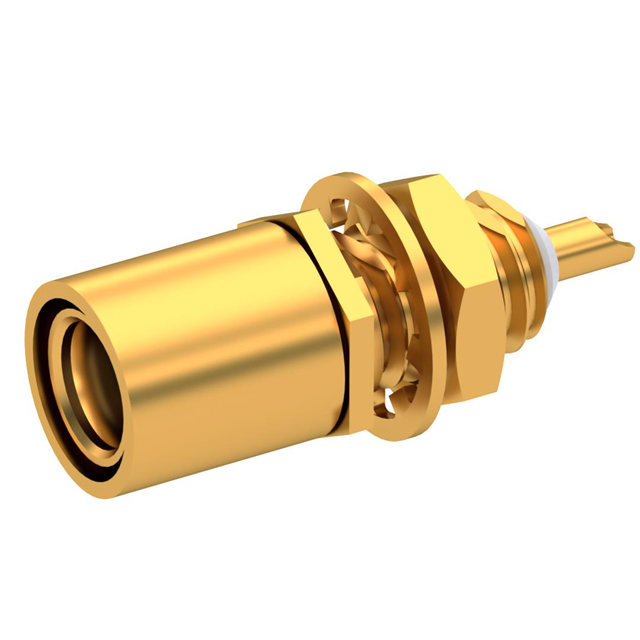

SMB F STR BHD SP
| Part | Body Finish | Dielectric Material | Center Contact Plating | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Mounting Type | Fastening Type | Housing Color | Shield Termination | Mounting Feature | Connector Style | Impedance | Center Contact Material | Connector Type | Frequency - Max [Max] | Number of Ports | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector 1 Lockwasher 1 Nut | -65 ░C | 165 °C | 500 | Brass | Panel Mount | Snap-On | Gold | Solder | Bulkhead - Rear Side Nut | SMB | 50 Ohms | Beryllium Copper | Female Socket Plug | 4 GHz | 1 | Solder Cup |
