PPPC242 Series

Catalog

CONN HDR 48POS 0.1 GOLD PCB

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Mating	Number of Rows [custom]	Contact Finish - Post	Mounting Type	Insulation Height	Insulation Height	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Positions Loaded	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Type	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Insulation Height [z]

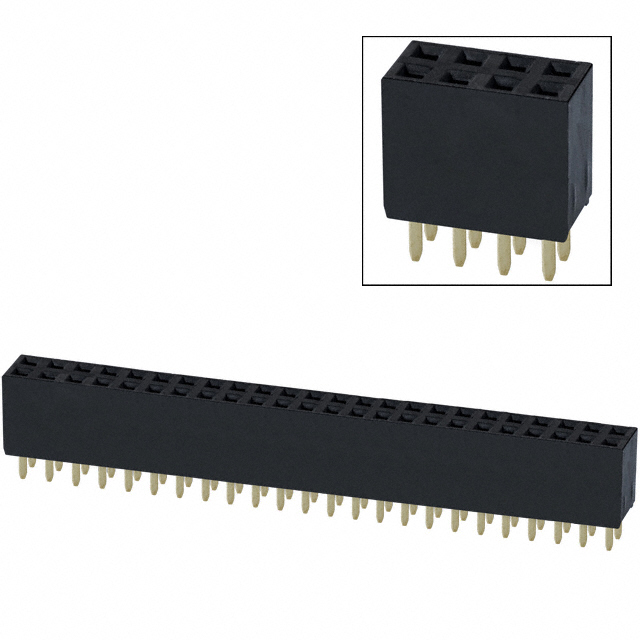

Sullins Connector Solutions PPPC242LFBN	Phosphor Bronze	Polyester	Square	Flash	0.126 "	3.2 mm	3 A	Header	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm	Black	Gold	2	Gold	Through Hole	0.335 "	8.51 mm	Push-Pull	48	-40 C	105 ░C	250 V	All	UL94 V-0	Flash	Female Socket
Sullins Connector Solutions PPPC242KFMS	Phosphor Bronze	Polyester	Square	Flash			3 A	Header	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm	Black	Gold	2	Gold	Surface Mount		7.6 mm	Push-Pull	48	-40 C	125 °C	250 V	All	UL94 V-0	Flash	Female Socket	0.299 "

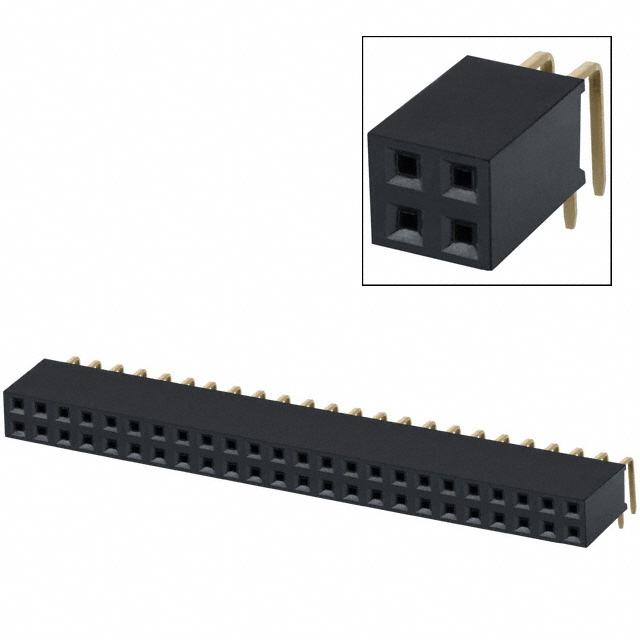

Sullins Connector Solutions PPPC242LJBN-RC	Phosphor Bronze	Polyester	Square	Flash			3 A	Header	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm	Black	Gold	2	Gold	Right Angle Through Hole			Push-Pull	48	-40 C	105 ░C	250 V	All	UL94 V-0	Flash	Female Socket	0.2 in	0.124 in	3.15 mm	5.08 mm
