9508-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

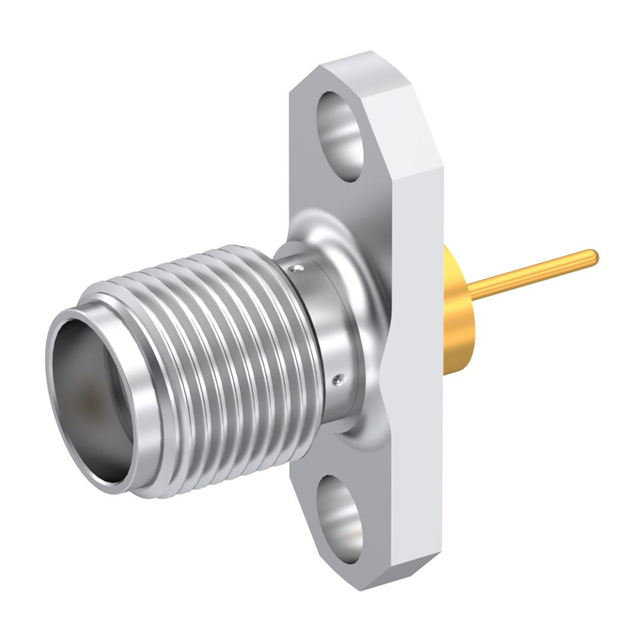

SMA F STR NWF
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Mating Cycles | Dielectric Material | Shield Termination | Contact Termination | Frequency - Max [Max] | Number of Ports | Center Contact Material | Mounting Type | Connector Type | Connector Style | Mounting Feature | Fastening Type | Impedance | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | Solder | Solder | 18 GHz | 1 | Beryllium Copper | Panel Mount | Female Socket Jack | SMA | Flange | Threaded | 50 Ohms | |
 Radiall USA, Inc. | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | Screw | Compression | 1 | Beryllium Copper | Panel Mount | Female Socket Jack | SMA | Flange | Threaded | Silver | |||||
Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | Solder | Solder | 18 GHz | 1 | Beryllium Copper | Panel Mount | Female Socket Jack | SMA | Flange | Threaded | 50 Ohms |
