SI5486 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

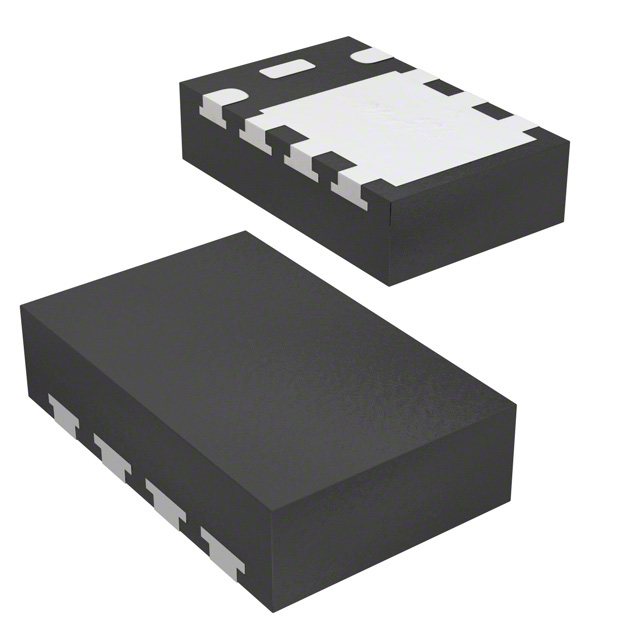

MOSFET N-CH 20V 12A CHIPFET
| Part | Gate Charge (Qg) (Max) @ Vgs | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Power Dissipation (Max) | Drain to Source Voltage (Vdss) | Vgs(th) (Max) @ Id | Mounting Type | Vgs (Max) | Rds On (Max) @ Id, Vgs | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Technology | Package / Case | Input Capacitance (Ciss) (Max) @ Vds | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 54 nC | -55 °C | 150 °C | PowerPAK® ChipFET™ Single | 3.1 W 31 W | 20 V | 1 V | Surface Mount | 8 V | 15 mOhm | 12 A | 1.8 V 4.5 V | MOSFET (Metal Oxide) | PowerPAK® ChipFET™ Single | 2100 pF | N-Channel |
