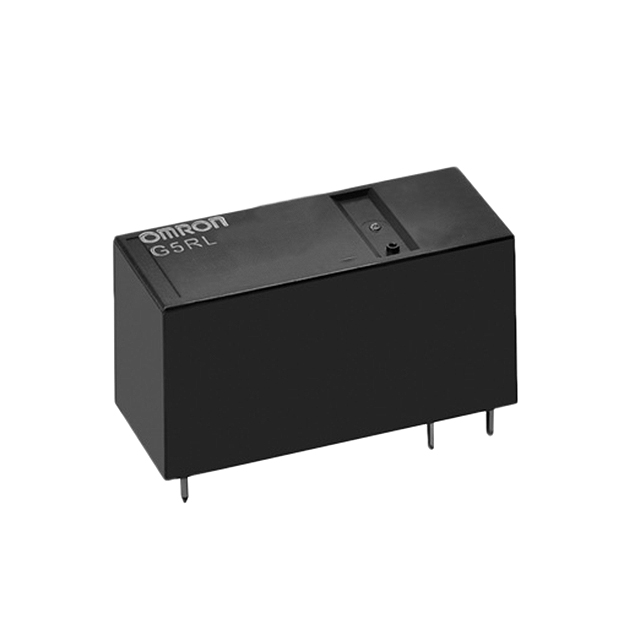

G5RLU-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 6V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Coil Resistance | Coil Current | Operate Time | Seal Rating | Contact Material | Release Time | Switching Voltage | Relay Type | Must Operate Voltage | Load - Max Switching | Contact Form | Mounting Type | Contact Rating (Current) | Coil Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 85 °C | -40 °C | PC Pin | 60 Ohms | 100 mA | 15 ms | Sealed - Flux Protection | Cadmium Free Silver Alloy | 15 ms | 24 VDC 250 VAC | General Purpose | 4.2 VDC | 384 W 4000 VA | SPST-NO (1 Form A) | Through Hole | 16 A | Latching Single Coil | CQC CSA cURus UR VDE |
