0640-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

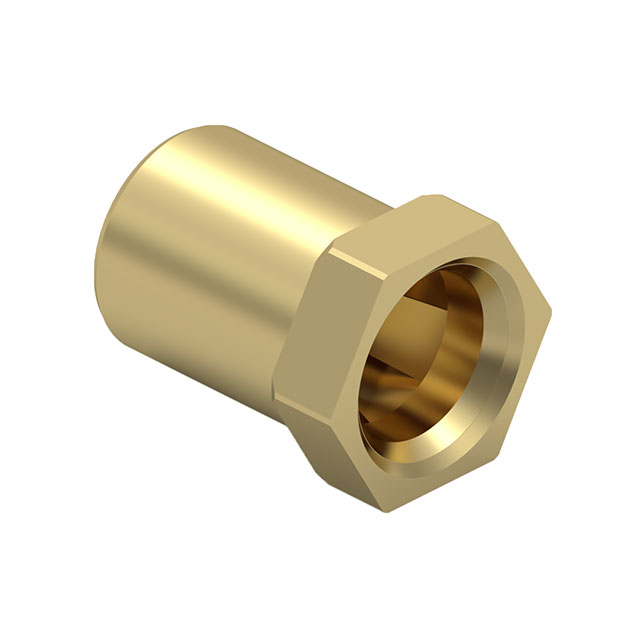

ZERO PROFILE RECEPTACLE WITH EAR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Length - Overall | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Termination | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Contact Finish | Socket Depth | Socket Depth | Contact Material | Tail Type | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.67 mm | 0.105 in | 0.25 Ám | 10 Áin | 0.085 in | 2.16 mm | 0.059 in | 1.51 mm | Hex Press-Fit | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | Gold | 2.44 mm | 0.096 in | Beryllium Copper | No Tail | 0.088 in | 2.24 mm |
