NIS6452 Series

Electronic Fuse, +3.3 V, +5 V

Catalog

Electronic Fuse, +3.3 V, +5 V

Part	Function	Supplier Device Package	Voltage - Input	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type

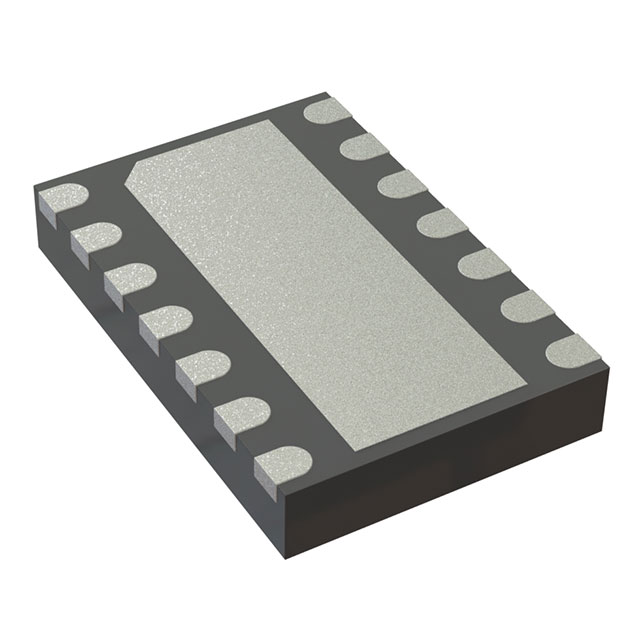

ON Semiconductor NIS6452MT2TWG	Electronic Fuse	12-WQFN (3x2)	5 VDC	3 A	-40 °C	125 °C	12-WFQFN Exposed Pad	Surface Mount
ON Semiconductor NIS6432MT2TWG	Electronic Fuse	12-WQFN (3x2)	3.3 V	3 A	-40 °C	125 °C	12-WFQFN Exposed Pad	Surface Mount

Catalog

Electronic Fuse, +3.3 V, +5 V

Key Features

• Fast Response Overvoltage Clamp Circuit

• Digital and Tristate Enable

• 42 mΩ Typical

• Integrated Reverse Current Protection

• Thermally Protected

• Integrated Soft−Start Circuit

• Internal Undervoltage Lockout Circuit

Description

The NIS64x2 is a cost effective, re-settable fuse which can greatly enhance the reliability of a hard drive or other circuit from both catastrophic and shutdown failures. It is designed to buffer the load device from excessive input voltage which can damage sensitive circuits and to protect the input side circuitry from reverse currents. It includes an over-voltage clamp circuit that limits the output voltage during transients but does not shut the unit down, thereby allowing the load circuit to continue its operation.
