PPRN124 Series

Catalog

CONN HDR 48POS 0.079 GOLD PCB

Part	Contact Material	Insulation Material	Contact Shape	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Type	Insulation Color	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Number of Positions	Current Rating (Amps)	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Fastening Type

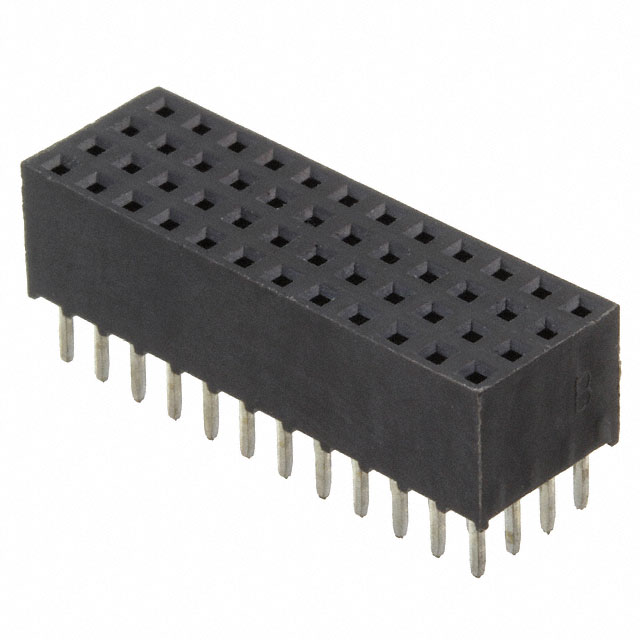

Sullins Connector Solutions PPRN124EFCN	Phosphor Bronze	Polyester	Square	All	-40 C	105 ░C	Solder	Forked	Black	UL94 V-0	Tin	Gold	Header	2.4 mm	0.094 in	48	2 A	6.35 mm	0.25 in	2 mm	0.079 in	Through Hole	0.51 µm	20 µin	0.079 "	2 mm	Push-Pull
