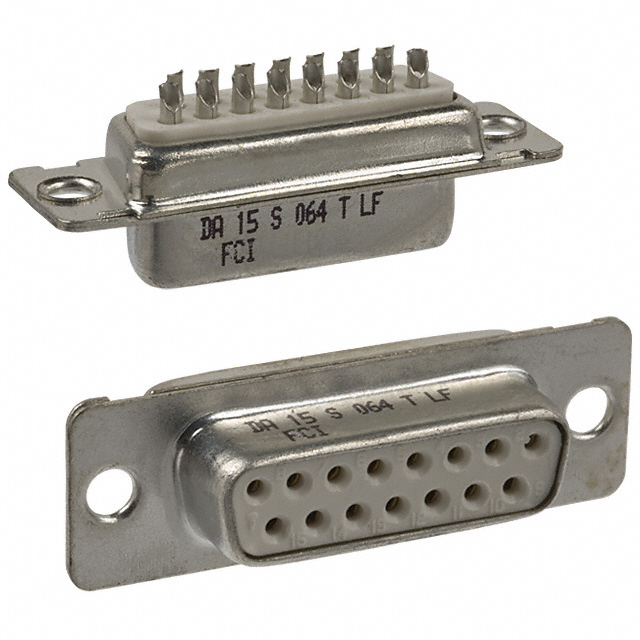

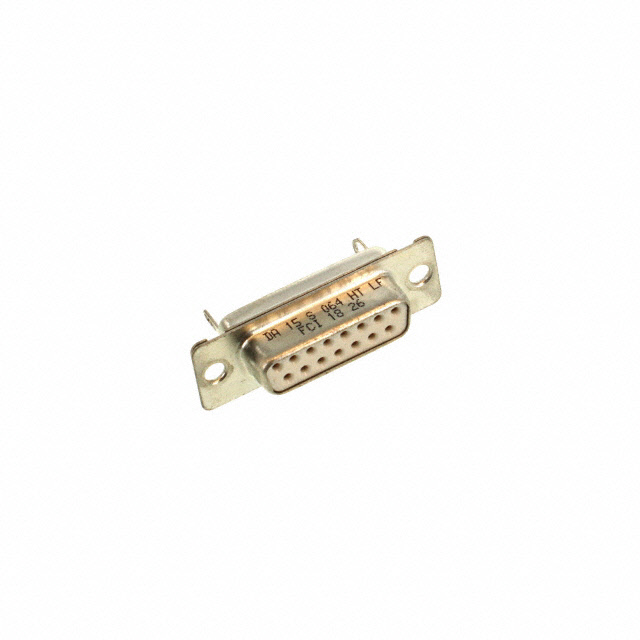

DA15S064 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
DSUB SIGNAL STC 15SOCKET
| Part | Connector Type | Features | Connector Style | Contact Type | Flange Feature | Mounting Type | Contact Finish Thickness | Number of Rows | Current Rating (Amps) | Contact Finish | Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Number of Positions | Dielectric Material | Shell Material, Finish | Contact Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Receptacle Female Sockets | Shielded | D-Sub | Signal | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Flash | 2 | 5 A | Gold | Natural | 300 VDC | -55 °C | 125 °C | 2 | 15 | Thermoplastic | |||
 Amphenol ICC (FCI) | Receptacle Female Sockets | D-Sub | Signal | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Flash | 2 | 5 A | Gold | Natural | 300 VDC | -55 °C | 125 °C | 2 | 15 | Thermoplastic | ||||
Amphenol ICC (FCI) | Receptacle Female Sockets | D-Sub | Signal | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Flash | 2 | 5 A | Gold | Natural | 300 VDC | -55 °C | 125 °C | 2 | 15 | Thermoplastic | Steel Zinc Plated | |||
 Amphenol ICC (FCI) | Receptacle Female Sockets | Shielded | D-Sub | Signal | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Flash | 2 | 5 A | Gold | Natural | 300 VDC | -55 °C | 125 °C | 2 | 15 | Thermoplastic | Copper Alloy | UL94 V-0 |
