60.19 Series

Catalog

CONTACT SKT SZ 1.0MM CRIMP GOLD

Part	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Contact Material	Contact Size	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Contact Type	Contact Termination	Contact Finish	Wire Gauge or Range - mm˛	Wire Gauge or Range - mm²

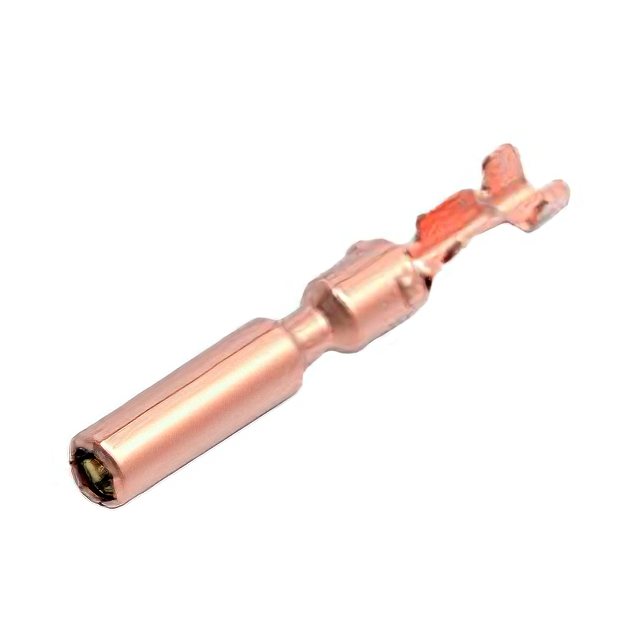

TE Intercontec 60-0199-080-P00	0.08 mm˛	0.2 mm˛	Phosphor Bronze	1 mm	Insulation Support	0.08 mm²	0.2 mm²	Power Machined	Socket	Crimp	Gold

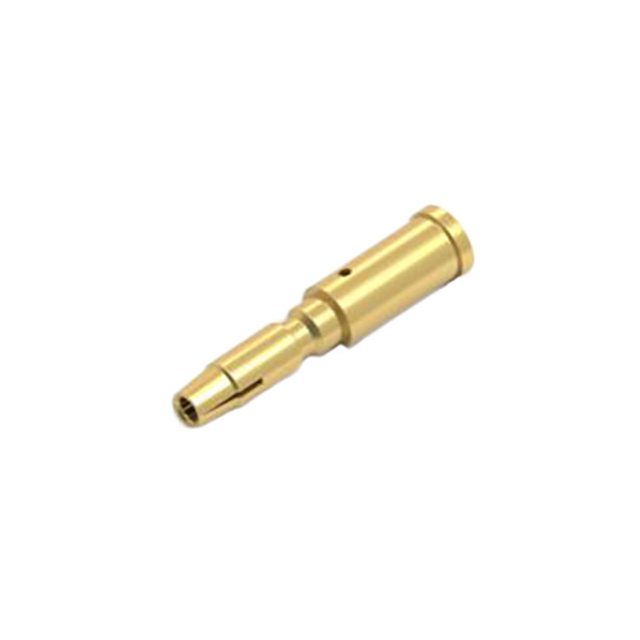

TE Intercontec 60-0197-011-P00	0.35 mm˛	2.5 mm˛	Brass	1.5 mm		0.35 mm²	2.5 mm²	Power Machined	Socket	Crimp	Gold

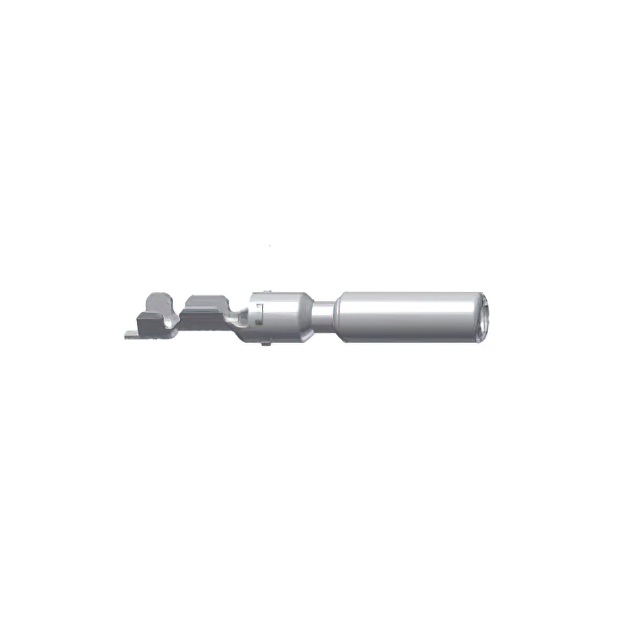

TE Intercontec 60.198.80	0.03 mm˛	0.08 mm˛	Phosphor Bronze	1 mm	Insulation Support	0.03 mm²	0.08 mm²	Power Machined	Socket	Crimp	Gold

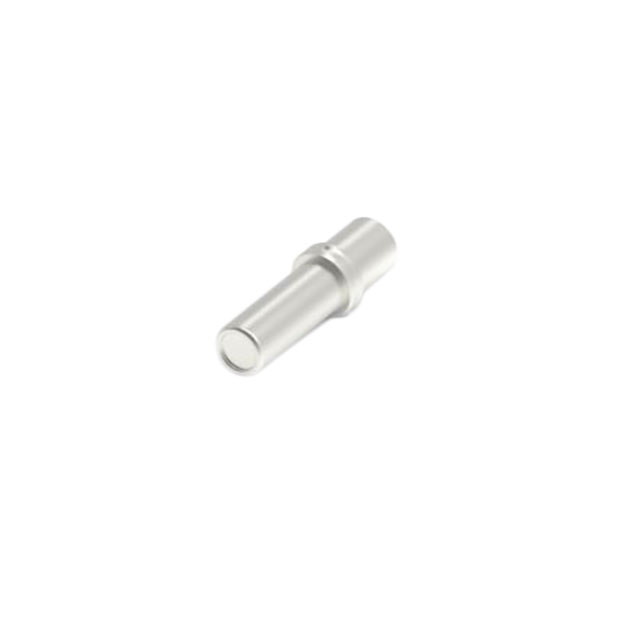

TE Intercontec 60-0193-023-P00			Brass	8 mm				Power Machined	Socket	Crimp	Silver	35 mm˛	35 mm²

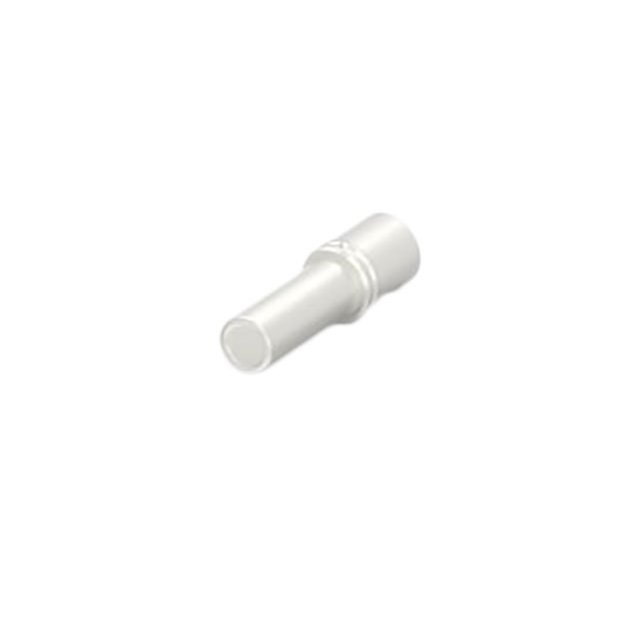

TE Intercontec 60-0192-023-P00			Brass	8 mm				Power Machined	Socket	Crimp	Silver	50 mm˛	50 mm²

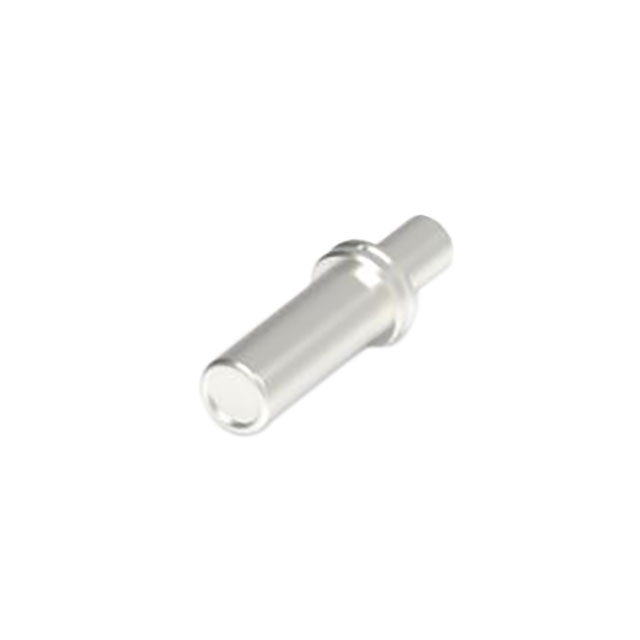

TE Intercontec 60-0195-023-P00			Brass	8 mm				Power Machined	Socket	Crimp	Silver	16 mm˛	16 mm²
