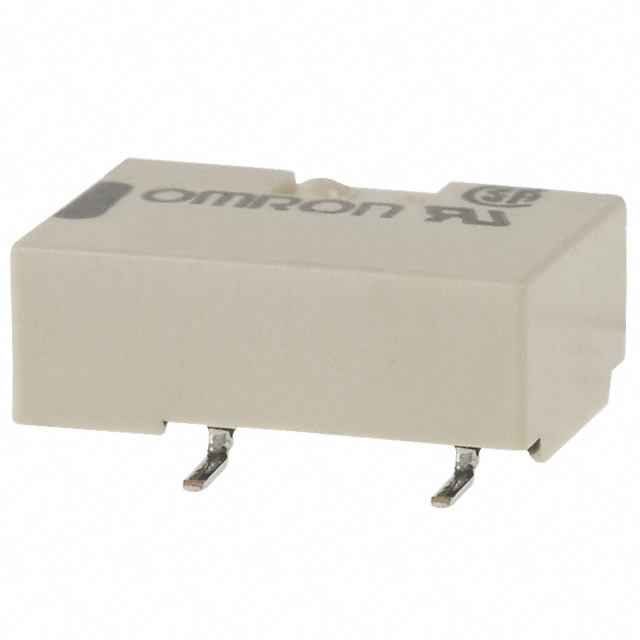

G6L-1F Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
ONE NORMALLY OPEN: 1A (SPST-NO) 1A 12V SIGNAL RELAYS ROHS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Seal Rating | Approval Agency | Coil Type | Release Time | Mounting Type | Coil Voltage | Relay Type | Termination Style | Must Operate Voltage | Coil Resistance | Load - Max Switching | Must Release Voltage | Contact Form | Operate Time | Contact Rating (Current) | Coil Current | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | -40 °C | 70 °C | Sealed - Fully | CSA UL | Non Latching | 5 ms | Surface Mount | 12 VDC | Telecom | Gull Wing | 9 VDC | 800 Ohms | 60 W 125 VA | 1.2 VDC | SPST-NO (1 Form A) | 5 ms | 1 A | 15 mA | 60 VDC 125 VAC |
Omron Electronics Inc-EMC Div | -40 °C | 70 °C | Sealed - Fully | CSA UL | Non Latching | 5 ms | Surface Mount | 4.5 VDC | Telecom | Gull Wing | 3.38 VDC | 113 Ohms | 60 W 125 VA | 0.45 VDC | SPST-NO (1 Form A) | 5 ms | 1 A | 40 mA | 60 VDC 125 VAC |
Omron Electronics Inc-EMC Div | -40 °C | 70 °C | Sealed - Fully | CSA UL | Non Latching | 5 ms | Surface Mount | 24 VDC | Telecom | Gull Wing | 18 VDC | 2500 Ohms | 60 W 125 VA | 2.4 VDC | SPST-NO (1 Form A) | 5 ms | 1 A | 9.6 mA | 60 VDC 125 VAC |
