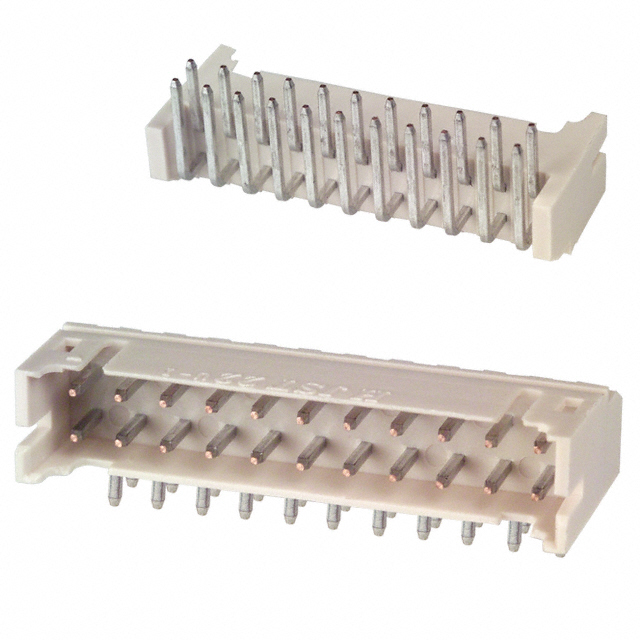

S22B-PHD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 22POS 2MM
| Part | Insulation Material | Termination | Number of Rows [custom] | Insulation Color | Fastening Type | Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Mounting Type | Contact Material | Pitch - Mating | Pitch - Mating | Connector Type | Shrouding | Contact Type | Insulation Height | Insulation Height | Number of Positions Loaded | Number of Positions | Contact Shape | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Material Flammability Rating | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Glass Filled Nylon Polyamide (PA) | Solder | 2 | Natural | Detent Lock | Board to Cable/Wire | 85 °C | -25 °C | 250 V | 2.9 mm | 0.114 in | Right Angle Through Hole | Copper Alloy | 0.079 " | 2 mm | Header | Shrouded - 4 Wall | Male Pin | 0.197 " | 5 mm | All | 22 | Square | 0.118 in | 3 mm | Tin | UL94 V-0 | 3 A | 2 mm | 0.079 in |
