SML-LXL1206 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

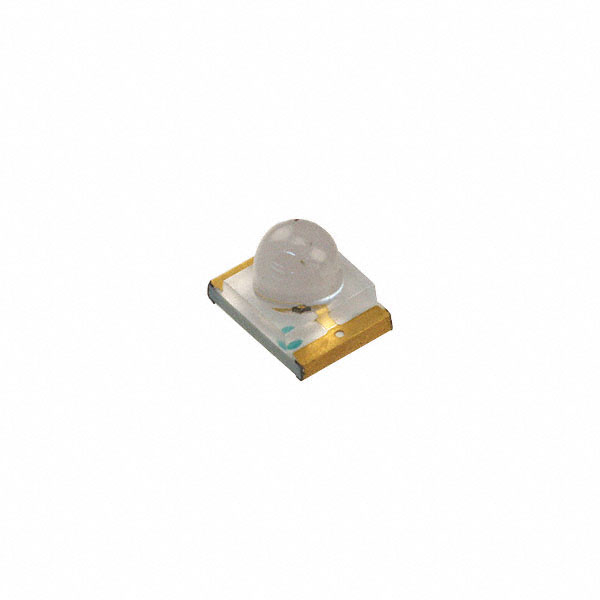

LED RED CLEAR 1206 SMD

Part	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Package / Case	Current - Test	Lens Style	Millicandela Rating	Lens Size [diameter]	Lens Transparency	Color	Configuration	Wavelength - Peak	Lens Color	Viewing Angle
Lumex Opto/Components Inc. SML-LXL1206SRC-TR	1.5 mm	3 mm	1.5 mm	Surface Mount	1206	1.7 V	1206 (3216 Metric)	20 mA	Round with Flat Top	90 mcd	1.1 mm	Clear	Red	Standard	660 nm	Colorless	60 °
Lumex Opto/Components Inc. SML-LXL1206SUGC-TR		3 mm	1.5 mm	Surface Mount	1206	2.2 V	1206 (3216 Metric)	20 mA	Round with Domed Top	50 mcd	0.91 mm	Clear	Green	Independent		Colorless	20 °
Lumex Opto/Components Inc. SML-LXL1206USBC-TR	1.5 mm	3 mm	1.5 mm	Surface Mount	1206	3.5 V	1206 (3216 Metric)	20 mA	Round with Flat Top	75 mcd	1.1 mm	Clear	Blue	Standard	470 nm	Colorless	20 °
Lumex Opto/Components Inc. SML-LXL1206YC-TR	1.5 mm	3 mm	1.5 mm	Surface Mount	1206	2.1 V	1206 (3216 Metric)	20 mA	Round with Flat Top	16 mcd	1.1 mm	Clear	Yellow	Standard	585 nm	Colorless	20 °
Lumex Opto/Components Inc. SML-LXL1206SYC-TR	1.5 mm	3 mm	1.5 mm	Surface Mount	1206	2 V	1206 (3216 Metric)	20 mA	Round with Flat Top	75 mcd	1.1 mm	Clear	Yellow	Standard	590 nm	Colorless	20 °
Lumex Opto/Components Inc. SML-LXL1206GC-TR	1.5 mm	3 mm	1.5 mm	Surface Mount	1206	2.1 V	1206 (3016 Metric) 1206 (3216 Metric)	20 mA	Round with Flat Top	20 mcd	1.1 mm	Clear	Green	Standard	565 nm	Colorless	20 °
Lumex Opto/Components Inc. SML-LXL1206IC-TR	1.5 mm	3 mm	1.5 mm	Surface Mount	1206	2 V	1206 (3216 Metric)	20 mA	Round with Flat Top	20 mcd	1.1 mm	Clear	Red	Standard	635 nm	Colorless	20 °
Lumex Opto/Components Inc. SML-LXL1206SIC-TR	1.5 mm	3 mm	1.5 mm	Surface Mount	1206	2 V	1206 (3216 Metric)	20 mA	Round with Flat Top	75 mcd	1.1 mm	Clear	Red	Standard	636 nm	Colorless	20 °
