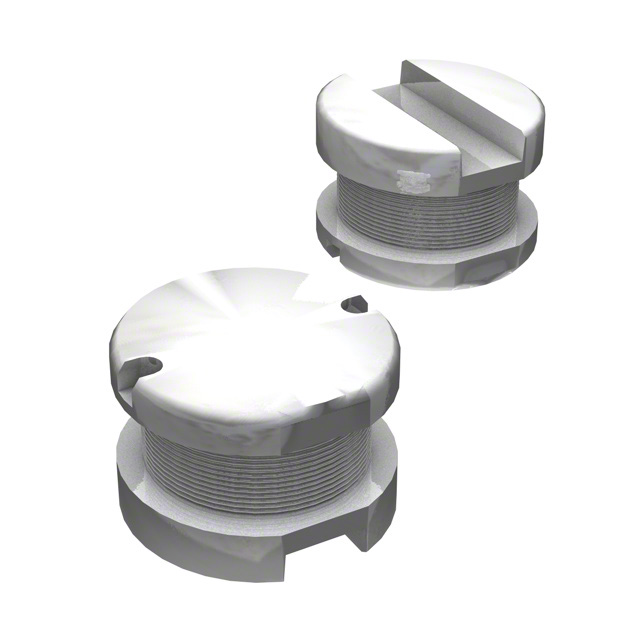

SDR0603 Series

Catalog

SURFACE MOUNT POWER INDUCTOR, SDR0603 SERIES, 100 H, 10%, UNSHIELDED, 0.95 OHM, 380 MA ROHS COMPLIANT: YES

Part	Shielding	Inductance Frequency - Test	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency - Self Resonant	Package / Case	Material - Core	DC Resistance (DCR) [Max]	Tolerance	Q @ Freq [custom]	Q @ Freq [custom]	Inductance	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Saturation (Isat)	DC Resistance (DCR)	Q @ Freq
Bourns Inc. SDR0603-101KL	Unshielded	1 kHz	0.38 A	0.228 in	5.8 mm	0.228 in	5.8 mm	0.154 in	3.9 mm	10 MHz	Nonstandard	Ferrite	950 mOhm	10 %	28	796 kHz	100 µH	Drum Core Wirewound	125 °C	-40 C	Surface Mount	660 mA
Bourns Inc. SDR0603-5R0ML	Unshielded	1 kHz	1.6 A	0.228 in	5.8 mm	0.228 in	5.8 mm	0.154 in	3.9 mm	50 MHz	Nonstandard	Ferrite		20 %	19	7.96 MHz	5 µH	Drum Core Wirewound	125 °C	-40 C	Surface Mount	2.1 A	70 mOhm
Bourns Inc. SDR0603-221KL	Unshielded	1 kHz	0.26 A	0.228 in	5.8 mm	0.228 in	5.8 mm	0.154 in	3.9 mm	6 MHz	Nonstandard	Ferrite	2 Ohm	10 %	26	796 kHz	220 µH	Drum Core Wirewound	125 °C	-40 C	Surface Mount	460 mA
Bourns Inc. SDR0603-470KL	Unshielded	1 kHz	0.52 A	0.228 in	5.8 mm	0.228 in	5.8 mm	0.154 in	3.9 mm	13 MHz	Nonstandard	Ferrite		10 %			47 µH	Drum Core Wirewound	125 °C	-40 C	Surface Mount	620 mA	550 mOhm	2.52 MHz 20
Bourns Inc. SDR0603-220ML	Unshielded	1 kHz	750 mA	0.228 in	5.8 mm	0.228 in	5.8 mm	0.154 in	3.9 mm	30 MHz	Nonstandard	Ferrite	280 mOhm	20 %			22 µH	Drum Core Wirewound	125 °C	-40 C	Surface Mount	960 mA		2.52 MHz 20
Bourns Inc. SDR0603-121KL	Unshielded	1 kHz	360 mA	0.228 in	5.8 mm	0.228 in	5.8 mm	0.154 in	3.9 mm	8 MHz	Nonstandard	Ferrite	1.1 Ohm	10 %				Drum Core Wirewound	125 °C	-40 C	Surface Mount	0.6 A		27 796 kHz
Bourns Inc. SDR0603-150ML	Unshielded	1 kHz	930 mA	0.228 in	5.8 mm	0.228 in	5.8 mm	0.154 in	3.9 mm	28 MHz	Nonstandard	Ferrite	180 mOhm	20 %			15 µH	Drum Core Wirewound	125 °C	-40 C	Surface Mount	1.1 A		22
Bourns Inc. SDR0603-7R5ML	Unshielded	1 kHz	1.29 A	0.228 in	5.8 mm	0.228 in	5.8 mm	0.154 in	3.9 mm	38 MHz	Nonstandard	Ferrite	120 mOhm	20 %	19	7.96 MHz	7.5 µH	Drum Core Wirewound	125 °C	-40 C	Surface Mount	1.6 A
Bourns Inc. SDR0603-120ML	Unshielded	1 kHz	1.02 A	0.228 in	5.8 mm	0.228 in	5.8 mm	0.154 in	3.9 mm	30 MHz	Nonstandard	Ferrite	160 mOhm	20 %			12 µH	Drum Core Wirewound	125 °C	-40 C	Surface Mount	1.3 A		2.52 MHz 23
Bourns Inc. SDR0603-3R9ML	Unshielded	1 kHz	2.1 A	0.228 in	5.8 mm	0.228 in	5.8 mm	0.154 in	3.9 mm	62 MHz	Nonstandard	Ferrite	50 mOhm	20 %			3.9 µH	Drum Core Wirewound	125 °C	-40 C	Surface Mount	2.2 A		7.96 MHz 22
