2314819 Series

Catalog

16P,2MM,B-B,REC,DRVT,2.7,SN,TB

Part	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Material	Mounting Type	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Color	Insulation Material	Number of Positions	Contact Finish - Post	Connector Type	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions

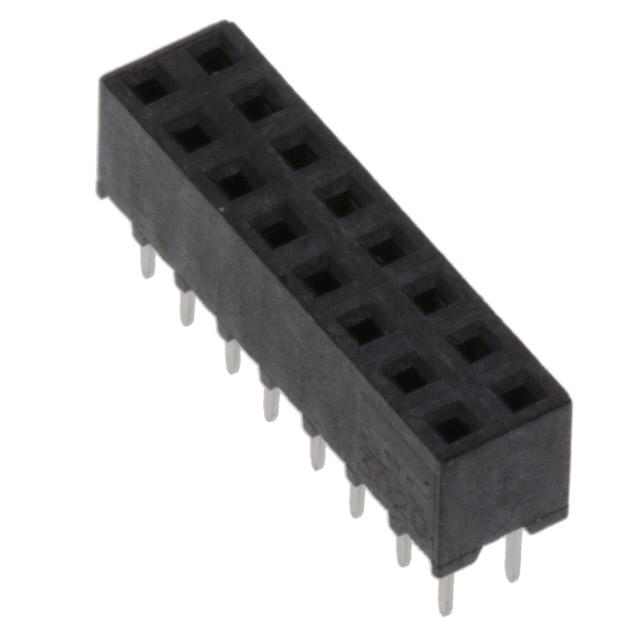

TE Connectivity Raychem Cable Protection 1-2314819-6	125 VDC	0.106 in	2.69 mm	Solder	0.177 in	4.5 mm	3 µm	118.1 µin	-40 °C	105 ░C	Square	Phosphor Bronze	Through Hole	UL94 V-0	2	All	Female Socket	118.1 µin	3 µm	2 A	Black	Liquid Crystal Polymer (LCP)	16	Tin	Receptacle	Push-Pull	0.079 in	2 mm	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 1-2314819-4	125 VDC	0.106 in	2.69 mm	Solder	0.177 in	4.5 mm	3 µm	118.1 µin	-40 °C	105 ░C	Square	Phosphor Bronze	Through Hole	UL94 V-0	2	All	Female Socket	118.1 µin	3 µm	2 A	Black	Liquid Crystal Polymer (LCP)		Tin	Receptacle	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	14
