C146 10R006 Series

Catalog

CONN HOOD CPLNG BOTTOM SZE6 M20

Part	Style	Thread Size	Features	Connector Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Housing Material	Lock Location	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]

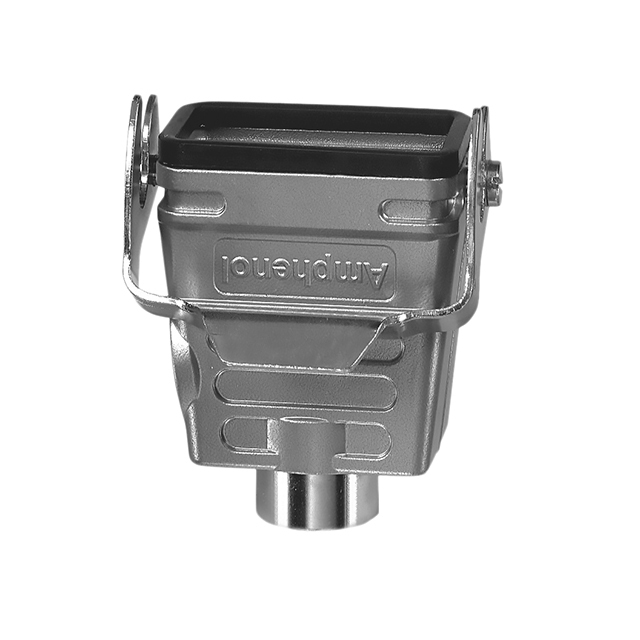

Amphenol Tuchel Industrial C146 10R006 804 1	Bottom Entry Top or Bottom Entry	M20	Cable to Cable	Hood - Coupling	52 mm	43 mm	60 mm	1.693 "	2.047 "	2.362 in	Aluminum Alloy Die Cast	Locking Clip (1) on Hood Top	IP65 - Dust Tight Water Resistant	-40 C	100 °C

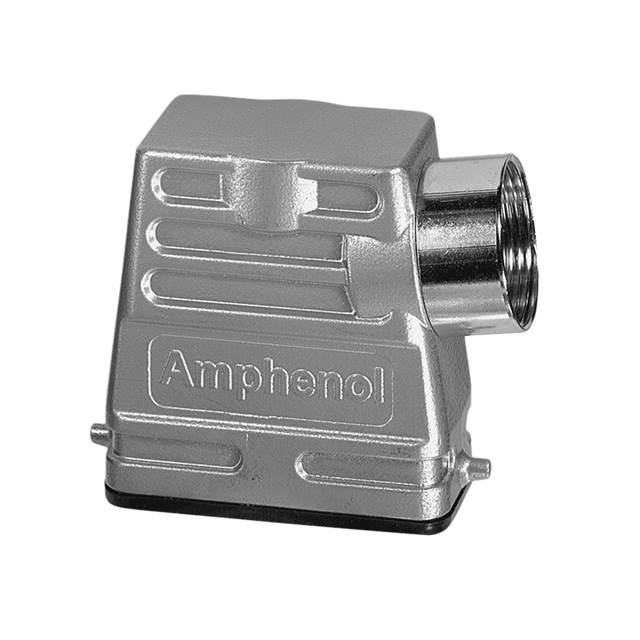

Amphenol Tuchel Industrial C146 10R006 556 8	Side Entry	M25		Hood	70 mm	43 mm	60 mm	1.693 "	2.756 "	2.362 in	Aluminum Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	-40 C	100 °C

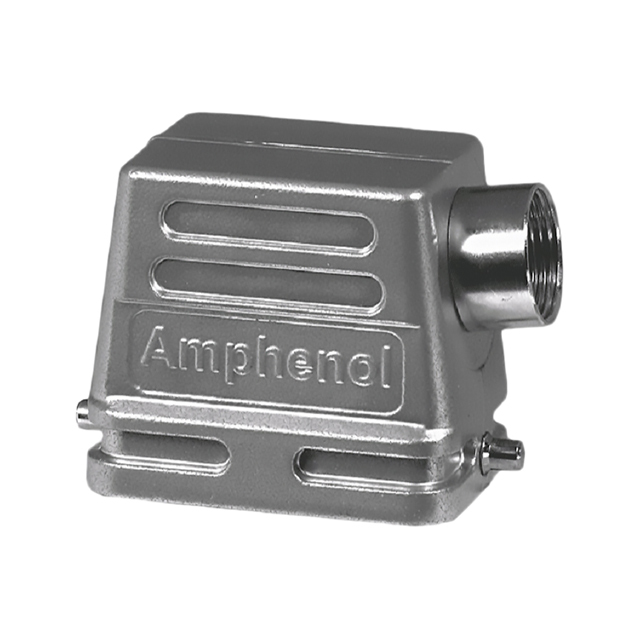

Amphenol Tuchel Industrial C146 10R006 507 1	Side Entry	M25		Hood			60 mm	1.693 " 43 mm		2.362 in	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	-40 C	100 °C
Amphenol Tuchel Industrial C146 10R006 506 1	Side Entry	M20		Hood			60 mm	1.693 " 43 mm		2.362 in	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	-40 C	100 °C
