TPS55330 Series

Catalog

CONV DC-DC 2.9V TO 16V STEP UP SINGLE-OUT 2.9V TO 22V 5A 16-PIN WQFN EP T/R

Part	Voltage - Input (Max) [Max]	Output Type	Output Configuration	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed) [Min]	Package / Case	Function	Topology	Supplier Device Package	Number of Outputs	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching [Min]	Frequency - Switching [Max]	Current - Output	Supplied Contents	Board Type	Outputs and Type	Outputs and Type	Contents	Regulator Topology	Utilized IC / Part	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Main Purpose
Texas Instruments TPS55330RTER	16 V	Adjustable	Isolation Capable Positive	Surface Mount	2.9 V	2.9 V	16-WFQFN Exposed Pad	Step-Up Step-Up/Step-Down	Boost Flyback SEPIC	16-WQFN (3x3)	1	22 V	125 °C	-40 °C	94 kHz	1.14 MHz	5.25 A
Texas Instruments TPS55330RTET	16 V	Adjustable	Isolation Capable Positive	Surface Mount	2.9 V	2.9 V	16-WFQFN Exposed Pad	Step-Up Step-Up/Step-Down	Boost Flyback SEPIC	16-WQFN (3x3)	1	22 V	125 °C	-40 °C	94 kHz	1.14 MHz	5.25 A

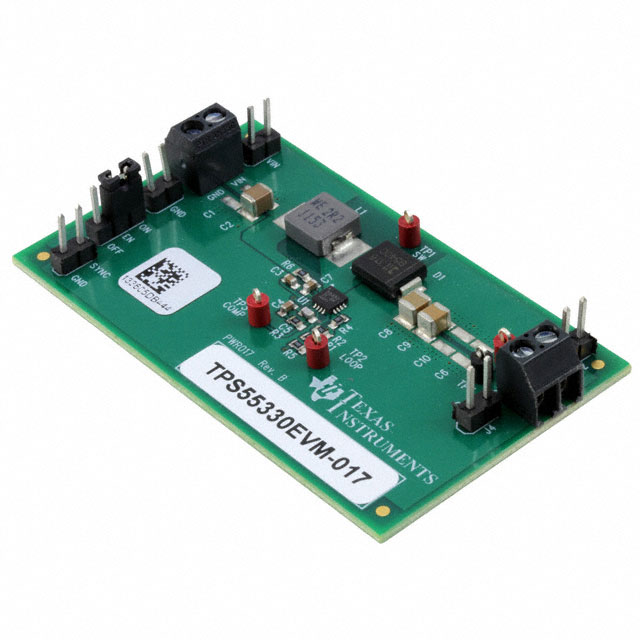

Texas Instruments TPS55330EVM-017																	2.1 A	Board(s)	Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	Boost	TPS55330	600 kHz	4.2 V	2.9 V	5 V	DC/DC Step Up
