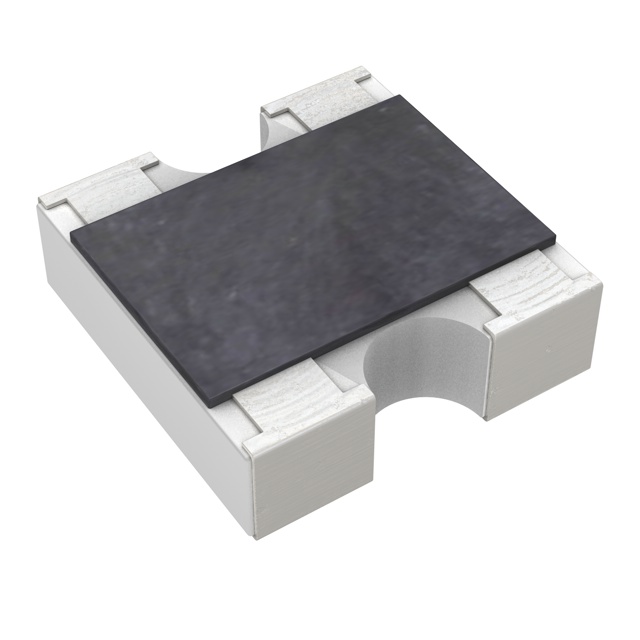

YC162-JR Series

Manufacturer: YAGEO

Catalog

RES ARRAY 2 RES 430K OHM 0606

Part	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistance (Ohms)	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Circuit Type	Tolerance	Number of Pins	Height - Seated (Max) [Max]	Height - Seated (Max)	Applications	Grade	Package / Case	Number of Resistors	Mounting Type	Power Per Element	Resistance (Ohms) [custom]
YAGEO YC162-JR-07430KL	200 ppm/°C	0.063 "	1.6 mm	0.063 "	1.6 mm	430 kOhms	155 C	-55 C	AEC-Q200	Isolated	5 %	4	0.02 in	0.5 mm	DDRAM SDRAM	Automotive	0606 Convex	2	Surface Mount	62.5 mW
YAGEO YC162-JR-0713RL	200 ppm/°C	0.063 "	1.6 mm	0.063 "	1.6 mm		155 C	-55 C	AEC-Q200	Isolated	5 %	4	0.02 in	0.5 mm	DDRAM SDRAM	Automotive	0606 Convex	2	Surface Mount	62.5 mW	13 Ohms
YAGEO YC162-JR-07240RL	200 ppm/°C	0.063 "	1.6 mm	0.063 "	1.6 mm		155 C	-55 C	AEC-Q200	Isolated	5 %	4	0.02 in	0.5 mm	DDRAM SDRAM	Automotive	0606 Convex	2	Surface Mount	62.5 mW	240 Ohms
YAGEO YC162-JR-0747RL	200 ppm/°C	0.063 "	1.6 mm	0.063 "	1.6 mm	47 Ohms	155 C	-55 C	AEC-Q200	Isolated	5 %	4	0.02 in	0.5 mm	DDRAM SDRAM	Automotive	0606 Convex	2	Surface Mount	62.5 mW
YAGEO YC162-JR-071K5L	200 ppm/°C	0.063 "	1.6 mm	0.063 "	1.6 mm		155 C	-55 C	AEC-Q200	Isolated	5 %	4	0.02 in	0.5 mm	DDRAM SDRAM	Automotive	0606 Convex	2	Surface Mount	62.5 mW	1.5 k
YAGEO YC162-JR-07430RL	200 ppm/°C	0.063 "	1.6 mm	0.063 "	1.6 mm		155 C	-55 C	AEC-Q200	Isolated	5 %	4	0.02 in	0.5 mm	DDRAM SDRAM	Automotive	0606 Convex	2	Surface Mount	62.5 mW	430 Ohms
YAGEO YC162-JR-07300RL	200 ppm/°C	0.063 "	1.6 mm	0.063 "	1.6 mm	300 Ohms	155 C	-55 C	AEC-Q200	Isolated	5 %	4	0.02 in	0.5 mm	DDRAM SDRAM	Automotive	0606 Convex	2	Surface Mount	62.5 mW
YAGEO YC162-JR-07620KL	200 ppm/°C	0.063 "	1.6 mm	0.063 "	1.6 mm		155 C	-55 C	AEC-Q200	Isolated	5 %	4	0.02 in	0.5 mm	DDRAM SDRAM	Automotive	0606 Convex	2	Surface Mount	62.5 mW	620 kOhms
YAGEO YC162-JR-0782RL	200 ppm/°C	0.063 "	1.6 mm	0.063 "	1.6 mm		155 C	-55 C	AEC-Q200	Isolated	5 %	4	0.02 in	0.5 mm	DDRAM SDRAM	Automotive	0606 Convex	2	Surface Mount	62.5 mW	82 Ohms
YAGEO YC162-JR-076K2L	200 ppm/°C	0.063 "	1.6 mm	0.063 "	1.6 mm		155 C	-55 C	AEC-Q200	Isolated	5 %	4	0.02 in	0.5 mm	DDRAM SDRAM	Automotive	0606 Convex	2	Surface Mount	62.5 mW	6.2 kOhms
