892-112 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 112POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Gender	Contact Material	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Number of Rows [custom]	Card Type	Contact Type	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Termination	Color	Card Thickness [Max]	Card Thickness [Min]	Features
EDAC Inc. 892-112-520-203	Polyphenylene Sulfide (PPS)	2	Female	Copper Alloy	0.1 "	2.54 mm	125 °C	-40 C	Gold	112	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Through Hole	2	Non Specified - Dual Edge	Cantilever	Dual	0.25 Ám	10 Áin	56	Solder	Black	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-112-559-201	Polyphenylene Sulfide (PPS)	2	Female	Copper Alloy	0.1 "	2.54 mm	125 °C	-40 C	Gold	112				Right Angle Through Hole	2	Non Specified - Dual Edge	Cantilever	Dual	0.25 Ám	10 Áin	56	Solder	Black	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-112-540-202	Polyphenylene Sulfide (PPS)	2	Female	Copper Alloy	0.1 "	2.54 mm	125 °C	-40 C	Gold	112	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Through Hole	2	Non Specified - Dual Edge	Cantilever	Dual	0.25 Ám	10 Áin	56	Wire Wrap	Black	0.07 in 1.78 mm	0.054 in 1.37 mm

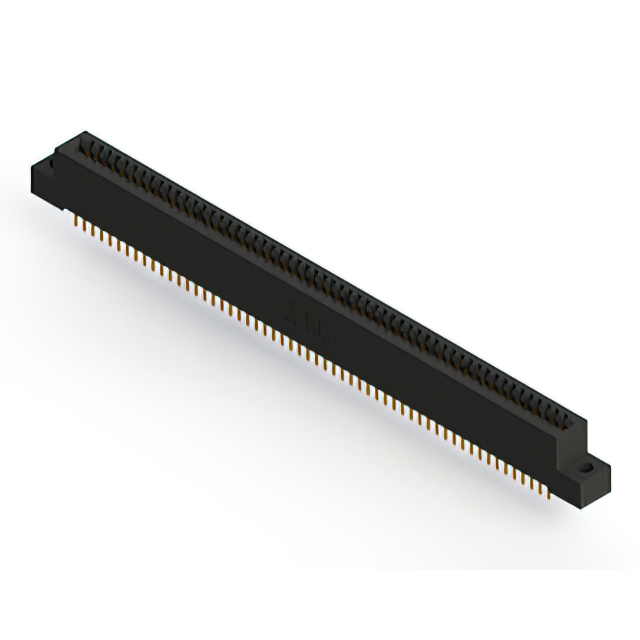

EDAC Inc. 892-112-521-204	Polyphenylene Sulfide (PPS)	2	Female	Copper Alloy	0.1 "	2.54 mm	125 °C	-40 C	Gold	112	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Through Hole	2	Non Specified - Dual Edge	Cantilever	Dual	0.25 Ám	10 Áin	56	Solder	Black	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-112-524-202	Polyphenylene Sulfide (PPS)	2	Female	Copper Alloy	0.1 "	2.54 mm	125 °C	-40 C	Gold	112	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Through Hole	2	Non Specified - Dual Edge	Cantilever	Dual	0.25 Ám	10 Áin	56	Solder	Black	0.07 in 1.78 mm	0.054 in 1.37 mm

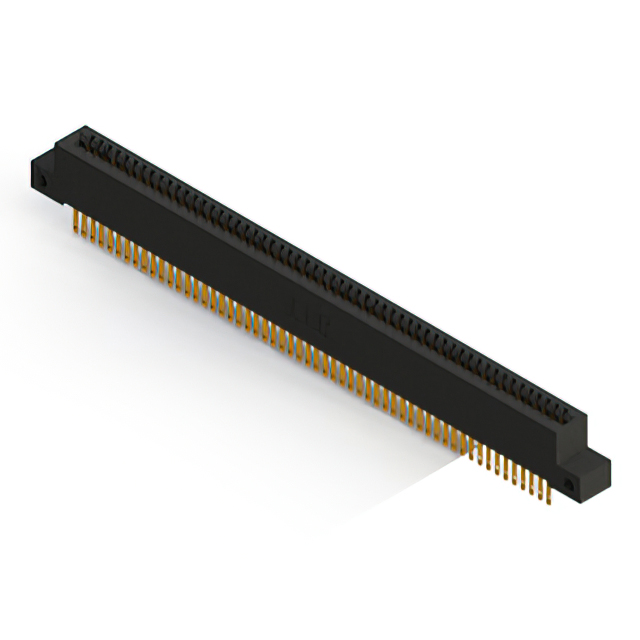

EDAC Inc. 892-112-500-212	Polyphenylene Sulfide (PPS)	2	Female	Copper Alloy	0.1 "	2.54 mm	125 °C	-40 C	Gold	112	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Through Hole	2	Non Specified - Dual Edge	Cantilever	Dual	0.25 Ám	10 Áin	56	Solder Eyelet(s)	Black	0.07 in 1.78 mm	0.054 in 1.37 mm

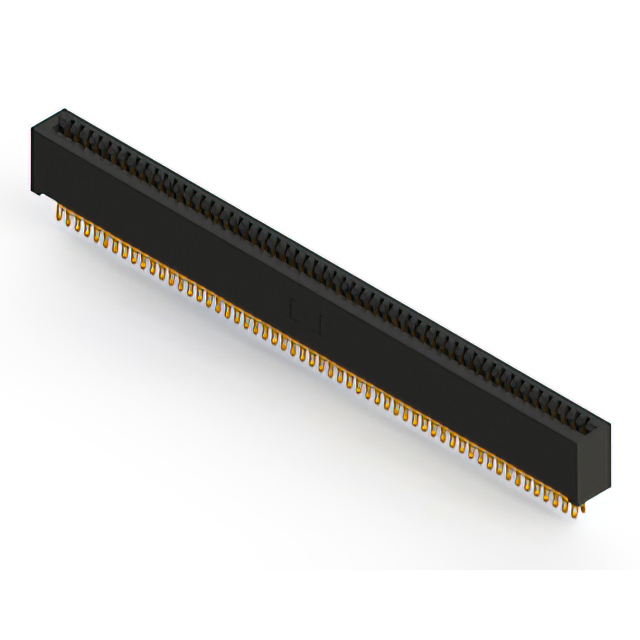

EDAC Inc. 892-112-555-201	Polyphenylene Sulfide (PPS)	2	Female	Copper Alloy	0.1 "	2.54 mm	125 °C	-40 C	Gold	112				Board Edge Straddle Mount	2	Non Specified - Dual Edge	Cantilever	Dual	0.25 Ám	10 Áin	56	Solder	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 892-112-555-202	Polyphenylene Sulfide (PPS)	2	Female	Copper Alloy	0.1 "	2.54 mm	125 °C	-40 C	Gold	112	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Board Edge Straddle Mount	2	Non Specified - Dual Edge	Cantilever	Dual	0.25 Ám	10 Áin	56	Solder	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

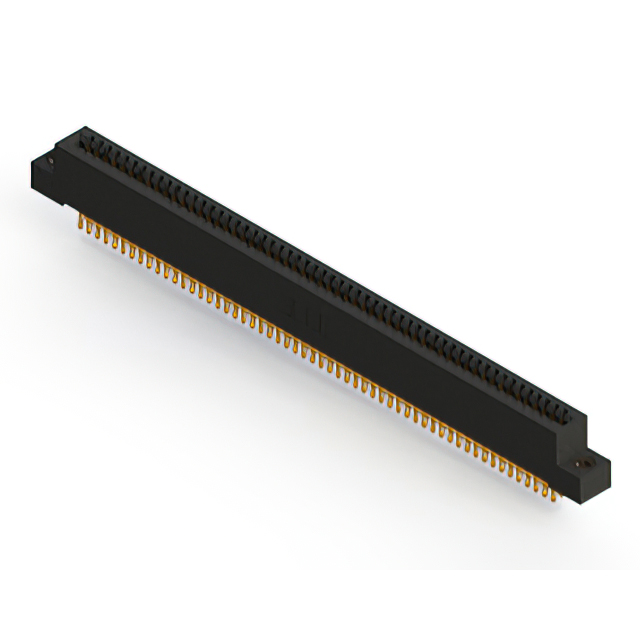

EDAC Inc. 892-112-555-207	Polyphenylene Sulfide (PPS)	2	Female	Copper Alloy	0.1 "	2.54 mm	125 °C	-40 C	Gold	112		Flush Mount M3 Threaded Insert Top Opening		Board Edge Straddle Mount	2	Non Specified - Dual Edge	Cantilever	Dual	0.25 Ám	10 Áin	56	Solder	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 892-112-542-207	Polyphenylene Sulfide (PPS)	2	Female	Copper Alloy	0.1 "	2.54 mm	125 °C	-40 C	Gold	112		Flush Mount M3 Threaded Insert Top Opening		Through Hole	2	Non Specified - Dual Edge	Cantilever	Dual	0.25 Ám	10 Áin	56	Wire Wrap	Black	0.07 in 1.78 mm	0.054 in 1.37 mm
