717-018 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 18POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Termination	Contact Material	Pitch	Pitch	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Gender	Mounting Type	Card Type	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Read Out	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]

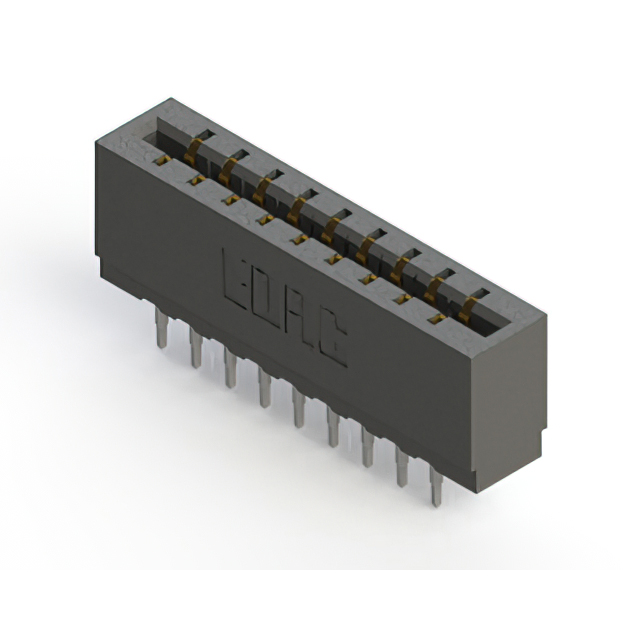

EDAC Inc. 717-018-560-201	Polyester Thermoplastic	2	9	Press-Fit	Copper Alloy	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Non Specified - Dual Edge	Gold	18	30 Áin	0.76 Ám	Cantilever Make Before Break	Dual	Black	-40 C	105 ░C

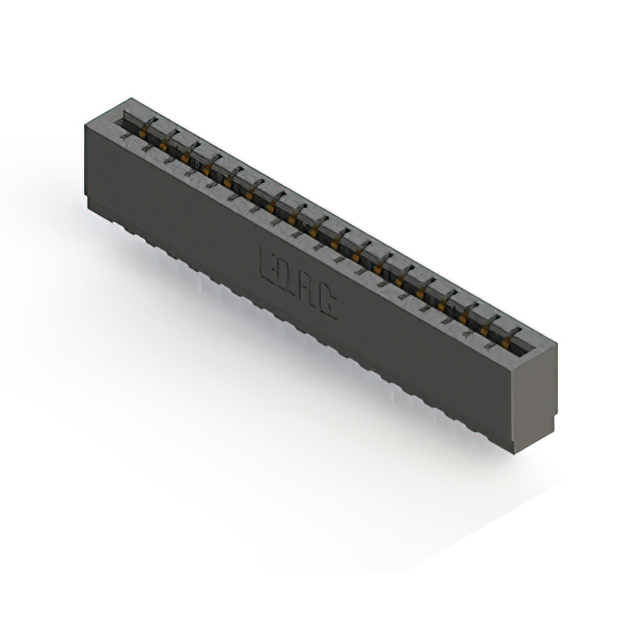

EDAC Inc. 717-018-545-101	Polyester Thermoplastic			Press-Fit Wire Wrap	Copper Alloy	3.96 mm	0.156 in		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Non Specified - Single Edge	Gold	18	30 Áin	0.76 Ám	Cantilever	Single	Black	-40 C	105 ░C	1	1	18

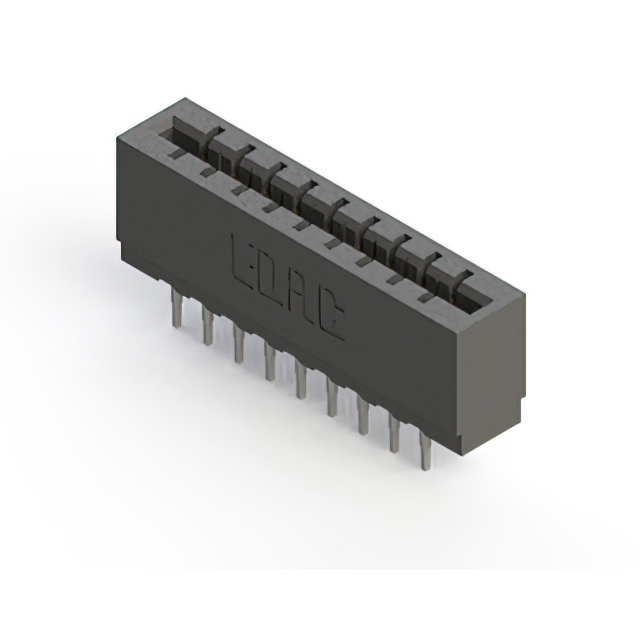

EDAC Inc. 717-018-522-201	Polyester Thermoplastic	2	9	Press-Fit	Copper Alloy	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Non Specified - Dual Edge	Gold	18	30 Áin	0.76 Ám	Cantilever	Dual	Black	-40 C	105 ░C
EDAC Inc. 717-018-525-201	Polyester Thermoplastic	2	9	Press-Fit	Copper Alloy	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Non Specified - Dual Edge	Gold	18	30 Áin	0.76 Ám	Cantilever	Dual	Black	-40 C	105 ░C

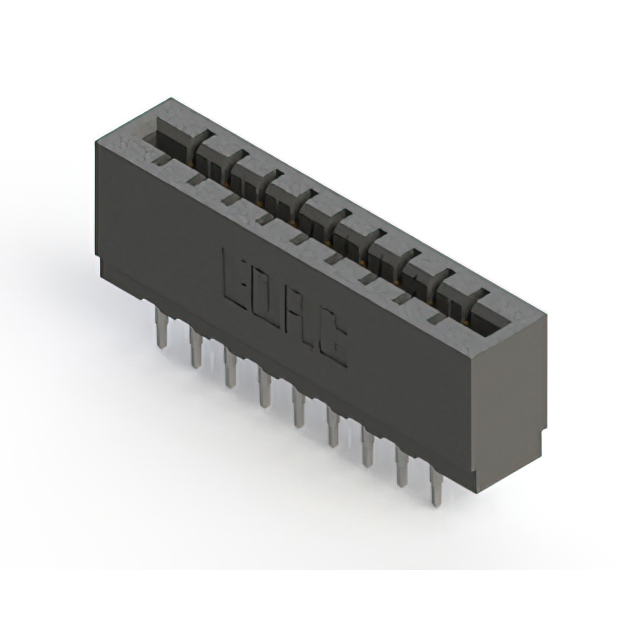

EDAC Inc. 717-018-520-201	Polyester Thermoplastic	2	9	Press-Fit	Copper Alloy	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Non Specified - Dual Edge	Gold	18	30 Áin	0.76 Ám	Cantilever	Dual	Black	-40 C	105 ░C

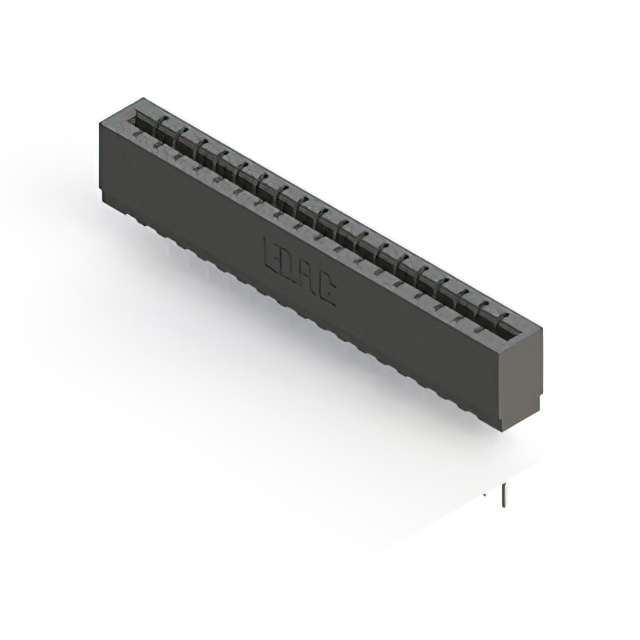

EDAC Inc. 717-018-541-101	Polyester Thermoplastic			Press-Fit Wire Wrap	Copper Alloy	3.96 mm	0.156 in		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Non Specified - Single Edge	Gold	18	30 Áin	0.76 Ám	Cantilever	Single	Black	-40 C	105 ░C	1	1	18
