628-36W Series
Manufacturer: EDAC Inc.
Beta
⌘K

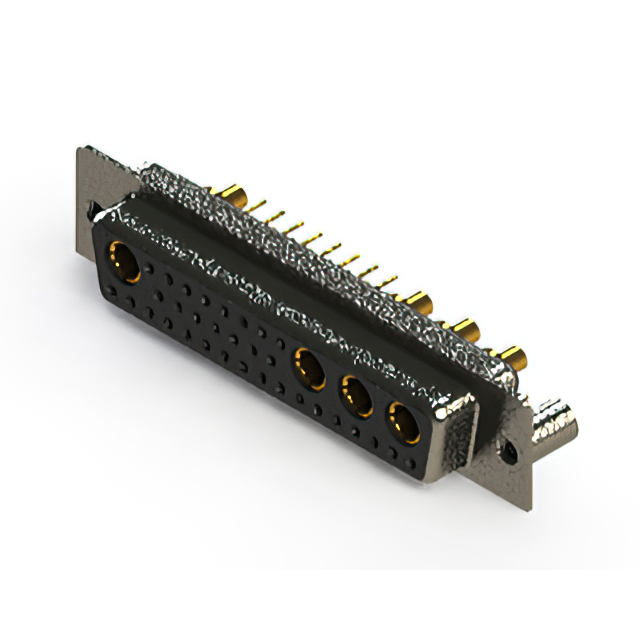

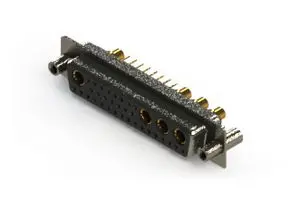

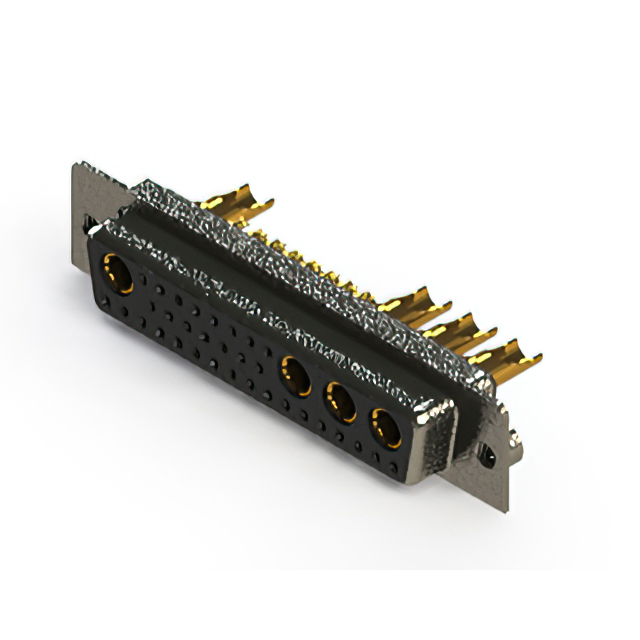

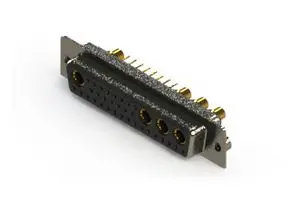

CONN D-SUB RCPT 36POS VERT SLDR
| Part | Voltage Rating | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Type | Connector Style | Material Flammability Rating | Contact Finish Thickness | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Connector Type | Contact Finish | Flange Feature | Number of Rows [custom] | Mounting Type | Features | Termination | Current Rating (Amps) | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [custom] | Flange Feature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | Signal and Power | Combo D-Sub | UL94 V-0 | Flash | 36W4 D DD | 5 | 20A 5A | Receptacle Female Sockets | Gold | Board Side (4-40) | 2 | Through Hole | Board Lock Shielded | Solder | ||||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | Signal and Power | Combo D-Sub | UL94 V-0 | Flash | 36W4 D DD | 5 | Receptacle Female Sockets | Gold | Board Side (4-40) | 2 | Through Hole | Board Lock Shielded | Solder | 5 A 30 A | Nickel Plated Steel | |||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | Signal and Power | Combo D-Sub | UL94 V-0 | Flash | 36W4 D DD | 5 | Receptacle Female Sockets | Gold | Board Side (M3) | 2 | Through Hole | Shielded | Solder | 5 A 40 A | Nickel Plated Steel | |||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | Signal and Power | Combo D-Sub | UL94 V-0 | Flash | 36W4 D DD | 5 | Receptacle Female Sockets | Gold | Board Side (4-40) | 2 | Through Hole | Shielded | Solder | 5 A 40 A | Nickel Plated Steel | |||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | Signal and Power | Combo D-Sub | UL94 V-0 | 36W4 D DD | 5 | 20A 5A | Receptacle Female Sockets | Gold | Board Side (M3) | 2 | Through Hole | Board Lock Shielded | Solder | Nickel Plated Steel | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | Signal and Power | Combo D-Sub | UL94 V-0 | Flash | 36W4 D DD | 5 | 20A 5A | Receptacle Female Sockets | Gold | Board Side (4-40) | 2 | Through Hole | Shielded | Solder | Nickel Plated Steel | |||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | Signal and Power | Combo D-Sub | UL94 V-0 | Flash | 36W4 D DD | 5 | Receptacle Female Sockets | Gold | 2 | Through Hole | Shielded | Solder | 5 A 40 A | 4-40 | 4-40 | |||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | Signal and Power | Combo D-Sub | UL94 V-0 | 36W4 D DD | 5 | Receptacle Female Sockets | Gold | Board Side (4-40) | 2 | Free Hanging (In-Line) | Shielded | 5 A 30 A | 30 Áin | 0.76 Ám | ||||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | Signal and Power | Combo D-Sub | UL94 V-0 | 36W4 D DD | 5 | 10A 5A | Receptacle Female Sockets | Gold | Board Side (M3) | 2 | Through Hole | Shielded | Solder | Nickel Plated Steel | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | Signal and Power | Combo D-Sub | UL94 V-0 | 36W4 D DD | 5 | 10A 5A | Receptacle Female Sockets | Gold | Board Side (M3) | 2 | Through Hole | Board Lock Shielded | Solder | Nickel Plated Steel | 30 Áin | 0.76 Ám |
