25279 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

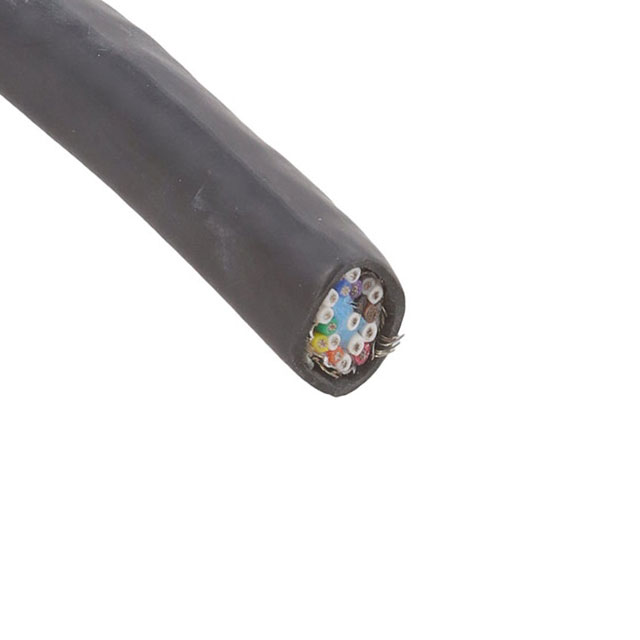

MULTI-PAIR 18COND 24AWG 1000'
| Part | Shield Coverage | Shield Material | Shield Type | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length | Length | Jacket (Insulation) Material | Conductor Material | Voltage | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | Poly-Vinyl Chloride (PVC) | -30 ░C | 90 °C | 7 | 32 AWG | Slate | 18 | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | 24 AWG | 9.14 mm | 0.36 in | Multi-Pair | 304.8 m | 1000 ft | Polyurethane (PU) | Copper Tinned | 300 VDC | ISO 10993 UL Style 20668 | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | Poly-Vinyl Chloride (PVC) | -30 ░C | 90 °C | 7 | 32 AWG | Black | 18 | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | 24 AWG | 9.14 mm | 0.36 in | Multi-Pair | 304.8 m | 1000 ft | Polyurethane (PU) | Copper Tinned | 300 VDC | ISO 10993 UL Style 20668 | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Braid Foil | Poly-Vinyl Chloride (PVC) | -30 ░C | 90 °C | 7 | 32 AWG | Black | 18 | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | 24 AWG | 9.14 mm | 0.36 in | Multi-Pair | Polyurethane (PU) | Copper Tinned | 300 VDC | ISO 10993 UL Style 20668 | 100 ft | 30.5 m |
