HS2P2F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCPT FMALE 2POS GOLD SOLDER
| Part | Voltage Rating | Fastening Type | Number of Positions | Contact Finish - Mating | Ingress Protection | Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Connector Type | Orientation | Shielding | Shell Finish | Insert Material | Primary Material | Termination | Shell Material | Mounting Type | Mounting Feature | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

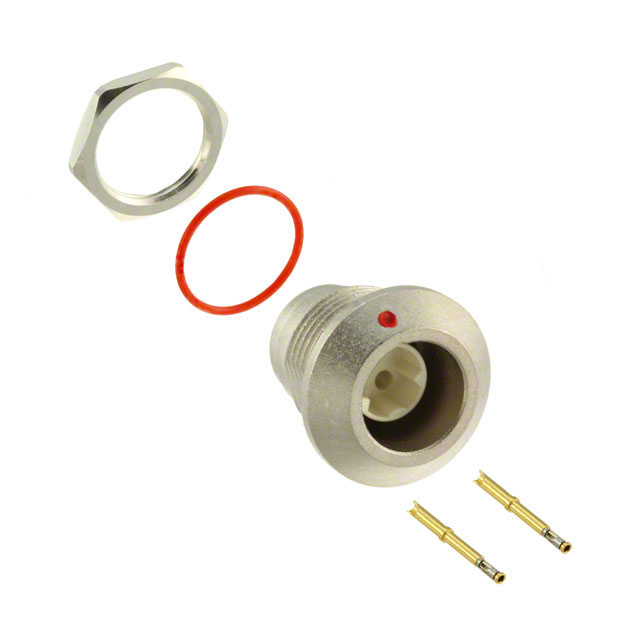

 Switchcraft Inc. | 125 VAC | Push-Pull | 2 | Gold | IP66 IP67 IP68 | Silver | Copper Alloy | 135 °C | -40 °C | Agriculture Audio General Medical Testing Equipment & Measurement | Receptacle Female Sockets | Keyed | Shielded | Electroless Nickel | Liquid Crystal Polymer (LCP) | Metal | Solder | Copper Alloy | Panel Mount Through Hole | Bulkhead - Front Side Nut | |

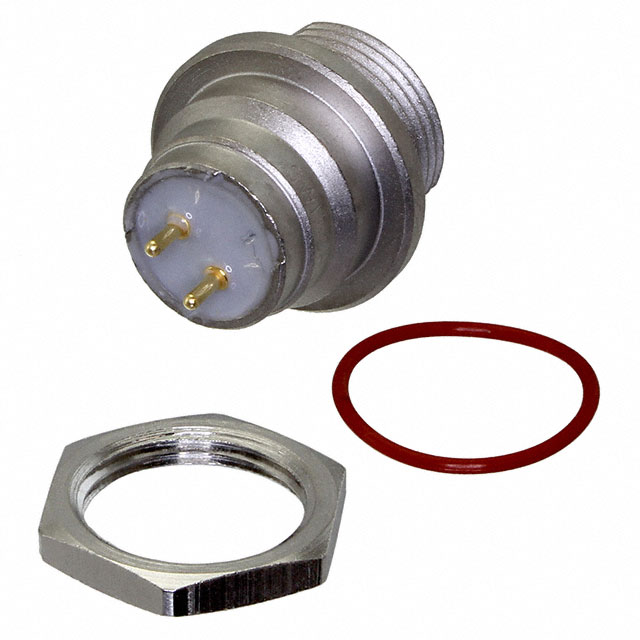

 Switchcraft Inc. | 125 VAC | Push-Pull | 2 | Gold | IP66 IP67 IP68 | Silver | Copper Alloy | 135 °C | -40 °C | Agriculture Audio General Medical Testing Equipment & Measurement | Receptacle Female Sockets | Keyed | Shielded | Electroless Nickel | Liquid Crystal Polymer (LCP) | Metal | Crimp Solder Cup | Copper Alloy | Bulkhead - Rear Side Nut | UL94 HF-1 |
