APC-8 Series

Catalog

LED DRIVER CC AC/DC 8-16V 500MA

Part	Mounting Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Termination Style	Features	Voltage - Isolation	Ratings	Topology	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Approval Agency	Efficiency

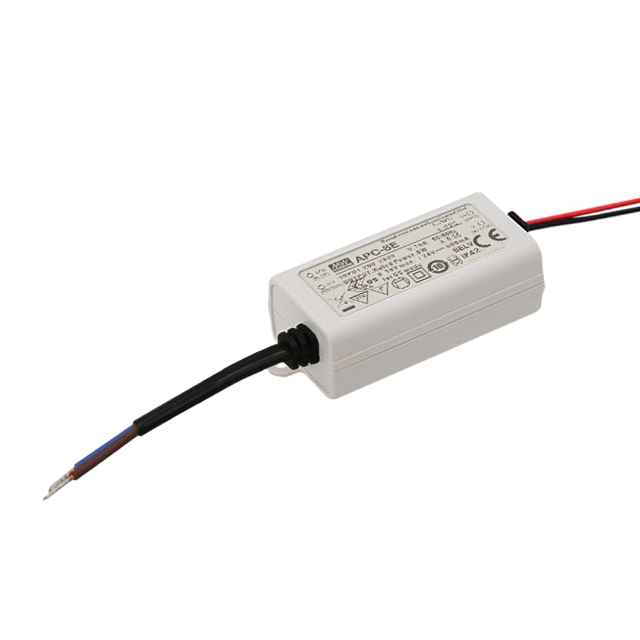

MEAN WELL USA Inc. APC-8E-500	Chassis Mount	264 VAC	500 mA	-30 ░C	70 °C	8 W	Wire Leads	SCP	3750 VDC	IP42	AC DC Converter	180 VAC	0.93 "	23.5 mm	1.18 "	2.36 "	30 mm	60 mm	Constant Current	1	16 V	8 V	CB CE ENEC	79 %
MEAN WELL USA Inc. APC-8E-250	Chassis Mount	264 VAC	250 mA	-30 ░C	70 °C	8 W	Wire Leads	SCP	3750 VDC	IP42	AC DC Converter	180 VAC	0.93 "	23.5 mm	1.18 "	2.36 "	30 mm	60 mm	Constant Current	1	32 VDC	16 V	CB CE ENEC	81.5 %
MEAN WELL USA Inc. APC-8E-350	Chassis Mount	264 VAC	350 mA	-30 ░C	70 °C	8 W	Wire Leads	SCP	3750 VDC	IP42	AC DC Converter	180 VAC	0.93 "	23.5 mm	1.18 "	2.36 "	30 mm	60 mm	Constant Current	1	23 V	11 V	CB CE ENEC	80.5 %

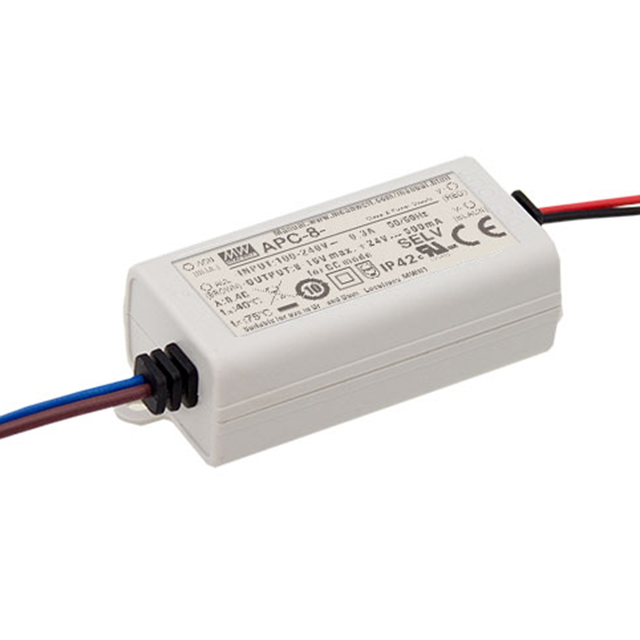

MEAN WELL USA Inc. APC-8-700	Chassis Mount	264 VAC	700 mA	-30 ░C	70 °C	8 W	Wire Leads	SCP	3750 VDC	IP42	AC DC Converter	90 VAC	0.93 "	23.5 mm	1.18 "	2.36 "	30 mm	60 mm	Constant Current	1	11 V	6 V	CCC CE cURus	80 %
MEAN WELL USA Inc. APC-8-250	Chassis Mount	264 VAC	250 mA	-30 ░C	70 °C	8 W	Wire Leads	SCP	3750 VDC	IP42	AC DC Converter	90 VAC	0.93 "	23.5 mm	1.18 "	2.36 "	30 mm	60 mm	Constant Current	1	32 VDC	16 V	CCC CE cURus	82.5 %
MEAN WELL USA Inc. APC-8-350	Chassis Mount	264 VAC	350 mA	-30 ░C	70 °C	8 W	Wire Leads	SCP	3750 VDC	IP42	AC DC Converter	90 VAC	0.93 "	23.5 mm	1.18 "	2.36 "	30 mm	60 mm	Constant Current	1	23 V	11 V	CCC CE cURus	81.5 %
MEAN WELL USA Inc. APC-8E-700	Chassis Mount	264 VAC	700 mA	-30 ░C	70 °C	8 W	Wire Leads	SCP	3750 VDC	IP42	AC DC Converter	180 VAC	0.93 "	23.5 mm	1.18 "	2.36 "	30 mm	60 mm	Constant Current	1	11 V	6 V	CB CE ENEC	77.5 %
