TE0600 Series

Catalog

IC MOD LX150 125MHZ 256MB

Part	Core Processor	RAM Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Module/Board Type	Connector Type	Flash Size	Speed	Operating Temperature [Max]	Operating Temperature [Min]

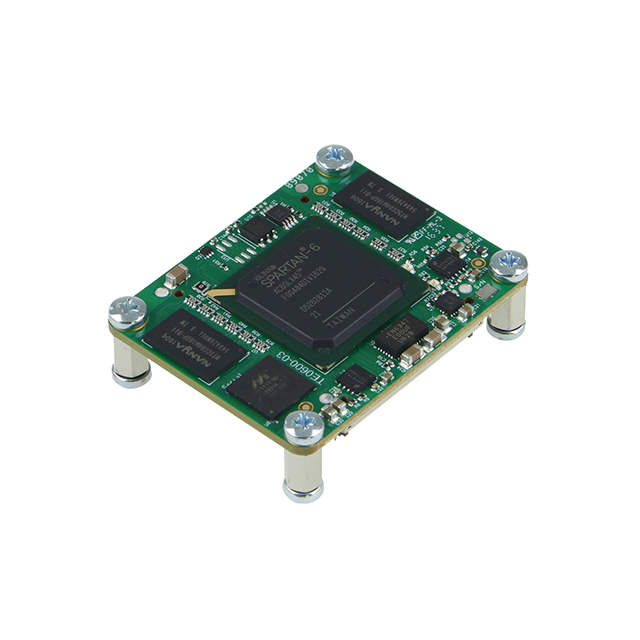

Trenz Electronic TE0600-03IVFN	Spartan-6 LX-150	256 MB	50 mm	40 mm	1.97 "	1.57 "	FPGA Core	Samtec LSHM	16 MB	125 MHz	85 °C	-40 C

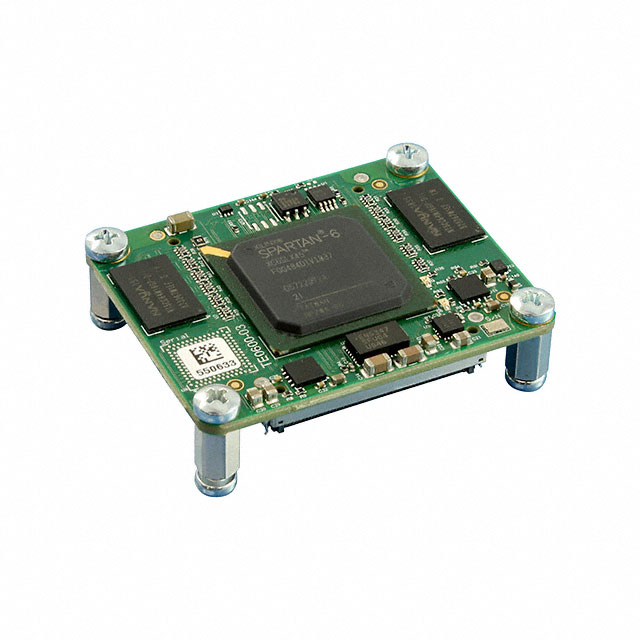

Trenz Electronic TE0600-03IN	Spartan-6 LX-45	256 MB	50 mm	40 mm	1.97 "	1.57 "	FPGA Core	Samtec LSHM	16 MB	125 MHz	85 °C	-40 C
Trenz Electronic TE0600-03IMVF	Spartan-6 LX-150	1 GB	50 mm	40 mm	1.97 "	1.57 "	FPGA Core	Samtec LSHM	16 MB	125 MHz	85 °C	-40 C

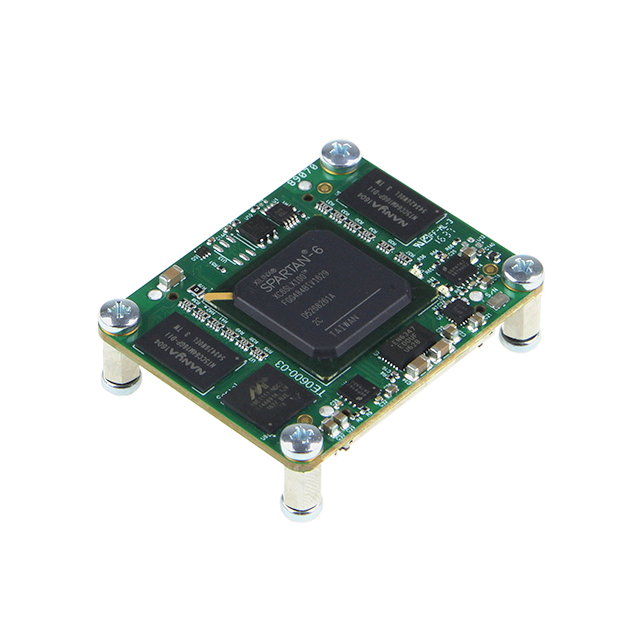

Trenz Electronic TE0600-03BM	Spartan-6 LX-100	1 GB	50 mm	40 mm	1.97 "	1.57 "	FPGA Core	Samtec LSHM	16 MB	125 MHz	70 °C	0 °C
