SL Wire-to-Board Header, Surface Mount, Single Row, Vertical, 3.05mm Pocket, Shrouded, 14 Circuits, 0.76µm Gold (Au) Selective Plating
SL Wire-to-Board Header, Surface Mount, Single Row, Vertical, 3.05mm Pocket, Shrouded, 14 Circuits, 0.76µm Gold (Au) Selective Plating
SL Wire-to-Board Header, Surface Mount, Single Row, Vertical, 3.05mm Pocket, Shrouded, 14 Circuits, 0.76µm Gold (Au) Selective Plating
| Part | Termination | Contact Material | Connector Type | Fastening Type | Insulation Material | Mounting Type | Contact Type | Pitch - Mating | Pitch - Mating | Shrouding | Contact Finish - Post | Contact Finish - Mating | Number of Rows | Number of Positions | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating [x] | Insulation Height | Insulation Height | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

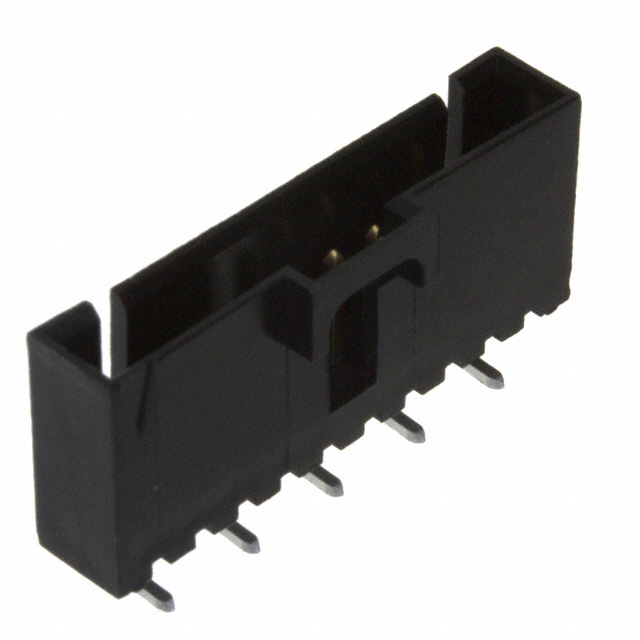

 Molex | Solder | Phosphor Bronze | Header | Latch Holder | Polyester Glass Filled | Surface Mount | Male Pin | 0.1 in | 2.54 mm | Shrouded - 4 Wall | Tin | Gold | 1 | 10 | All | 6.1 mm | 0.24 in | 11.43 mm | 0.45 in | Square | 74.8 Áin | 1.9 Ám | UL94 V-0 | Automotive General Purpose Industrial Medical | 15 µin | 0.38 µm | Board to Cable/Wire | Black |

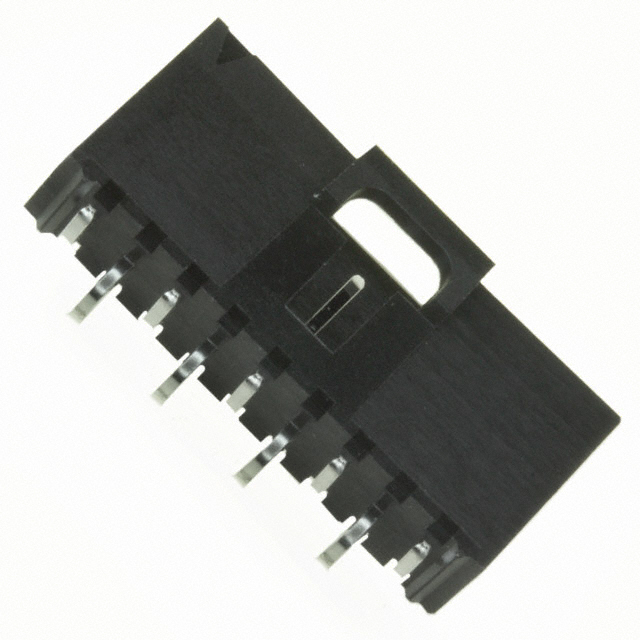

 Molex | Solder | Phosphor Bronze | Header | Latch Holder | Polyester Glass Filled | Surface Mount | Male Pin | 0.1 in | 2.54 mm | Shrouded - 4 Wall | Tin | 1 | 9 | All | 6.1 mm | 0.24 in | 11.43 mm | 0.45 in | Square | 150 Áin | 3.81 Ám | UL94 V-0 | Automotive General Purpose Industrial Medical | 150 Áin | 3.81 Ám | Board to Cable/Wire | Black | |

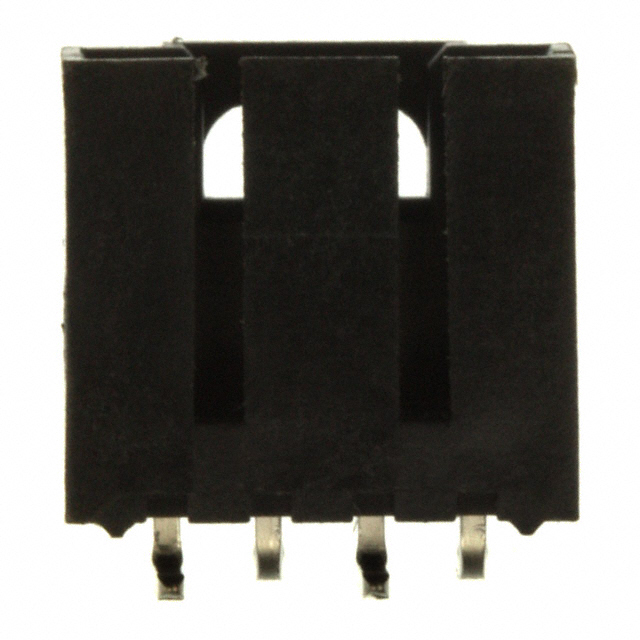

 Molex | Solder | Phosphor Bronze | Header | Latch Holder | Polyester Glass Filled | Surface Mount | Male Pin | 0.1 in | 2.54 mm | Shrouded - 4 Wall | Tin | Gold | 1 | 4 | All | 6.1 mm | 0.24 in | 11.43 mm | 0.45 in | Square | 74.8 Áin | 1.9 Ám | UL94 V-0 | Automotive General Purpose Industrial Medical | 15 µin | 0.38 µm | Board to Cable/Wire | Black |

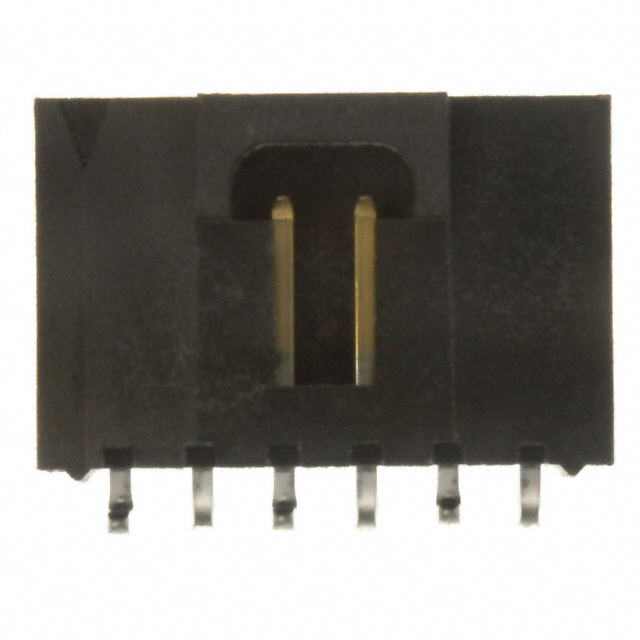

 Molex | Solder | Phosphor Bronze | Header | Latch Holder | Polyester Glass Filled | Surface Mount | Male Pin | 0.1 in | 2.54 mm | Shrouded - 4 Wall | Tin | Gold | 1 | 6 | All | 6.1 mm | 0.24 in | 11.43 mm | 0.45 in | Square | 74.8 Áin | 1.9 Ám | UL94 V-0 | Automotive General Purpose Industrial Medical | 15 µin | 0.38 µm | Board to Cable/Wire | Black |

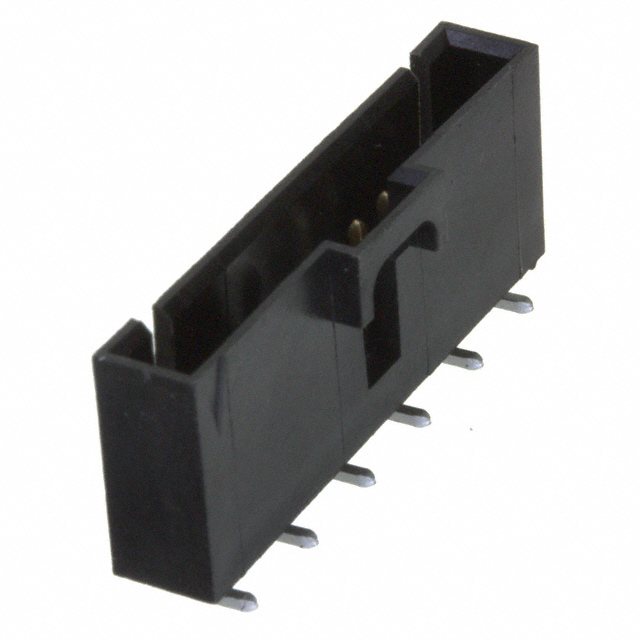

 Molex | Solder | Phosphor Bronze | Header | Latch Holder | Polyester Glass Filled | Surface Mount | Male Pin | 0.1 in | 2.54 mm | Shrouded - 4 Wall | Tin | Gold | 1 | 11 | All | 6.1 mm | 0.24 in | 11.43 mm | 0.45 in | Square | 74.8 Áin | 1.9 Ám | UL94 V-0 | Automotive General Purpose Industrial Medical | 15 µin | 0.38 µm | Board to Cable/Wire | Black |

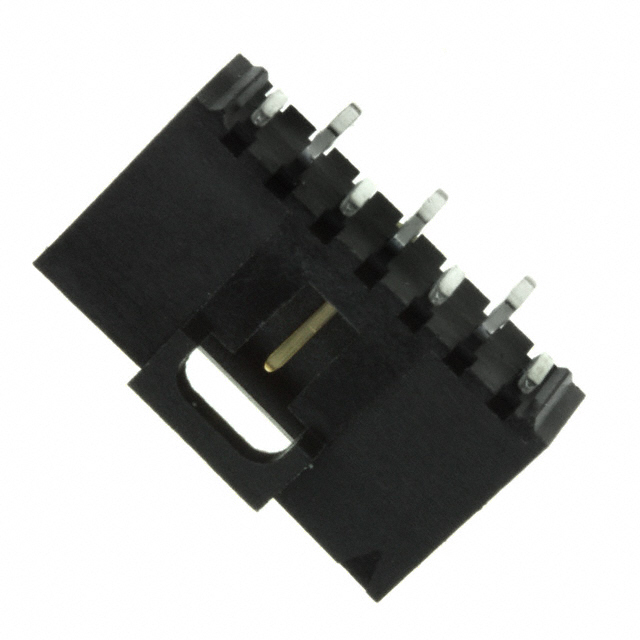

 Molex | Solder | Phosphor Bronze | Header | Latch Holder | Polyester Glass Filled | Surface Mount | Male Pin | 0.1 in | 2.54 mm | Shrouded - 4 Wall | Tin | Gold | 1 | 7 | All | 6.1 mm | 0.24 in | 11.43 mm | 0.45 in | Square | 74.8 Áin | 1.9 Ám | UL94 V-0 | Automotive General Purpose Industrial Medical | 15 µin | 0.38 µm | Board to Cable/Wire | Black |

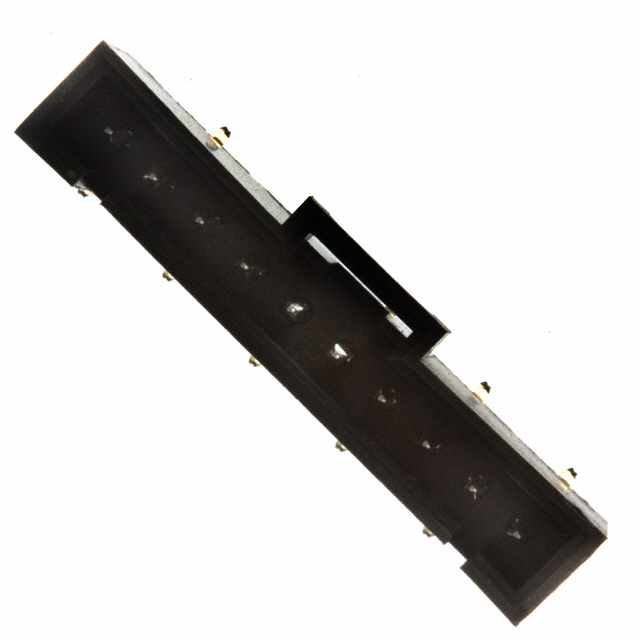

 Molex | Solder | Phosphor Bronze | Header | Latch Holder | Polyester Glass Filled | Surface Mount | Male Pin | 0.1 in | 2.54 mm | Shrouded - 4 Wall | Tin | 1 | 10 | All | 6.1 mm | 0.24 in | 11.43 mm | 0.45 in | Square | 150 Áin | 3.81 Ám | UL94 V-0 | Automotive General Purpose Industrial Medical | 150 Áin | 3.81 Ám | Board to Cable/Wire | Black |
