K50PTC Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

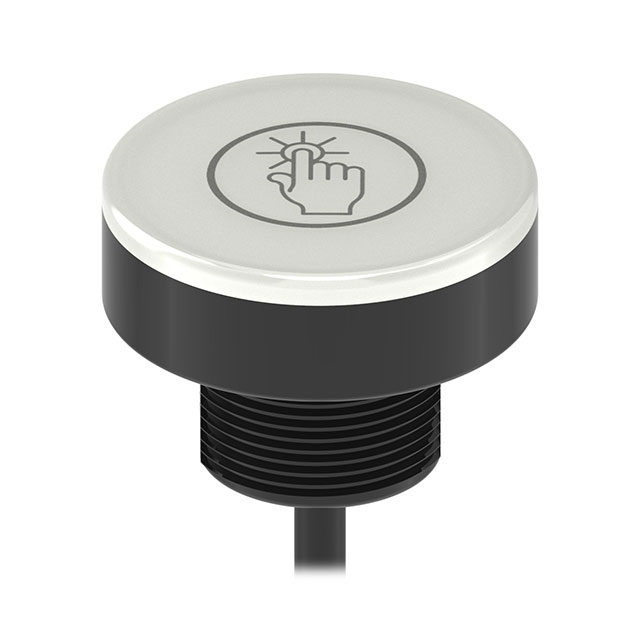

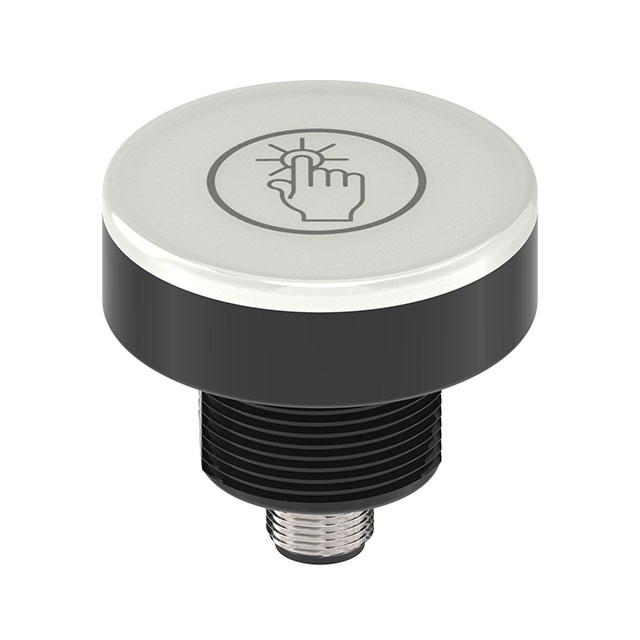

K50 PRO COMPACT TOUCH SERIES: 14-COLOR RGB TOUCH SENSOR
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Approval Agency | Circuit | Response Time | Actuator Type | Illumination Type, Color | Panel Cutout Dimensions [diameter] | Ingress Protection | Voltage - Supply [Min] | Voltage - Supply [Max] | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | Panel Mount Front | -40 C | 50 °C | Cable with Connector (M12) | CE cULus | SPST-NO | 300 ms | Button Flush Round | Blue Green LED Red | 30 mm | IP67/IP69K | 12 VDC | 30 VDC | Off-Mom |
BANNER ENGINEERING | Panel Mount Front | -40 C | 50 °C | Cable with Connector (M12) | CE cULus | 300 ms | Button Flush Round | 30 mm | IP67/IP69K | 18 V | 30 VDC | |||
BANNER ENGINEERING | Panel Mount Front | -40 C | 50 °C | Cable with Connector (M12) | CE cULus | SPST-NO | 300 ms | Button Flush Round | Green LED Red Yellow | 30 mm | IP67/IP69K | 12 VDC | 30 VDC | Off-Mom |
BANNER ENGINEERING | Panel Mount Front | -40 C | 50 °C | Cable Leads | CE cULus | SPST-NO | 300 ms | Button Flush Round | Blue Green LED Red | 30 mm | IP67/IP69K | 12 VDC | 30 VDC | Off-Mom |
BANNER ENGINEERING | Panel Mount Front | -40 C | 50 °C | Cable Leads | CE cULus | SPST-NO | 300 ms | Button Flush Round | Green LED Red Yellow | 30 mm | IP67/IP69K | 12 VDC | 30 VDC | Off-Mom |
 BANNER ENGINEERING | Panel Mount Front | -40 C | 50 °C | Connector (M12) | CE cULus | SPST-NO | 300 ms | Button Flush Round | Blue Green LED Red | 30 mm | IP67/IP69K | 12 VDC | 30 VDC | Off-Mom |
 BANNER ENGINEERING | Panel Mount Front | -40 C | 50 °C | Connector (M12) | CE cULus | SPST-NO | 300 ms | Button Flush Round | Green LED Red Yellow | 30 mm | IP67/IP69K | 12 VDC | 30 VDC | Off-Mom |
