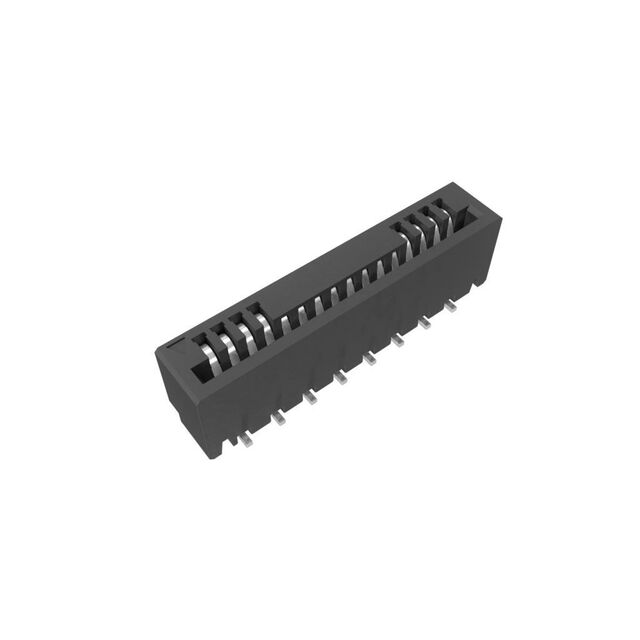

HFW16S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN FFC FPC VERT 16POS 1MM SMD
| Part | Housing Color | Mating Cycles | Termination | Cable End Type | Voltage Rating | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Flat Flex Type | Height Above Board [z] | Height Above Board [z] | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] | Pitch | Pitch | Mounting Type | Contact Finish | Housing Material | Material Flammability Rating | Connector/Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | 30 | Solder | Straight Tapered | 100 V | 16 | -55 C | 85 °C | Phosphor Bronze | FFC FPC | 0.209 in | 5.3 mm | 0.3 mm | 0.33 mm | 1 mm | 0.039 in | Surface Mount | Tin | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | Contacts Vertical - 1 Sided |
