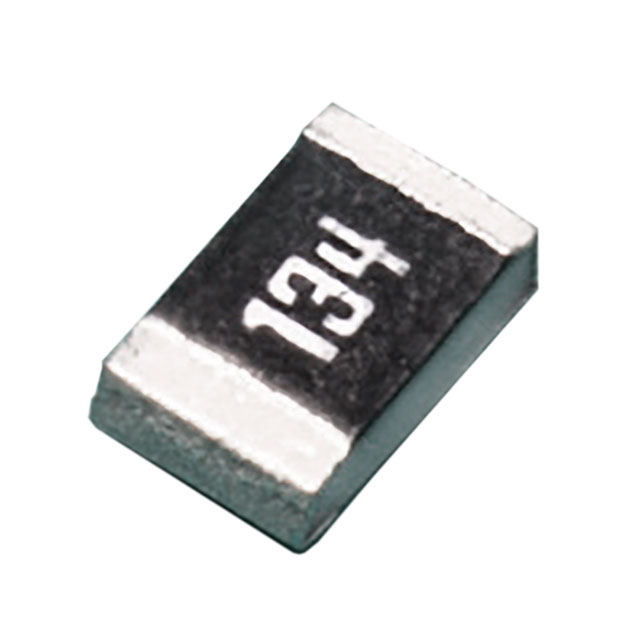

HV73V2A Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

RES THICK FILM 0805 287K OHM 0.5% 0.25W(1/4W) ±100PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200

...

Part	Resistance	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Terminations	Features	Ratings	Power (Watts)	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Composition	Supplier Device Package	Tolerance
KOA Speer Electronics, Inc. HV73V2ATTD2873D	287 kOhms	100 ppm/°C	155 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	2	Automotive AEC-Q200 High Voltage Moisture Resistant	AEC-Q200	0.25 W	250 mW	0.6 mm	0.024 in	0805	Thick Film	0805
KOA Speer Electronics, Inc. HV73V2ATTD274G	270 kOhms	100 ppm/°C	155 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	2	Automotive AEC-Q200 High Voltage Moisture Resistant	AEC-Q200	0.25 W	250 mW	0.6 mm	0.024 in	0805	Thick Film	0805	2 %
KOA Speer Electronics, Inc. HV73V2ATTD684J	680 kOhms	100 ppm/°C	155 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	2	Automotive AEC-Q200 High Voltage Moisture Resistant	AEC-Q200	0.25 W	250 mW	0.6 mm	0.024 in	0805	Thick Film	0805	5 %
KOA Speer Electronics, Inc. HV73V2ATTD3904F	3.9 MOhms	100 ppm/°C	155 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	2	Automotive AEC-Q200 High Voltage Moisture Resistant	AEC-Q200	0.25 W	250 mW	0.6 mm	0.024 in	0805	Thick Film	0805	1 %
KOA Speer Electronics, Inc. HV73V2ATTD4994F	4.99 MOhms	100 ppm/°C	155 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	2	Automotive AEC-Q200 High Voltage Moisture Resistant	AEC-Q200	0.25 W	250 mW	0.6 mm	0.024 in	0805	Thick Film	0805	1 %
KOA Speer Electronics, Inc. HV73V2ATTD2803D	280 kOhms	100 ppm/°C	155 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	2	Automotive AEC-Q200 High Voltage Moisture Resistant	AEC-Q200	0.25 W	250 mW	0.6 mm	0.024 in	0805	Thick Film	0805
KOA Speer Electronics, Inc. HV73V2ATTD3833F	383 kOhms	100 ppm/°C	155 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	2	Automotive AEC-Q200 High Voltage Moisture Resistant	AEC-Q200	0.25 W	250 mW	0.6 mm	0.024 in	0805	Thick Film	0805	1 %
KOA Speer Electronics, Inc. HV73V2ATTD6044F	6.04 MOhms	100 ppm/°C	155 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	2	Automotive AEC-Q200 High Voltage Moisture Resistant	AEC-Q200	0.25 W	250 mW	0.6 mm	0.024 in	0805	Thick Film	0805	1 %
KOA Speer Electronics, Inc. HV73V2ATTD1873D	187 kOhms	100 ppm/°C	155 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	2	Automotive AEC-Q200 High Voltage Moisture Resistant	AEC-Q200	0.25 W	250 mW	0.6 mm	0.024 in	0805	Thick Film	0805
KOA Speer Electronics, Inc. HV73V2ATTD4754F	4.75 MOhms	100 ppm/°C	155 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	2	Automotive AEC-Q200 High Voltage Moisture Resistant	AEC-Q200	0.25 W	250 mW	0.6 mm	0.024 in	0805	Thick Film	0805	1 %
