305-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row [custom]	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Read Out	Flange Feature	Features	Contact Finish Thickness	Contact Finish Thickness	Termination	Card Type	Number of Rows [custom]	Contact Type	Color	Number of Positions	Gender	Pitch	Pitch	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 305-080-555-208	2	Polyester Thermoplastic	40	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Dual	4-40 Flush Mount Threaded Insert Top Opening	Card Extender	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Semi Bellows	Green	80	Female	3.96 mm	0.156 in	Gold

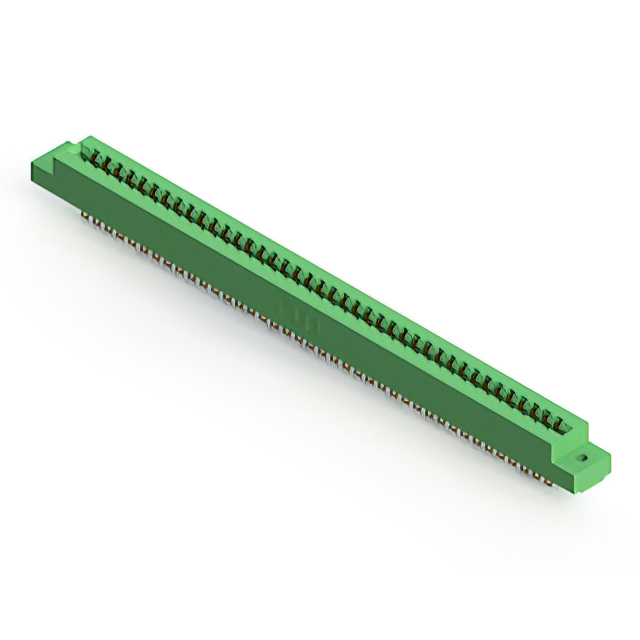

EDAC Inc. 305-080-555-502	2	Polyester Thermoplastic	40	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Dual	Flush Mount Top Opening Unthreaded	Card Extender	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Semi Bellows	Green	80	Female	3.96 mm	0.156 in	Gold	3.25 mm	0.128 "

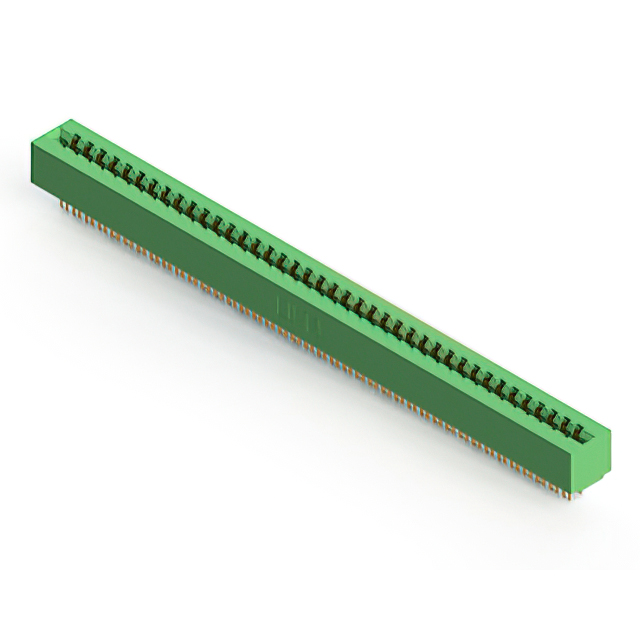

EDAC Inc. 305-080-500-501	2	Polyester Thermoplastic	40	Free Hanging (In-Line)	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Dual			0.25 Ám	10 Áin	Solder Eyelet(s)	Non Specified - Dual Edge	2	Semi Bellows	Green	80	Female	3.96 mm	0.156 in	Gold

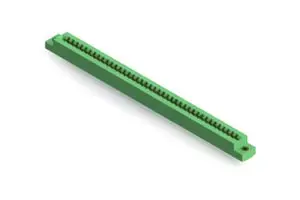

EDAC Inc. 305-080-521-507	2	Polyester Thermoplastic	40	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Dual	Flush Mount M3 Threaded Insert Top Opening		0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Semi Bellows	Green	80	Female	3.96 mm	0.156 in	Gold

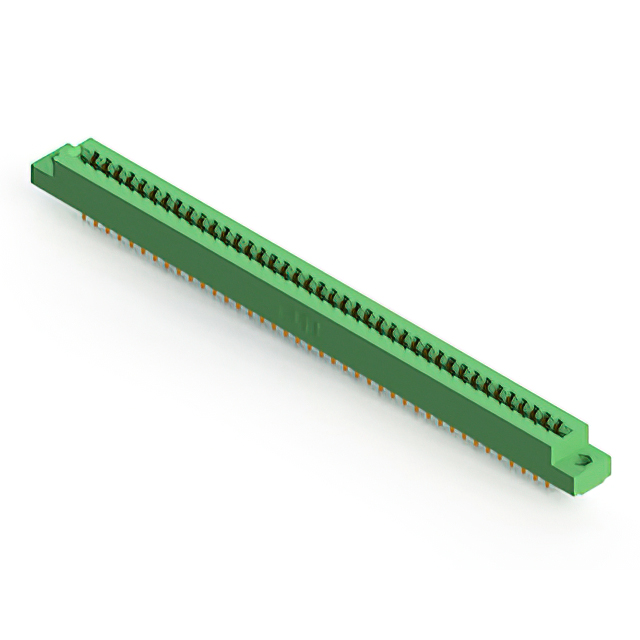

EDAC Inc. 305-080-520-504	2	Polyester Thermoplastic	40	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Dual	Flush Mount Top Opening Unthreaded		0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Semi Bellows	Green	80	Female	3.96 mm	0.156 in	Gold	3.96 mm	0.156 "
EDAC Inc. 305-080-500-204	2	Polyester Thermoplastic	40	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Dual	Flush Mount Top Opening Unthreaded		0.25 Ám	10 Áin	Solder Eyelet(s)	Non Specified - Dual Edge	2	Semi Bellows	Green	80	Female	3.96 mm	0.156 in	Gold	3.96 mm	0.156 "

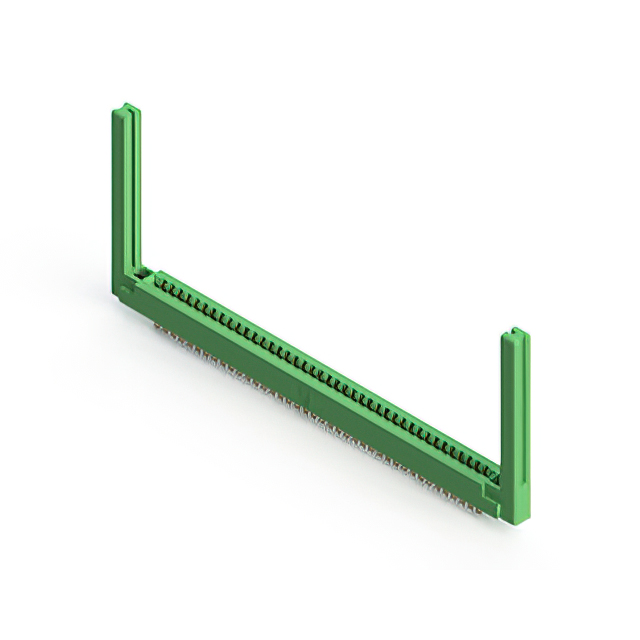

EDAC Inc. 305-080-555-258	2	Polyester Thermoplastic	40	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Dual	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Semi Bellows	Green	80	Female	3.96 mm	0.156 in	Gold
EDAC Inc. 305-080-500-568	2	Polyester Thermoplastic	40	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Dual	4-40 Flush Mount Threaded Insert Top Opening		0.25 Ám	10 Áin	Solder Eyelet(s)	Non Specified - Dual Edge	2	Semi Bellows	Green	80	Female	3.96 mm	0.156 in	Gold

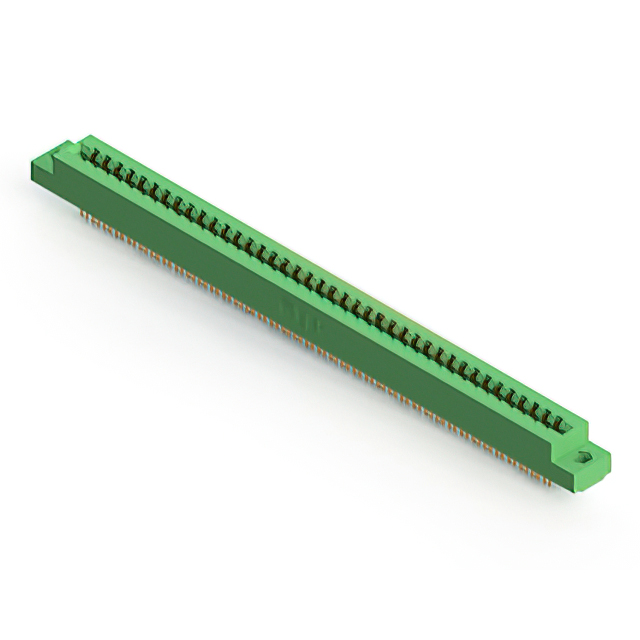

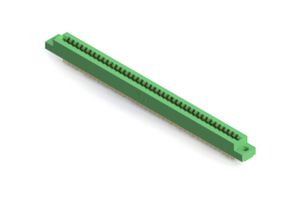

EDAC Inc. 305-080-500-504	2	Polyester Thermoplastic	40	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Dual	Flush Mount Top Opening Unthreaded		0.25 Ám	10 Áin	Solder Eyelet(s)	Non Specified - Dual Edge	2	Semi Bellows	Green	80	Female	3.96 mm	0.156 in	Gold	3.96 mm	0.156 "

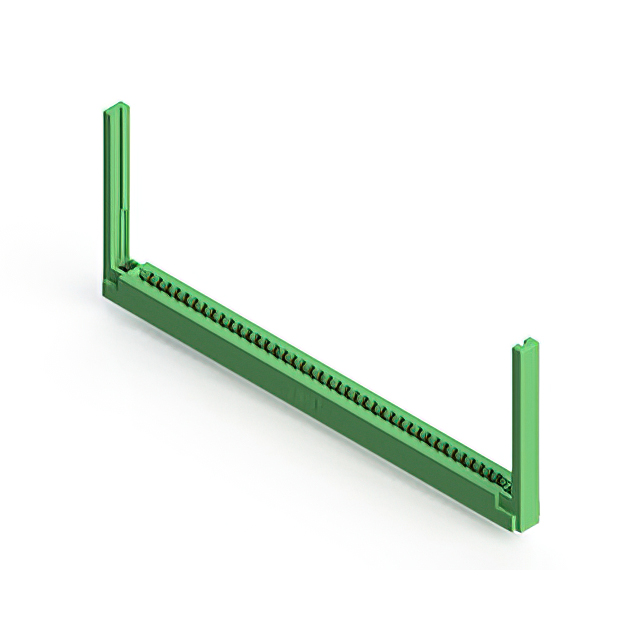

EDAC Inc. 305-080-521-568	2	Polyester Thermoplastic	40	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Dual	4-40 Flush Mount Threaded Insert Top Opening		0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Semi Bellows	Green	80	Female	3.96 mm	0.156 in	Gold
