D2899 Series
Manufacturer: Harwin Inc.
Beta
⌘K

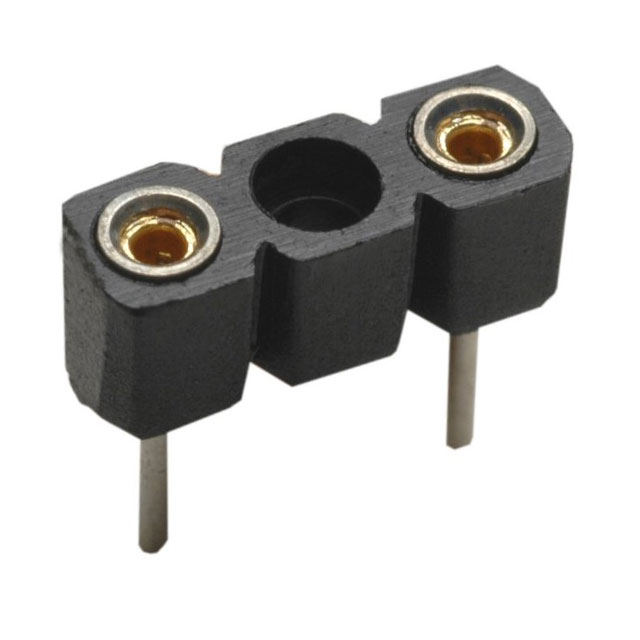

IC & COMPONENT SOCKET, 2 CONTACTS, 5.08 MM, GOLD
| Part | Contact Resistance | Material Flammability Rating | Termination Post Length | Termination Post Length | Current Rating (Amps) | Contact Finish - Post | Type | Type | Type | Contact Material - Mating | Housing Material | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Post | Pitch - Post | Contact Material - Post [custom] | Termination | Contact Finish Thickness - Mating | Contact Finish - Mating | Features | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 15 mOhm | UL94 V-0 | 3 mm | 0.118 in | 1.5 A | Tin | 7.62 mm | 0.3 in | DIP | Beryllium Copper | Glass Filled Nylon Polyamide (PA) | 0.2 " | 5.08 mm | -55 C | 125 °C | 5 µm | 196.9 µin | 0.2 in | 5.08 mm | Brass | Solder | Flash | Gold | Closed Frame | 2 | 3 | Through Hole |
