FR3M Series

Catalog

INTERFACE

Part	Technology	Supplier Device Package	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Package / Case	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Speed	Supplier Device Package

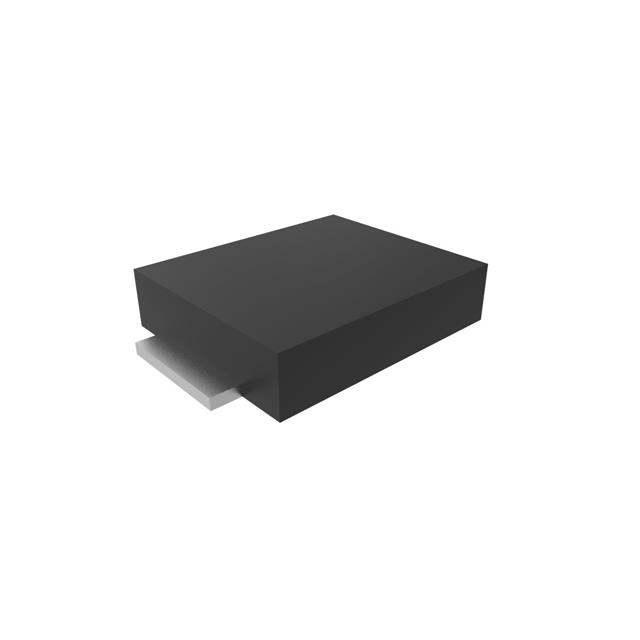

Micro Commercial Components FR3MBFL-TP	Standard	SMBF	30 pF	500 ns	5 µA	1000 V	150 °C	-55 °C	Surface Mount	DO-221AA SMB Flat Leads	1.3 V	3 A	200 mA 500 ns
Micro Commercial Components FR3M-TP	Standard	DO-214AB (SMC)	80 pF	500 ns	10 çA	1000 V	150 °C	-55 °C	Surface Mount	DO-214AB SMC	1.3 V	3 A	200 mA 500 ns
Micro Commercial Components FR3MB-TP	Standard	DO-214AA	80 pF	500 ns	10 çA	1000 V	150 °C	-55 °C	Surface Mount	DO-214AA SMB	1.3 V	3 A	200 mA 500 ns	SMB
