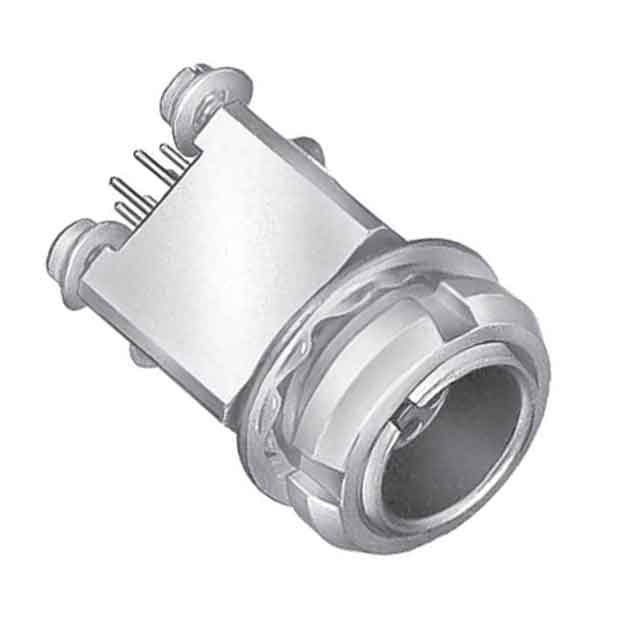

EYG.0B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 9POS GOLD SOLDER

Part	Contact Material	Shell Size - Insert	Color	Insert Material	Ingress Protection	Connector Type	Material Flammability Rating	Features	Fastening Type	Number of Positions	Shell Finish	Primary Material	Termination	Orientation [custom]	Shell Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Shell Size - Insert [custom]
LEMO EYG.0B.309.CLN	Bronze	309	Silver	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Receptacle Female Sockets	UL94 V-0	Board Lock	Push-Pull	9	Chrome	Metal	Solder	G	Brass	Bulkhead - Front Side Nut	-55 C	250 °C	Panel Mount Through Hole	2 A	Shielded	1.5 Ám	59 Áin	Gold

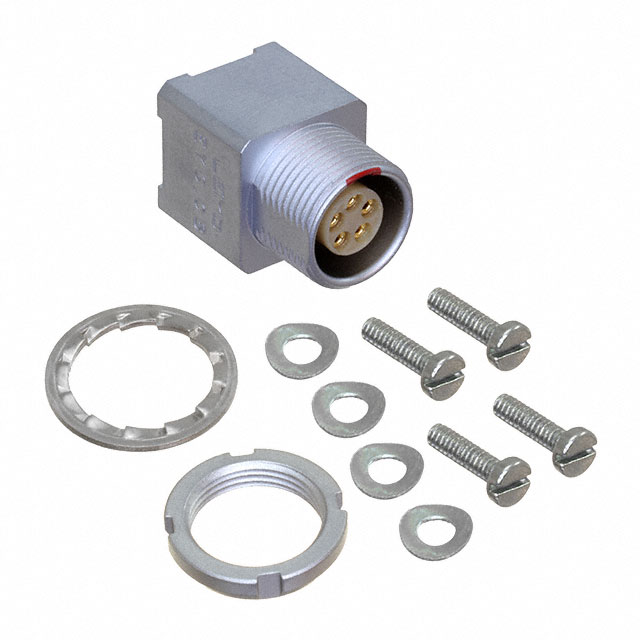

LEMO EYG.0B.305.CLN	Bronze	305	Silver	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Receptacle Female Sockets	UL94 V-0	Board Lock	Push-Pull	5	Chrome	Metal	Solder	G	Brass	Bulkhead - Front Side Nut	-55 C	250 °C	Panel Mount Through Hole	6.5 A	Shielded	1.5 Ám	59 Áin	Gold

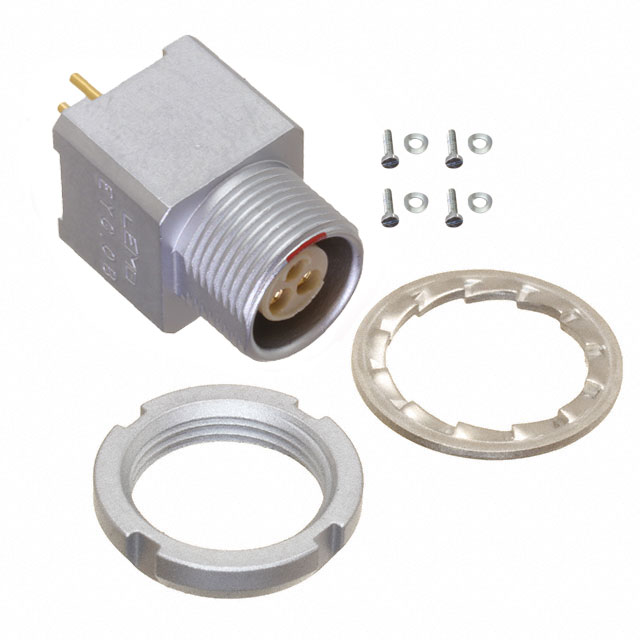

LEMO EYG.0B.303.CLN	Bronze	303	Silver	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Receptacle Female Sockets	UL94 V-0	Board Lock	Push-Pull		Chrome	Metal	Solder	G	Brass	Bulkhead - Front Side Nut	-55 C	250 °C	Panel Mount Through Hole	8 A	Shielded	1.5 Ám	59 Áin	Gold
LEMO EYG.0B.307.CLN	Bronze		Silver	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Receptacle Female Sockets	UL94 V-0	Board Lock	Push-Pull	7	Chrome	Metal	Solder	G	Brass	Bulkhead - Front Side Nut	-55 C	250 °C	Panel Mount Through Hole	2.5 A	Shielded	1.5 Ám	59 Áin	Gold	307
