NPPN051 Series

Catalog

CONN HDR 5POS 0.079 GOLD SMD

Part	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Fastening Type	Insulation Color	Contact Finish Thickness - Mating	Number of Positions	Number of Rows	Connector Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Finish - Post	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Contact Type	Termination	Contact Length - Post [x]	Contact Length - Post [x]

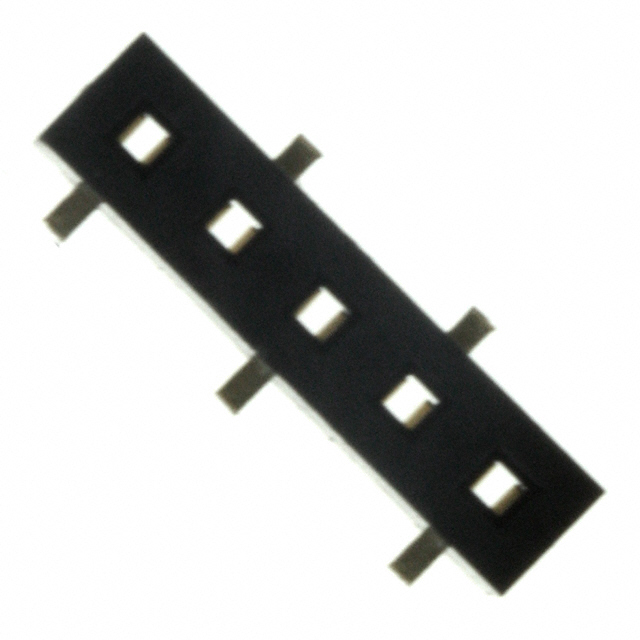

Sullins Connector Solutions NPPN051BFLD-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Square	-40 C	105 ░C	0.181 in	4.6 mm	Push-Pull	Black	Flash	5	1	Header	0.079 "	2 mm	150 VDC	Gold	UL94 V-0	All	Gold	Surface Mount	2 A	Female Socket	Solder

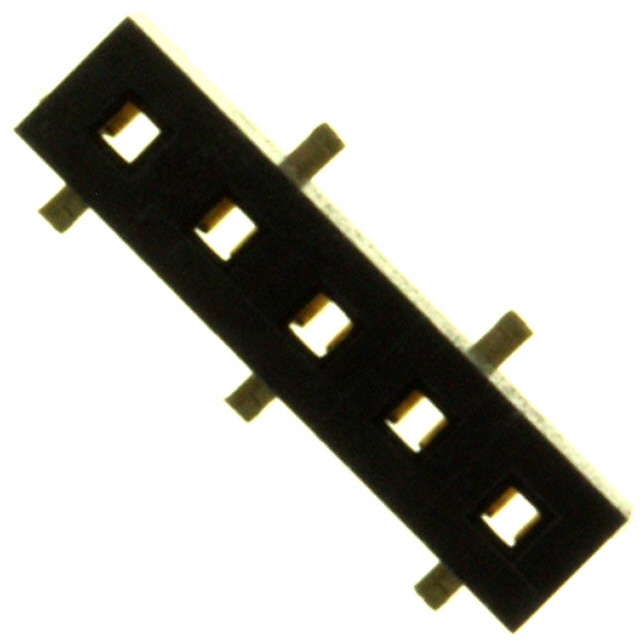

Sullins Connector Solutions NPPN051BFLC-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Square	-40 C	105 ░C	0.181 in	4.6 mm	Push-Pull	Black	Flash	5	1	Header	0.079 "	2 mm	150 VDC	Gold	UL94 V-0	All	Gold	Surface Mount	2 A	Female Socket	Solder

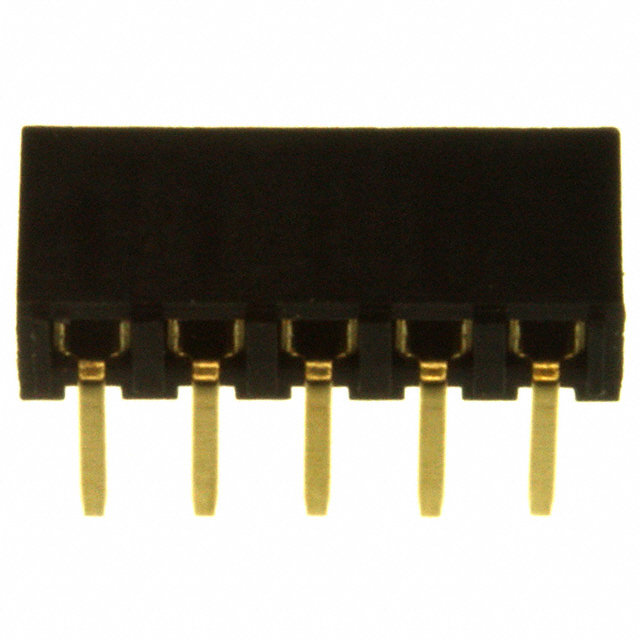

Sullins Connector Solutions NPPN051FGGN-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Square	-40 C	105 ░C			Push-Pull	Black	Flash	5	1	Header	0.079 "	2 mm		Gold	UL94 V-0	All	Gold	Right Angle Through Hole	2 A	Female Socket	Solder	0.122 in	3.1 mm
