81553 Series
Manufacturer: Belden Inc.
Beta
⌘K

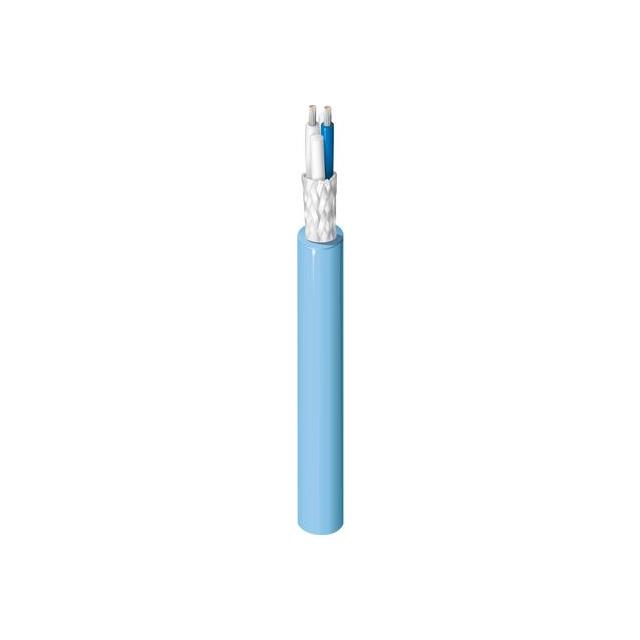

TWINAX 24AWG 77 OHM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | Conductor Material | Shield Material | Shield Coverage | Length [x] | Length [x] | Jacket Color | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Shield Type | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 200 °C | -55 C | 70 | 0.042 in | 1.07 mm | Tetrafluoroethylene (TFE) | Copper Alloy Silver Coated | Copper Alloy Silver Coated | 93 % | 152.4 m | 500 ft | Blue | 24 AWG | 0.129 " | 3.28 mm | Perfluoroalkoxy (PFA) | Braid | Twinaxial - Plenum | 19 | 36 AWG | 77 Ohms |
Belden Inc. | 200 °C | -55 C | 70 | 0.042 in | 1.07 mm | Tetrafluoroethylene (TFE) | Copper Alloy Silver Coated | Copper Alloy Silver Coated | 93 % | 304.8 m | 1000 ft | Blue | 24 AWG | 0.129 " | 3.28 mm | Perfluoroalkoxy (PFA) | Braid | Twinaxial - Plenum | 19 | 36 AWG | 77 Ohms |
