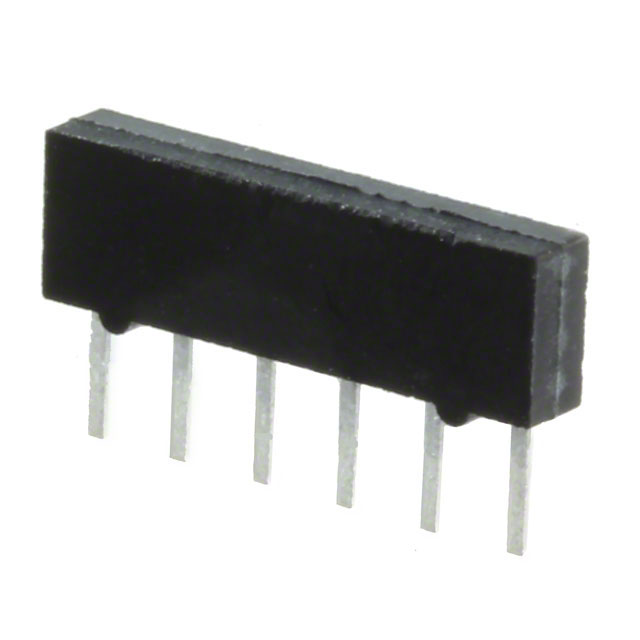

4306R Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES ARRAY 3 RES 1M OHM 6SIP
| Part | Temperature Coefficient | Resistor-Ratio-Drift | Number of Pins | Resistance (Ohms) | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Number of Resistors | Circuit Type | Power Per Element | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Resistance (Ohms) [custom] | Tolerance | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 ppm/°C | 50 ppm/°C | 6 | 1 MΩ | 6-SIP | 4.95 mm | 0.195 in | Through Hole | 3 | Isolated | 300 mW | 6-SIP | -55 C | 125 °C | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | |||
Bourns Inc. | 100 ppm/°C | 50 ppm/°C | 6 | 6-SIP | 4.95 mm | 0.195 in | Through Hole | 3 | Isolated | 300 mW | 6-SIP | -55 C | 125 °C | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | 68 kOhms | |||
Bourns Inc. | 100 ppm/°C | 50 ppm/°C | 6 | 6-SIP | 4.95 mm | 0.195 in | Through Hole | 5 | Bussed | 200 mW | 6-SIP | -55 C | 125 °C | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | 82 Ohms | |||
Bourns Inc. | 100 ppm/°C | 50 ppm/°C | 6 | 6-SIP | 4.95 mm | 0.195 in | Through Hole | 5 | Bussed | 200 mW | 6-SIP | -55 C | 125 °C | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | 68 kOhms | |||
Bourns Inc. | 100 ppm/°C | 50 ppm/°C | 6 | 5 kOhms | 6-SIP | 4.95 mm | 0.195 in | Through Hole | 5 | Bussed | 200 mW | 6-SIP | -55 C | 125 °C | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | |||
Bourns Inc. | 250 ppm/°C | 50 ppm/°C | 6 | 39 Ohms | 6-SIP | 4.95 mm | 0.195 in | Through Hole | 5 | Bussed | 200 mW | 6-SIP | -55 C | 125 °C | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | ±1Ohm | |||
Bourns Inc. | 100 ppm/°C | 50 ppm/°C | 6 | 6-SIP | 4.95 mm | 0.195 in | Through Hole | 8 | Dual Terminator | 200 mW | 6-SIP | -55 C | 125 °C | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | 180 Ohms 390 Ohms | |||
Bourns Inc. | 100 ppm/°C | 50 ppm/°C | 6 | 6-SIP | 4.95 mm | 0.195 in | Through Hole | 8 | 300 mW | 6-SIP | -55 C | 125 °C | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | 22k | ||||
Bourns Inc. | 100 ppm/°C | 50 ppm/°C | 6 | 6-SIP | 4.95 mm | 0.195 in | Through Hole | 5 | Bussed | 200 mW | 6-SIP | -55 C | 125 °C | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | 15k | |||
Bourns Inc. | 100 ppm/°C | 50 ppm/°C | 6 | 560 kOhms | 6-SIP | 4.95 mm | 0.195 in | Through Hole | 3 | Isolated | 300 mW | 6-SIP | -55 C | 125 °C | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % |
