EFB0512 Series

Catalog

FAN AXIAL 50X10MM 12VDC WIRE

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Current Rating (Amps)	Width [y]	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Voltage - Rated	Features	Static Pressure	Static Pressure	Termination	Fan Type	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Weight	Weight	Noise	Air Flow	Air Flow	Approval Agency	Size / Dimension	Size / Dimension [diameter]	Weight [custom]	Weight [custom]	Width [x]

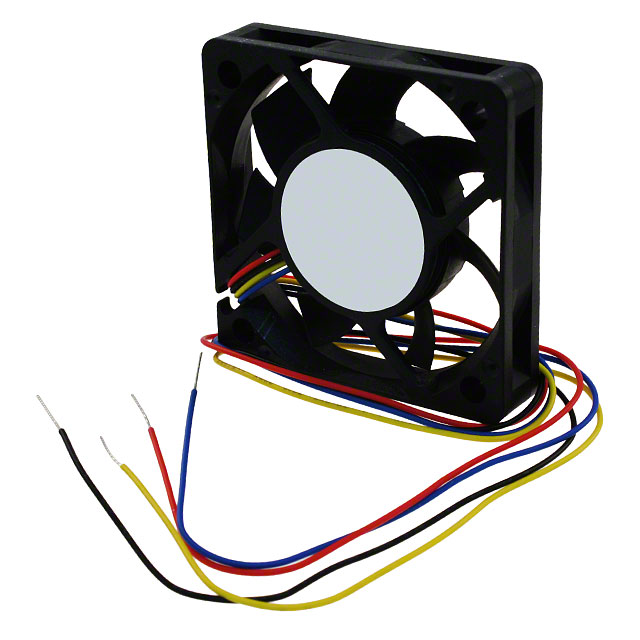

Delta Electronics EFB0512HA-TP42	70000 Hrs	10.8 VDC	12.6 VDC	Plastic	Plastic	100 mA	10 mm	5500 RPM	70 °C	-10 °C	Ball	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	41.6 Pa	0.167 in H2O	4 Wire Leads	Tubeaxial	1.2 W	50 mm	50 mm	0.057 lb	25.85 g	30 dB	11.4 CFM	0.319 mł/min	CE CSA UL VDE
Delta Electronics EFB0512HA	70000 Hrs	7 V	13.8 VDC	Plastic	Plastic	100 mA	10 mm	5500 RPM	70 °C	-10 °C	Ball	12 VDC		41.6 Pa	0.167 in H2O	2 Wire Leads	Tubeaxial	1.2 W	50 mm	50 mm	0.057 lb	25.85 g	30 dB	11.4 CFM	0.319 mł/min	CE CSA UL VDE

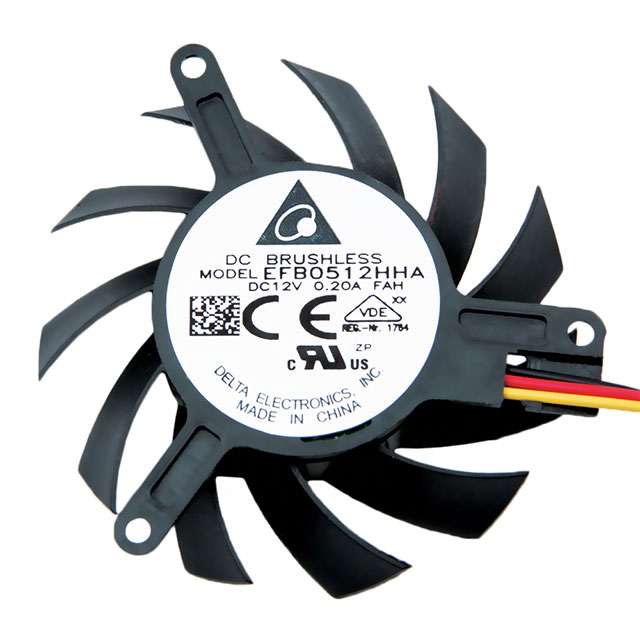

Delta Electronics EFB0512HHAFAH	40 °C 50000 Hrs	5 VDC	13.2 VDC		Plastic			5000 RPM	70 °C	-10 °C	Ball	12 VDC	Locked Rotor Protection Speed Sensor (Tach)	14 Pa	0.056 in H2O	3 Wire Leads	Frameless Tubeaxial	1.56 W					29.5 dB(A)	7.5 CFM	0.21 mł/min	CE cURus VDE	Round	45 mm	12.25 g	0.027 lb	9.8 mm
Delta Electronics EFB0512HHA	70000 Hrs	7 V	13.8 VDC	Plastic	Plastic	150 mA	10 mm	6500 RPM	70 °C	-10 °C	Ball	12 VDC		57.8 Pa	0.232 in H2O	2 Wire Leads	Tubeaxial	1.8 W	50 mm	50 mm	0.057 lb	25.85 g	33.5 dB(A)	13.6 CFM	0.381 mł/min	CE CSA UL VDE

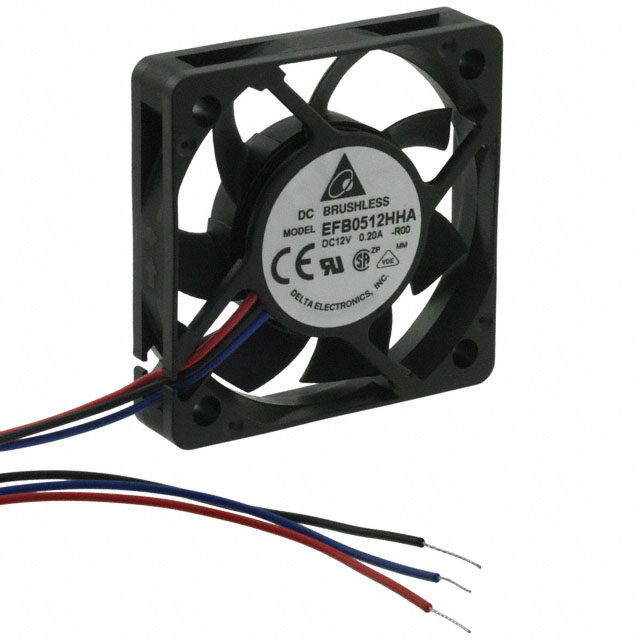

Delta Electronics EFB0512HHA-R00	70000 Hrs	7 V	13.8 VDC	Plastic	Plastic	150 mA	10 mm	6500 RPM	70 °C	-10 °C	Ball	12 VDC	Locked Rotor Sensor	57.8 Pa	0.232 in H2O	3 Wire Leads	Tubeaxial	1.8 W	50 mm	50 mm	0.057 lb	25.85 g	33.5 dB(A)	13.6 CFM	0.381 mł/min	CE CSA UL VDE

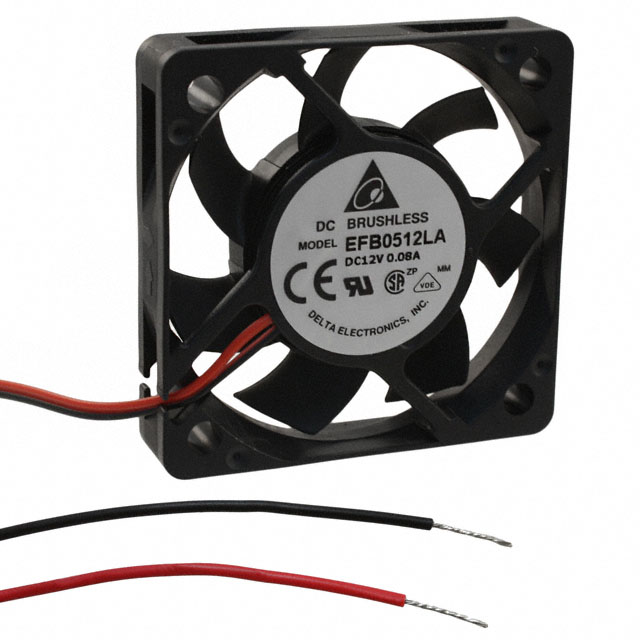

Delta Electronics EFB0512LA	70000 Hrs	7 V	13.8 VDC	Plastic	Plastic	50 mA	10 mm	3500 RPM	70 °C	-10 °C	Ball	12 VDC		17 Pa	0.068 in H2O	2 Wire Leads	Tubeaxial	600 mW	50 mm	50 mm	0.057 lb	25.85 g	18 dB(A)	7.5 CFM	0.21 mł/min	CE CSA UL VDE

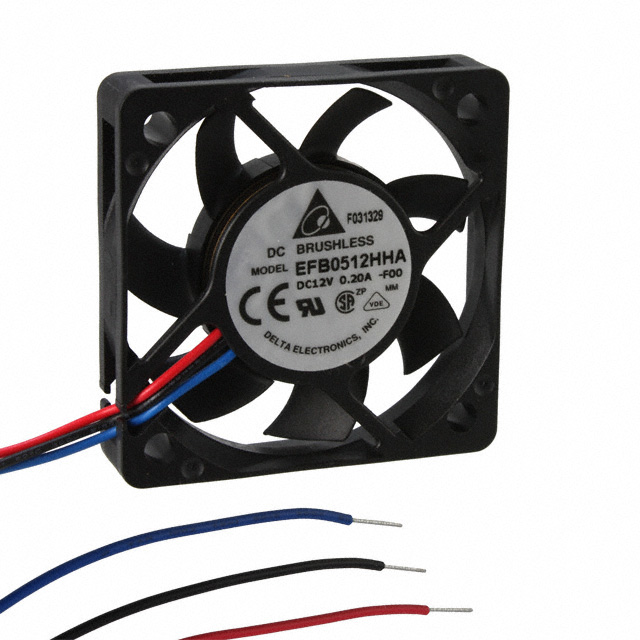

Delta Electronics EFB0512HHA-F00	70000 Hrs	7 V	13.8 VDC	Plastic	Plastic	150 mA	10 mm	6500 RPM	70 °C	-10 °C	Ball	12 VDC	Locked Rotor Protection Speed Sensor (Tach)	57.8 Pa	0.232 in H2O	3 Wire Leads	Tubeaxial	1.8 W	50 mm	50 mm	0.057 lb	25.85 g	33.5 dB(A)	13.6 CFM	0.381 mł/min	CE CSA UL VDE

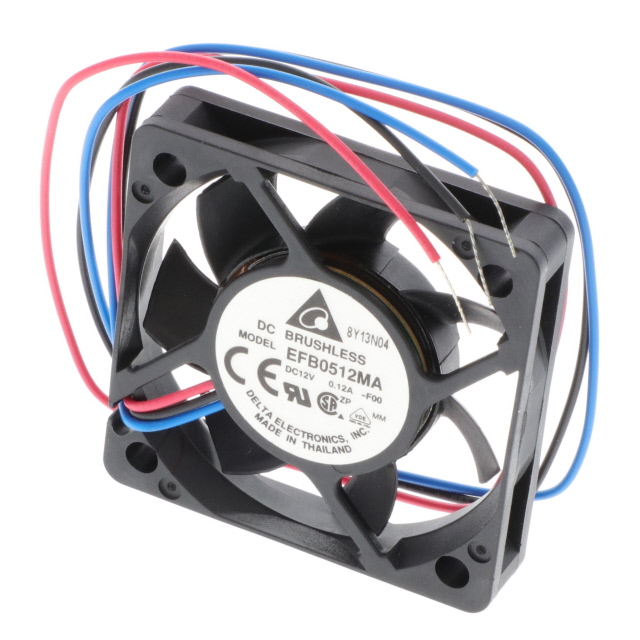

Delta Electronics EFB0512MA-F00	70000 Hrs	7 V	13.8 VDC	Plastic	Plastic		10 mm	4500 RPM	70 °C	-10 °C	Ball	12 VDC	Locked Rotor Protection Speed Sensor (Tach)	28.1 Pa	0.113 in H2O	3 Wire Leads	Tubeaxial	960 mW	50 mm	50 mm	0.057 lb	25.85 g	25 dB(A)	9.2 CFM	0.258 m³/min	CE CSA UL VDE
