R14100 Series

Catalog

BNC / STRAIGHT PLUG CLAMP TYPE C

Part	Dielectric Material	Body Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Body Finish	Mounting Type	Impedance	Contact Termination	Frequency - Max [Max]	Connector Type	Connector Style	Center Contact Material	Shield Termination	Housing Color	Fastening Type	Cable Group	Number of Ports	Mating Cycles	Cable Group

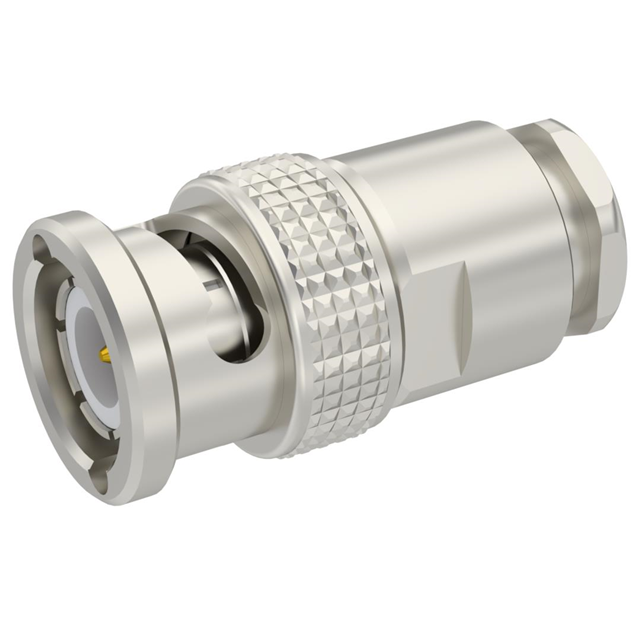

Radiall USA, Inc. R141008000	Polytetrafluoroethylene (PTFE)	Brass	Gold	-65 ░C	165 °C	500 V	Nickel	Free Hanging (In-Line)	50 Ohms	Solder	4 GHz	Plug Male Pin	BNC	Brass	Clamp	Silver	Bayonet Lock	141 142 223 400 RG-58	1
Radiall USA, Inc. R141008000W	Polytetrafluoroethylene (PTFE)	Brass	Gold	-65 ░C	165 °C	500 V	Nickel	Free Hanging (In-Line)	50 Ohms	Solder	4 GHz	Plug Male Pin	BNC	Brass	Clamp	Silver	Bayonet Lock	141 142 223 400 RG-58	1	500

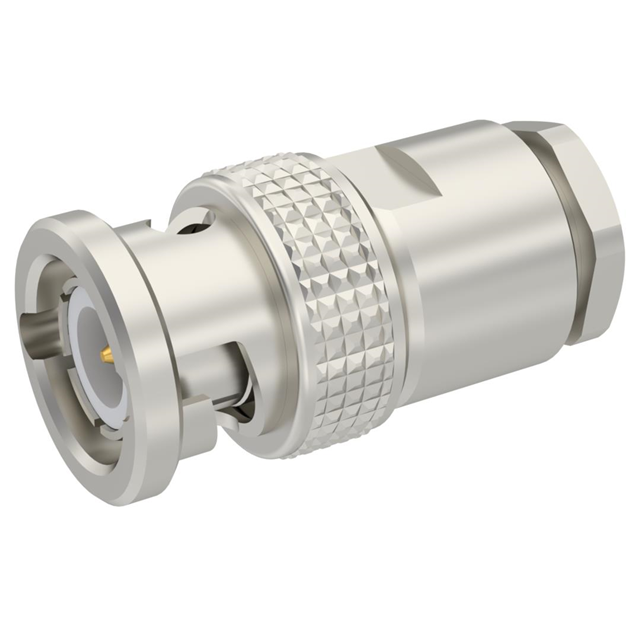

Radiall USA, Inc. R141003000	Polytetrafluoroethylene (PTFE)	Brass	Gold	-65 ░C	165 °C	500 V	Nickel	Free Hanging (In-Line)	50 Ohms	Solder	1.5 GHz	Plug Male Pin	BNC	Brass	Clamp	Silver	Bayonet Lock	RG-178	1	500	196

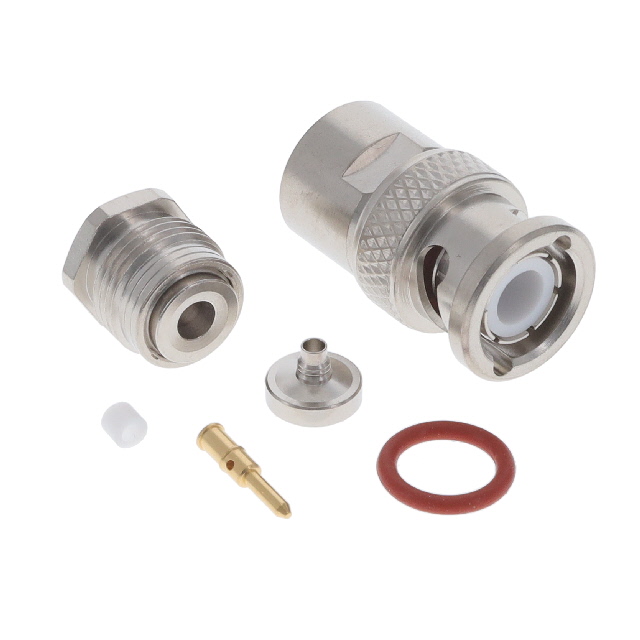

Radiall USA, Inc. R141004000W	Polytetrafluoroethylene (PTFE)	Brass	Gold	-65 ░C	165 °C	500 V	Nickel	Free Hanging (In-Line)	50 Ohms	Solder	4 GHz	Plug Male Pin	BNC	Brass	Clamp	Silver	Bayonet Lock	179 316 RD-316 RG-174	1	500
Radiall USA, Inc. R141007000W	Polytetrafluoroethylene (PTFE)	Brass	Gold	-65 ░C	165 °C	500 V	Nickel	Free Hanging (In-Line)	50 Ohms	Solder	4 GHz	Plug Male Pin	BNC	Brass	Clamp	Silver	Bayonet Lock	RG-58	1	500	141

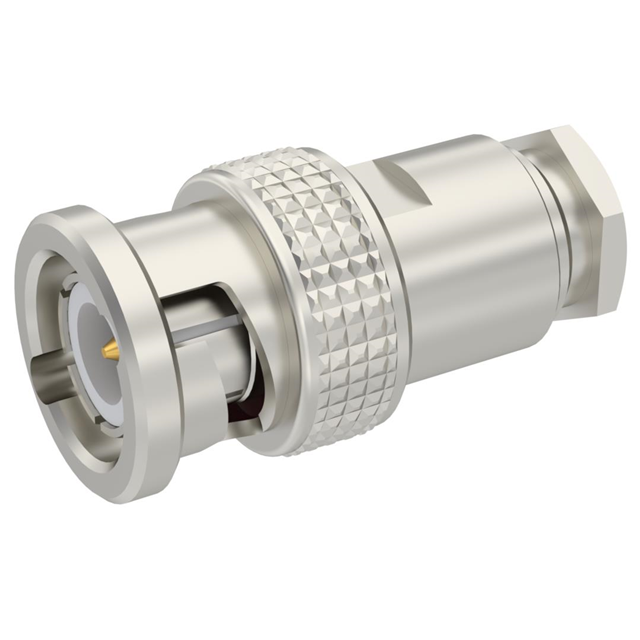

Radiall USA, Inc. R141007000	Polytetrafluoroethylene (PTFE)	Brass	Gold	-65 ░C	165 °C	500 V	Nickel	Free Hanging (In-Line)	50 Ohms	Solder	4 GHz	Plug Male Pin	BNC	Brass	Clamp	Silver	Bayonet Lock	RG-58	1	500	141
Radiall USA, Inc. R141005000	Polytetrafluoroethylene (PTFE)	Brass	Gold	-65 ░C	165 °C	500 V	Nickel	Free Hanging (In-Line)	50 Ohms	Solder	4 GHz	Plug Male Pin	BNC	Brass	Clamp	Silver	Bayonet Lock	PPD	1	500

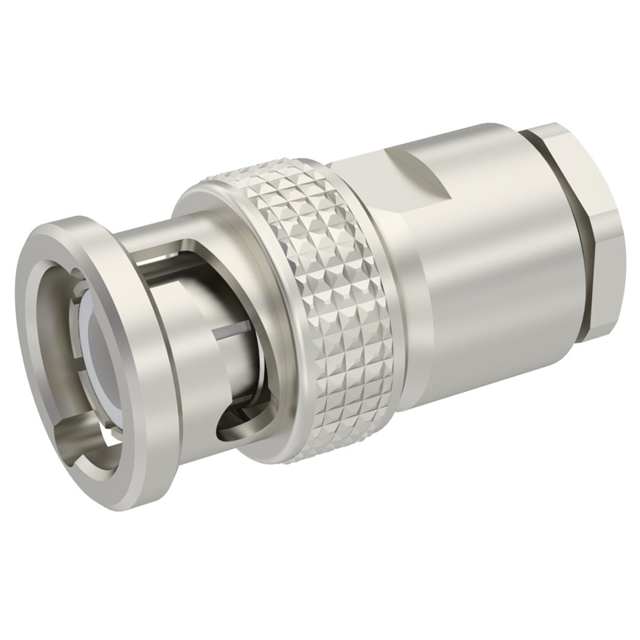

Radiall USA, Inc. R141004000	Polytetrafluoroethylene (PTFE)	Brass	Gold	-65 ░C	165 °C	500 V	Nickel	Free Hanging (In-Line)	50 Ohms	Solder	4 GHz	Plug Male Pin	BNC	Brass	Clamp	Silver	Bayonet Lock	179 316 RD-316 RG-174	1	500
Radiall USA, Inc. R141009000	Polytetrafluoroethylene (PTFE)	Brass	Gold	-65 ░C	165 °C	500 V	Nickel	Free Hanging (In-Line)	50 Ohms	Solder	4 GHz	Plug Male Pin	BNC	Brass	Clamp	Silver	Bayonet Lock	141 142 223 400 RG-58	1	500
Radiall USA, Inc. R141007161W	Polytetrafluoroethylene (PTFE)	Brass	Gold	-35 °C	70 °C	500 V	Nickel	Free Hanging (In-Line)	50 Ohms	Solder	1.5 GHz	Plug Male Pin	BNC	Brass	Clamp	Silver	Bayonet Lock	RG-58	1		141
