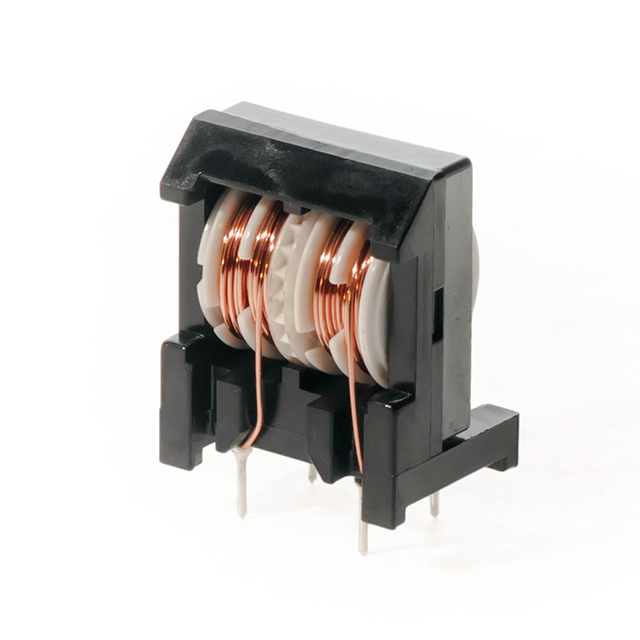

SSHB10H Series

Manufacturer: KEMET

Catalog

CMC 23MH 400MA 2LN TH

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Max) [Max]	Package / Case	Height (Max) [z]	Height (Max) [z]	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	Voltage Rating - AC	Number of Lines	DC Resistance (DCR) (Max)

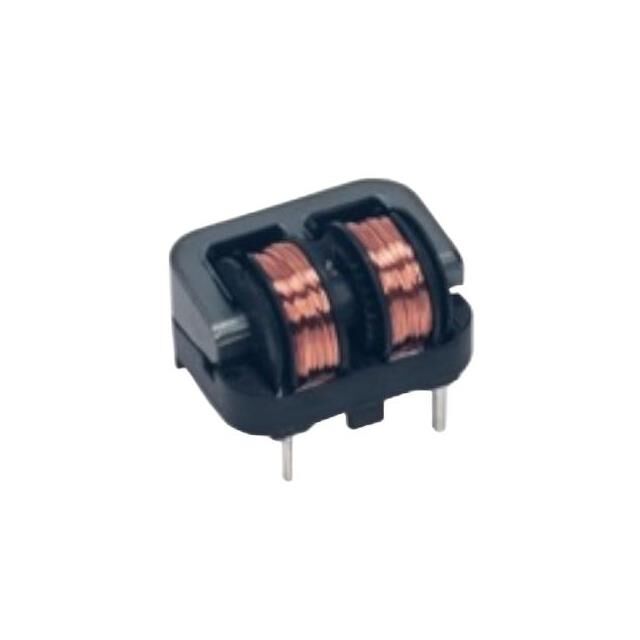

KEMET SSHB10H-04320	Through Hole	0.669 "	17 mm	0.866 "	22 mm	-25 °C	130 °C	400 mA	Vertical 4 PC Pin	0.61 in	15.5 mm	10 kHz 23 mH	2.7 Ohm	250 V	2
KEMET SSHB10H-08082	Through Hole	0.669 "	17 mm	0.866 "	22 mm	-25 °C	130 °C	800 mA	Vertical 4 PC Pin	0.61 in	15.5 mm	8.2 mH	640 mOhm	250 V	2
KEMET SSHB10HS-R30015	Through Hole	0.669 "	17 mm	0.866 "	22 mm	-25 °C	120 °C	3 A	Vertical 4 PC Pin	0.61 in	15.5 mm	1.5 mH 10 kHz	60 mOhm	250 V	2
KEMET SSHB10H-11054	Through Hole	0.669 "	17 mm	0.866 "	22 mm	-25 °C	130 °C	1.1 A	Vertical 4 PC Pin	0.61 in	15.5 mm	5.4 mH	390 mOhm	250 V	2
KEMET SSHB10HS-22011	Through Hole	0.669 "	17 mm	0.866 "	22 mm	-25 °C	130 °C	2.2 A	Vertical 4 PC Pin	0.61 in	15.5 mm	1.1 mH		250 V	2	110 mOhm
KEMET SSHB10HS-05177	Through Hole	0.669 "	17 mm	0.866 "	22 mm	-25 °C	130 °C	500 mA	Vertical 4 PC Pin	0.61 in	15.5 mm	17.7 mH	1.55 Ohm	250 V	2
KEMET SSHB10H-R13088	Through Hole	0.669 "	17 mm	0.866 "	22 mm	-25 °C	120 °C	1.3 A	Vertical 4 PC Pin	0.61 in	15.5 mm	8.8 mH 10 kHz	280 mOhm	250 V	2
KEMET SSHB10H-R10151	Through Hole	0.669 "	17 mm	0.866 "	22 mm	-25 °C	120 °C	1 A	Vertical 4 PC Pin	0.61 in	15.5 mm	15.1 mH	480 mOhm	250 V	2

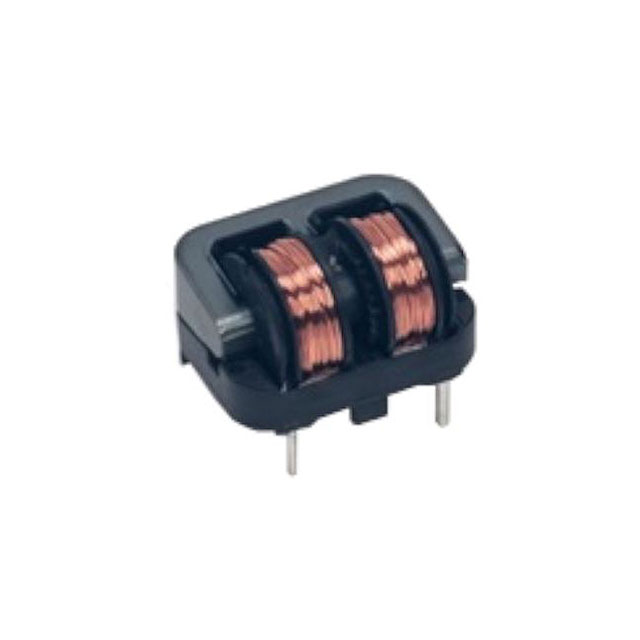

KEMET SSHB10H-R08194	Through Hole	0.669 "	17 mm	0.866 "	22 mm	-25 °C	120 °C	800 mA	Vertical 4 PC Pin	0.61 in	15.5 mm	19.4 mH	640 mOhm	250 V	2
KEMET SSHB10H-R30017	Through Hole	0.669 "	17 mm	0.866 "	22 mm	-25 °C	120 °C	3 A	Vertical 4 PC Pin	0.61 in	15.5 mm	1.7 mH 10 kHz		250 V	2	70 mOhm
