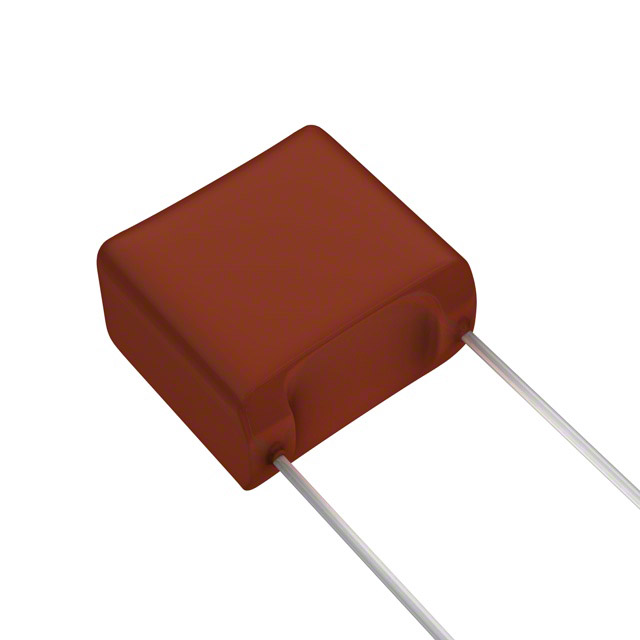

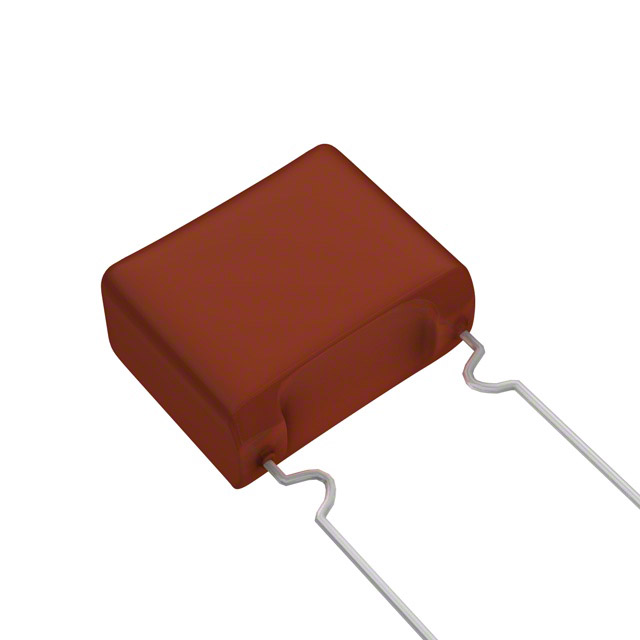

ECW-F2185 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
CAP FILM 1.8UF 3% 250VDC RADIAL
| Part | Lead Spacing | Lead Spacing | Dielectric Material | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Capacitance | Applications | Voltage Rating - DC | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | Voltage Rating - AC | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 15 mm | 0.591 in | Metallized Polypropylene (PP) | Radial | -40 °C | 105 ░C | PC Pins | 11.4 mm | 0.74 " | 0.449 " | 18.8 mm | Through Hole | 1.8 µF | High Frequency Switching | 250 V | 3 % | 0.709 " | 18 mm | ||
 Panasonic Industrial Automation Sales | 15 mm | 0.591 in | Metallized Polypropylene (PP) | Radial | -40 °C | 105 ░C | PC Pins | 11.4 mm | 0.74 " | 0.449 " | 18.8 mm | Through Hole | 1.8 µF | High Frequency Switching | 250 V | 3 % | 0.709 " | 18 mm | ||
Panasonic Industrial Automation Sales | 15 mm | 0.591 in | Metallized Polypropylene (PP) | Radial | -40 °C | 105 ░C | PC Pins | 11.4 mm | 0.74 " | 0.449 " | 18.8 mm | Through Hole | 1.8 µF | High Frequency Switching | 250 V | 5 % | 0.709 " | 18 mm | 125 V | |
Panasonic Industrial Automation Sales | 7.5 mm | 0.295 in | Metallized Polypropylene (PP) | Radial | -40 °C | 105 ░C | PC Pins | 11.4 mm | 0.74 " | 0.449 " | 18.8 mm | Through Hole | 1.8 µF | High Frequency Switching | 250 V | 3 % | 23 mm | 0.906 in | ||
Panasonic Industrial Automation Sales | 15 mm | 0.591 in | Metallized Polypropylene (PP) | Radial | -40 °C | 105 ░C | PC Pins | 11.4 mm | 0.74 " | 0.449 " | 18.8 mm | Through Hole | 1.8 µF | High Frequency Switching | 250 V | 5 % | 0.709 " | 18 mm |
