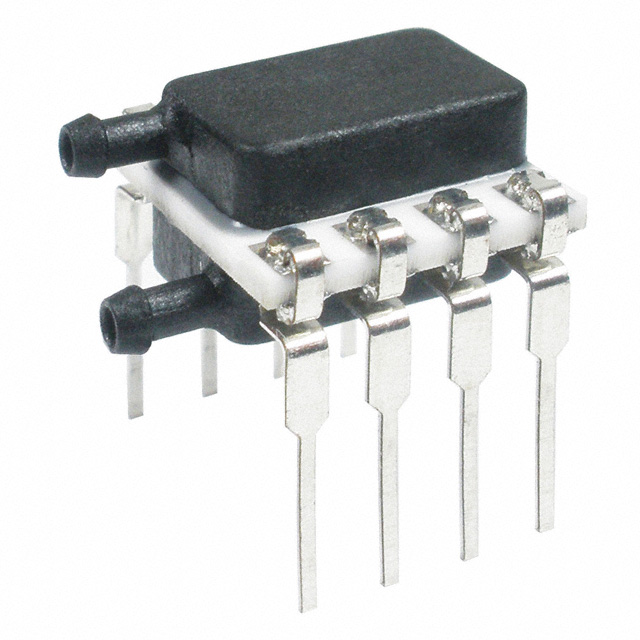

SSCDRRD Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 0.04PSID 0.08" 4.5V 8DIP
| Part | Pressure Type | Operating Pressure | Operating Pressure | Applications | Mounting Type | Port Style | Supplier Device Package | Features | Package / Case | Package / Case | Package / Case | Termination Style | Voltage - Supply [Max] | Voltage - Supply [Min] | Port Size | Port Size | Port Size | Output Type | Output [Min] | Output [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Accuracy | Maximum Pressure | Maximum Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Differential | 0.04 PSI | 0.25 kPa | Board Mount | Through Hole | Barbed | 8-DIP | Amplified Output Temperature Compensated | 8-DIP Dual Ports Same Side | 13.3 mm | 0.524 " | PC Pin | 5.05 V | 4.95 V | 1.93 mm | Dual Male Tube | 0.08 " | Analog Voltage | 0.5 V | 4.5 V | 85 °C | -40 °C | 0.25 % | ||
Honeywell Sensing and Productivity Solutions | Differential | 0.36 PSI | 2.49 kPa | Board Mount | Through Hole | Barbed | 8-DIP | Amplified Output Temperature Compensated | 8-DIP Dual Ports Same Side | 13.3 mm | 0.524 " | PC Pin | 5.05 V | 4.95 V | 1.93 mm | Dual Male Tube | 0.08 " | Analog Voltage | 0.5 V | 4.5 V | 85 °C | -40 °C | 0.25 % | 87.21 kPa | 12.65 PSI |
