3750 Series

Catalog

BINDING POST, 3750 SERIES, 15 A, 2.5 KV, GOLD PLATED CONTACTS, PANEL MOUNT, RED

Part	Head Size [diameter]	Head Size [diameter]	Cross Hole Diameter	Cross Hole Diameter	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Nut Material	Voltage Rating	Nut Plating	Material - Insulation	Plating - Body	Termination Thread	Type	Color	Termination	Material - Body	Current Rating (Amps)
Pomona Electronics 3750-2	0.44 "	11.18 mm	2.43 mm	0.096 in	0.25 "	0.07 "	6.35 mm	1.77 mm	Brass	33 VAC/DC 70 VDC	Nickel	Polycarbonate (PC)	Gold	8-32	Standard	Red	Threaded and Turret	Brass	15 A

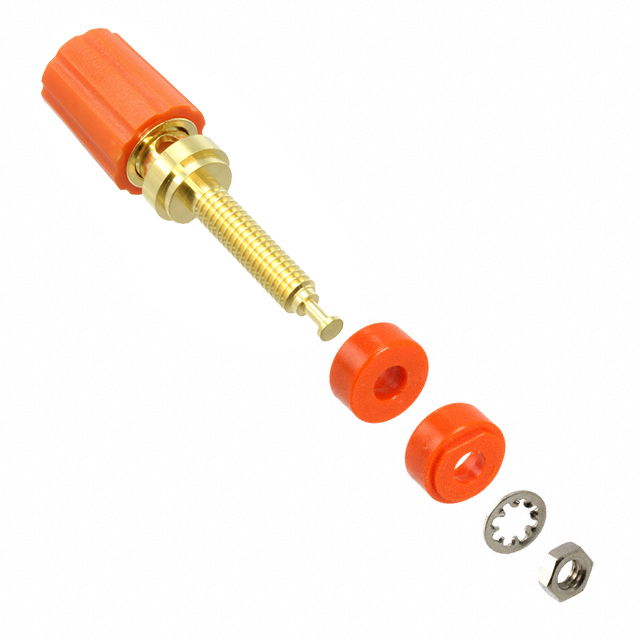

Pomona Electronics 3750-3	0.44 "	11.18 mm	2.43 mm	0.096 in	0.25 "	0.07 "	6.35 mm	1.77 mm	Brass	33 VAC/DC 70 VDC	Nickel	Polycarbonate (PC)	Gold	8-32	Standard		Threaded and Turret	Brass	15 A
Pomona Electronics 3750-9	0.44 "	11.18 mm	2.43 mm	0.096 in	0.25 "	0.07 "	6.35 mm	1.77 mm	Brass	33 VAC/DC 70 VDC	Nickel	Polycarbonate (PC)	Gold	8-32	Standard	White	Threaded and Turret	Brass	15 A
Pomona Electronics 3750-1	0.44 "	11.18 mm	2.43 mm	0.096 in	0.25 "	0.07 "	6.35 mm	1.77 mm	Brass	33 VAC/DC 70 VDC	Nickel	Polycarbonate (PC)	Gold	8-32	Standard	Brown	Threaded and Turret	Brass	15 A
Pomona Electronics 3750-8	0.44 "	11.18 mm	2.43 mm	0.096 in	0.25 "	0.07 "	6.35 mm	1.77 mm	Brass	33 VAC/DC 70 VDC	Nickel	Polycarbonate (PC)	Gold	8-32	Standard	Gray	Threaded and Turret	Brass	15 A

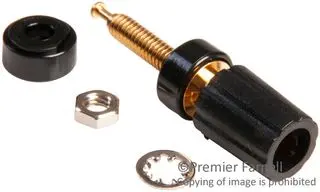

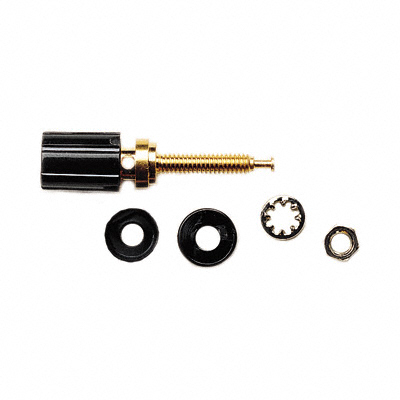

Pomona Electronics 3750-0	0.44 "	11.18 mm	2.43 mm	0.096 in	0.25 "	0.07 "	6.35 mm	1.77 mm	Brass	33 VAC/DC 70 VDC	Nickel	Polycarbonate (PC)	Gold	8-32	Standard	Black	Threaded and Turret	Brass	15 A

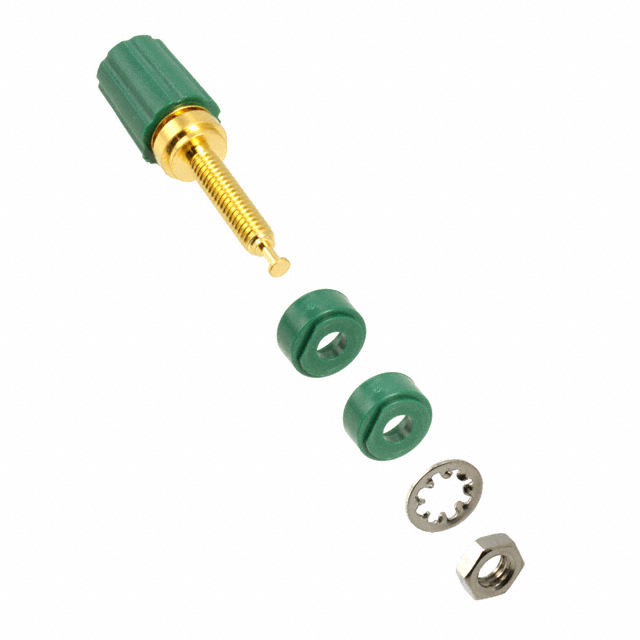

Pomona Electronics 3750-5	0.44 "	11.18 mm	2.43 mm	0.096 in	0.25 "	0.07 "	6.35 mm	1.77 mm	Brass	33 VAC/DC 70 VDC	Nickel	Polycarbonate (PC)	Gold	8-32	Standard	Green	Threaded and Turret	Brass	15 A
Pomona Electronics 3750-6	0.44 "	11.18 mm	2.43 mm	0.096 in	0.25 "	0.07 "	6.35 mm	1.77 mm	Brass	33 VAC/DC 70 VDC	Nickel	Polycarbonate (PC)	Gold	8-32	Standard	Blue	Threaded and Turret	Brass	15 A

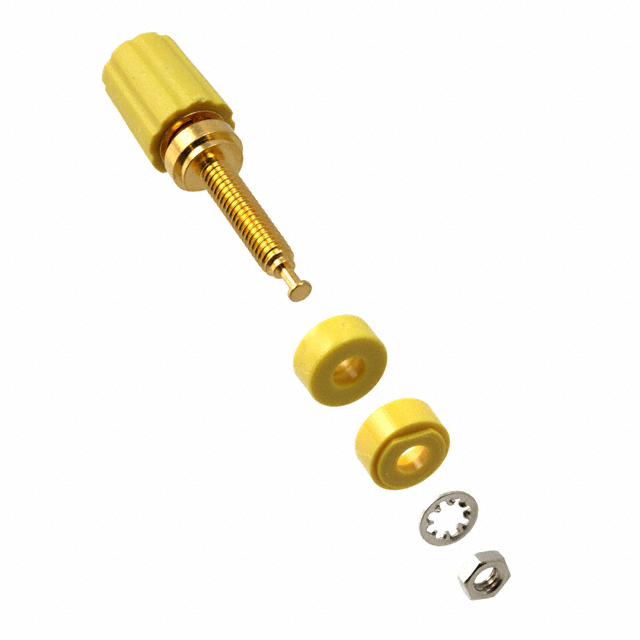

Pomona Electronics 3750-4	0.44 "	11.18 mm	2.43 mm	0.096 in	0.25 "	0.07 "	6.35 mm	1.77 mm	Brass	33 VAC/DC 70 VDC	Nickel	Polycarbonate (PC)	Gold	8-32	Standard	Yellow	Threaded and Turret	Brass	15 A
