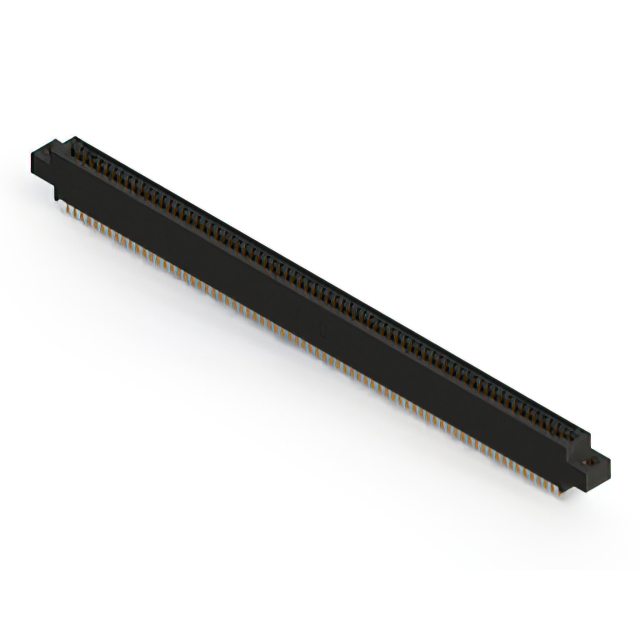

895-144 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 144POS 0.100

...

Part	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row [custom]	Card Type	Termination Rows [custom]	Material - Insulation	Gender	Read Out	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Finish	Termination	Pitch	Pitch	Contact Material	Number of Positions	Features
EDAC Inc. 895-144-559-803	0.07 in 1.78 mm	0.054 in 1.37 mm	72	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	Female	Dual	Black	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	2	125 °C	-40 C	Right Angle Through Hole	0.25 Ám	10 Áin	Cantilever	Gold	Solder	0.1 "	2.54 mm	Copper Alloy	144
EDAC Inc. 895-144-555-808	0.07 in 1.78 mm	0.054 in 1.37 mm	72	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	Female	Dual	Black	4-40 Threaded Insert Top Mount Opening			2	125 °C	-40 C	Board Edge Straddle Mount	0.25 Ám	10 Áin	Cantilever	Gold	Solder	0.1 "	2.54 mm	Copper Alloy	144	Card Extender
EDAC Inc. 895-144-524-507	0.07 in 1.78 mm	0.054 in 1.37 mm	72	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	Female	Dual	Black	M3 Threaded Insert Top Mount Opening			2	125 °C	-40 C	Through Hole	0.25 Ám	10 Áin	Cantilever	Gold	Solder	0.1 "	2.54 mm	Copper Alloy	144
EDAC Inc. 895-144-524-808	0.07 in 1.78 mm	0.054 in 1.37 mm	72	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	Female	Dual	Black	4-40 Threaded Insert Top Mount Opening			2	125 °C	-40 C	Through Hole	0.25 Ám	10 Áin	Cantilever	Gold	Solder	0.1 "	2.54 mm	Copper Alloy	144
EDAC Inc. 895-144-540-802	0.07 in 1.78 mm	0.054 in 1.37 mm	72	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	Female	Dual	Black		0.128 "	3.25 mm	2	125 °C	-40 C	Through Hole	0.25 Ám	10 Áin	Cantilever	Gold	Wire Wrap	0.1 "	2.54 mm	Copper Alloy	144
EDAC Inc. 895-144-520-804	0.07 in 1.78 mm	0.054 in 1.37 mm	72	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	Female	Dual	Black		0.156 "	3.96 mm	2	125 °C	-40 C	Through Hole	0.25 Ám	10 Áin	Cantilever	Gold	Solder	0.1 "	2.54 mm	Copper Alloy	144
EDAC Inc. 895-144-559-212	0.07 in 1.78 mm	0.054 in 1.37 mm	72	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	Female	Dual	Black	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	2	125 °C	-40 C	Right Angle Through Hole	0.25 Ám	10 Áin	Cantilever	Gold	Solder	0.1 "	2.54 mm	Copper Alloy	144
EDAC Inc. 895-144-525-804	0.07 in 1.78 mm	0.054 in 1.37 mm	72	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	Female	Dual	Black		0.156 "	3.96 mm	2	125 °C	-40 C	Through Hole	0.25 Ám	10 Áin	Cantilever	Gold	Solder	0.1 "	2.54 mm	Copper Alloy	144
EDAC Inc. 895-144-559-202	0.07 in 1.78 mm	0.054 in 1.37 mm	72	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	Female	Dual	Black	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	2	125 °C	-40 C	Right Angle Through Hole	0.25 Ám	10 Áin	Cantilever	Gold	Solder	0.1 "	2.54 mm	Copper Alloy	144
EDAC Inc. 895-144-559-804	0.07 in 1.78 mm	0.054 in 1.37 mm	72	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	Female	Dual	Black		0.156 "	3.96 mm	2	125 °C	-40 C	Right Angle Through Hole	0.25 Ám	10 Áin	Cantilever	Gold	Solder	0.1 "	2.54 mm	Copper Alloy	144
