2201/18 Series

Catalog

HOOK-UP STRND 18AWG GRN

Part	Voltage	Jacket (Insulation) Diameter	Jacket (Insulation) Thickness	Conductor Strand Count	Conductor Strand Gauge	Conductor Material	Length	Jacket (Insulation) Material	Jacket Color	Ratings	Qualification	Features	Wire Gauge	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)
Daburn Electronics 2201/18GR-1000	600 V	0.07 in	0.01 in	19	30 AWG	Copper Tinned	1000 ft	Irradiated Poly-Vinyl Chloride (XLPVC)	Green	1429 Style UL	MIL-W-16878 Type B	Abrasion Resistant	18 AWG	Hook-Up	-55 °C	105 °C
Daburn Electronics 2201/18BU-101	600 V	0.07 in	0.01 in	19	30 AWG	Copper Tinned	100 ft	Irradiated Poly-Vinyl Chloride (XLPVC)	Blue	1429 Style UL	MIL-W-16878 Type B	Abrasion Resistant	18 AWG	Hook-Up	-55 °C	105 °C

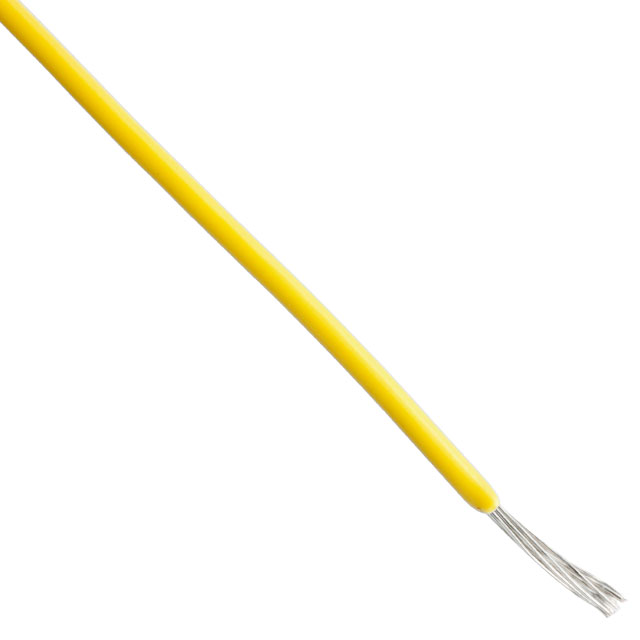

Daburn Electronics 2201/18YL-1000	600 V	0.07 in	0.01 in	19	30 AWG	Copper Tinned	1000 ft	Irradiated Poly-Vinyl Chloride (XLPVC)	Yellow	1429 Style UL	MIL-W-16878 Type B	Abrasion Resistant	18 AWG	Hook-Up	-55 °C	105 °C

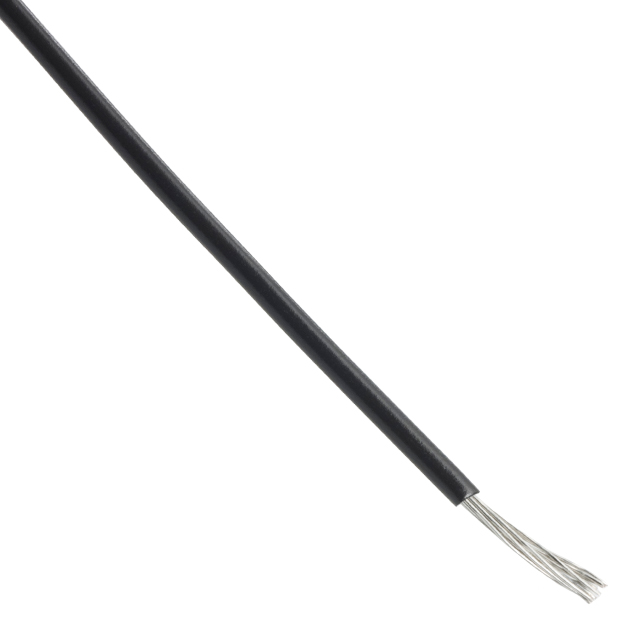

Daburn Electronics 2201/18BK-1000	600 V	0.07 in	0.01 in	19	30 AWG	Copper Tinned	1000 ft	Irradiated Poly-Vinyl Chloride (XLPVC)	Black	1429 Style UL	MIL-W-16878 Type B	Abrasion Resistant	18 AWG	Hook-Up	-55 °C	105 °C

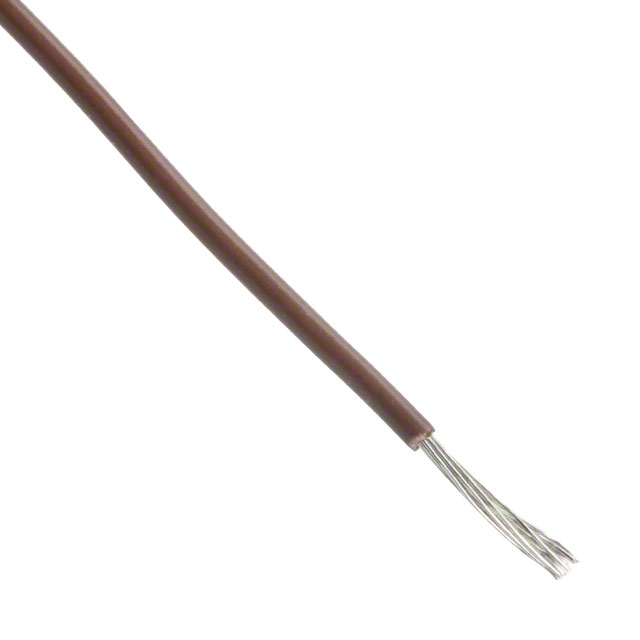

Daburn Electronics 2201/18BR-100	600 V	0.07 in	0.01 in	19	30 AWG	Copper Tinned	100 ft	Irradiated Poly-Vinyl Chloride (XLPVC)	Brown	1429 Style UL	MIL-W-16878 Type B	Abrasion Resistant	18 AWG	Hook-Up	-55 °C	105 °C
Daburn Electronics 2201/18GY-100	600 V	0.07 in	0.01 in	19	30 AWG	Copper Tinned	100 ft	Irradiated Poly-Vinyl Chloride (XLPVC)	Gray	1429 Style UL	MIL-W-16878 Type B	Abrasion Resistant	18 AWG	Hook-Up	-55 °C	105 °C
Daburn Electronics 2201/18OR-1000	600 V	0.07 in	0.01 in	19	30 AWG	Copper Tinned	1000 ft	Irradiated Poly-Vinyl Chloride (XLPVC)	Orange	1429 Style UL	MIL-W-16878 Type B	Abrasion Resistant	18 AWG	Hook-Up	-55 °C	105 °C
Daburn Electronics 2201/18YL-100	600 V	0.07 in	0.01 in	19	30 AWG	Copper Tinned	100 ft	Irradiated Poly-Vinyl Chloride (XLPVC)	Yellow	1429 Style UL	MIL-W-16878 Type B	Abrasion Resistant	18 AWG	Hook-Up	-55 °C	105 °C
Daburn Electronics 2201/18RD-100	600 V	0.07 in	0.01 in	19	30 AWG	Copper Tinned	100 ft	Irradiated Poly-Vinyl Chloride (XLPVC)	Red	1429 Style UL	MIL-W-16878 Type B	Abrasion Resistant	18 AWG	Hook-Up	-55 °C	105 °C
Daburn Electronics 2201/18OR-100	600 V	0.07 in	0.01 in	19	30 AWG	Copper Tinned	100 ft	Irradiated Poly-Vinyl Chloride (XLPVC)	Orange	1429 Style UL	MIL-W-16878 Type B	Abrasion Resistant	18 AWG	Hook-Up	-55 °C	105 °C
