SGA18U12 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

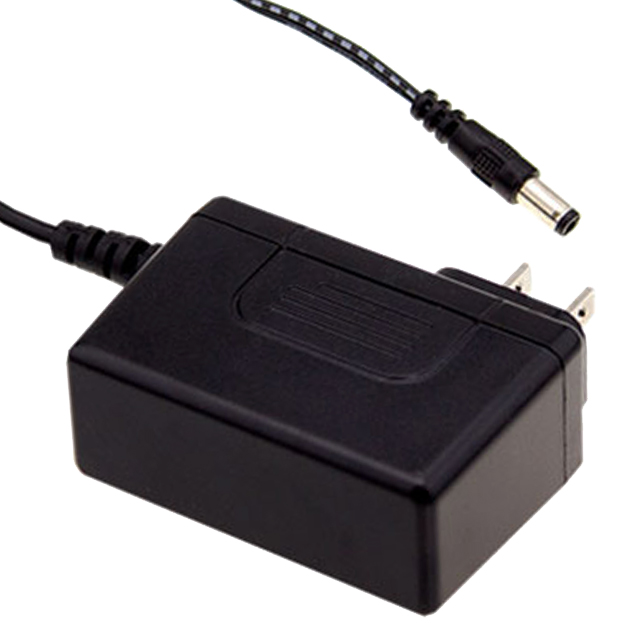

AC/DC WALL MOUNT ADAPTER 12V 18W
| Part | Voltage - Output | Cord Length | Cord Length | Current - Output (Max) [Max] | Polarization | No Load Power Consumption | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Applications | Form | Output Connector [x] | Output Connector [diameter] | Output Connector | Input Connector | Region Utilized | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Power (Watts) | Input Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 12 V | 1 m | 39.4 in | 1.5 A | Positive Center | 75 mW | 1.26 in | 47.5 mm | 2.97 in | 32 mm | 1.87 in | 75.5 mm | ITE (Commercial) | Wall Mount | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | NEMA 1-15P | North America | 264 VAC | 90 VAC | -20 ░C | 60 °C | CB cULus | 18 W | Fixed Blade | Level VI |
